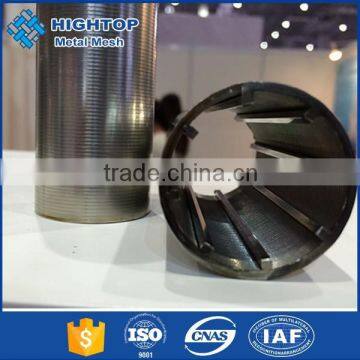

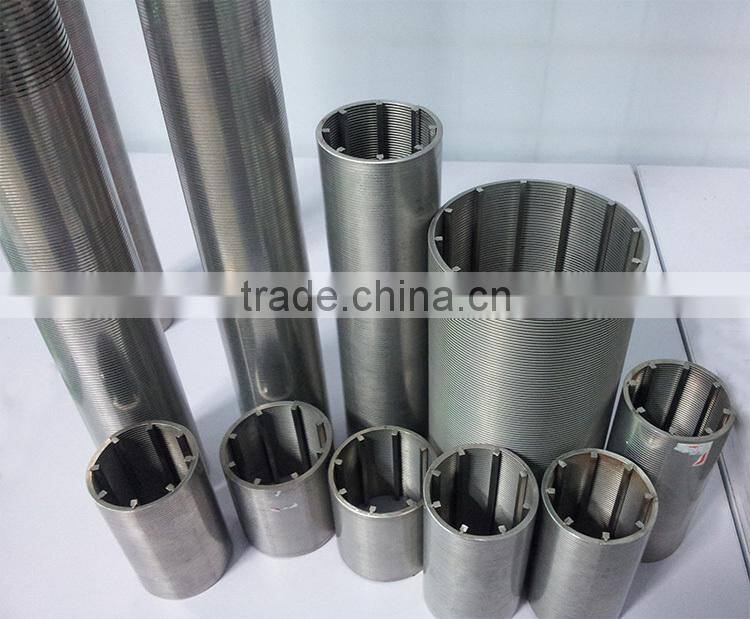

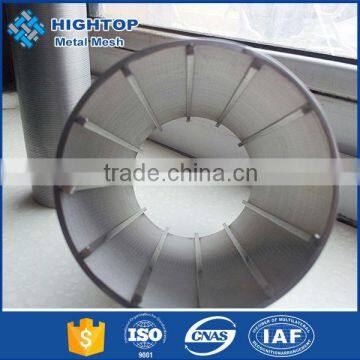

Wedge Wire Screen Cylinder filter Johnson Screens

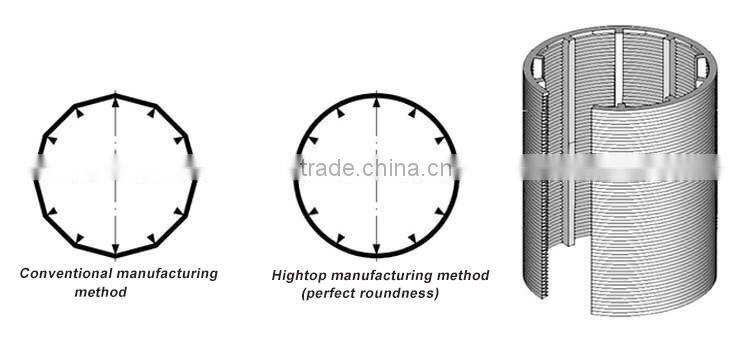

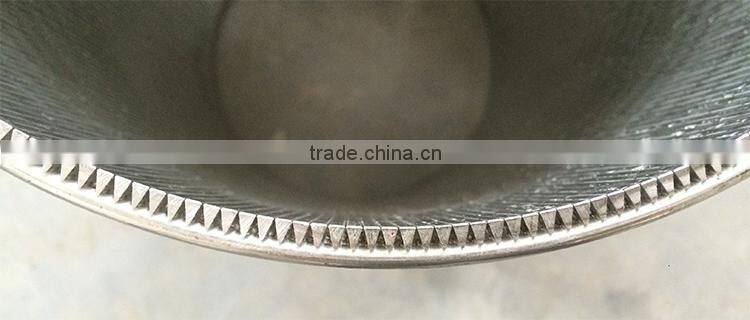

Wedge wire screen have triangular profiles and can be constructed with various slot dimensions. They are used for architectural, industrial and naval purposes. The industries also use wedge wire screens in filtration systems, since they are very easy to clean thanks to their triangular profiles. Stainless steel is the most suitable material for constructions that require resistance to time and environmental conditions. Hightop offers the choice between various slot dimensions according to our customer’s needs. All necessary accessories needed for the installation of this product can be provided as well.
Profile combinations
| Surface profiles | Support profiles | Min.diam. in mm | Min. slot width in mm |
| 10S | Q25 | 21 | 0.10 |
| 11S | Q20 or Q25 | 23 | 0.030 |
| 12S | 22S | 30 | 0.050 |
| 12S | Q25 | 23 | 0.030 |
| 12S | Q35 | 30 | 0.050 |
| 18S | 22S or Q35 | 30 | 0.050 |
| 18S | Q25 | 25 | 0.030 |
| 18S | D45 | 300 | 0.20 |
| 18S | 10x3 | 300 | 0.20 |
| 22S | 22S or Q35 | 45 | 0.10 |
| 22S | D45 or 10x3 or 25x3 | 300 | 0.20 |
| 28S | Q35 | 215 | 0.20 |
| 28S | D45 or 10x3 or 25x3 | 300 | 0.20 |
| 34S | Q35 | 300 | 0.20 |
| 34S | D45 | 300 | 0.20 |
| 34S | 10x3 or 25x3 | 300 | 0.20 |
| 42S | Q35 or D45 | 300 | 0.20 |
| 42S | 10x3 or 25x3 | 300 | 0.20 |
Diameters
| Outside diameter in mm | Number of support profiles |
| 30 | 8 |
| 45 | 10 |
| 57 | 12 |
| 70 | 18 |
| 85 | 18 |
| 97 | 20 |
| 110 | 24 |
| 137 | 30 |
| 164 | 36 |
| 215 | 48 |
| 268 | 48 |
| 305 | 40 |
| 380 | 48 |
| 460 | 60 |
| 510 | 64 |
| 625 | 80 |
| 914 | 180 |
High quality Wedge wire
HIGHTOP is professional manufacturer in China. We have advanced equipment. Our material imported from Taiwan LINKIGI and France TDV. Our round tubes have gained reputation from many customers. Our round tubes have advantages of good welding, slot, material of wedge wire. We have professional and experienced engineer, will do the best according to your requirement.
Hightop designs and manufactures a wide range of wedge wire products for the refining and petrochemical industry. Our screens are used in many diverse applications including media retention, hydro treating, de-sulfuring, sand filtering, and other adsorption processes. Regardless of the application, our application engineers bring years of experience to provide customers with products that extend the service life and improve filtration/separation performance.
