7x7 structure 1.6mmx60x104mm Flexible SS Rope Mesh Ferruled type for Balustrade
rope mesh material is producing by high quality stainless steel wire cable, the stainless steel grade includes type 304, 304 L, 316 and 316L. The structures of rope mesh have 7 x 7 and 7 x 19. All the material for producing rope mesh was imported form South Korea and Japan which have super quality. The standard rope mesh diameter includes 1/8", 3/32", 1/16", and 3/64", the standard mesh opening size includes 2" x 2", 3" x 3" and 4" x 4".

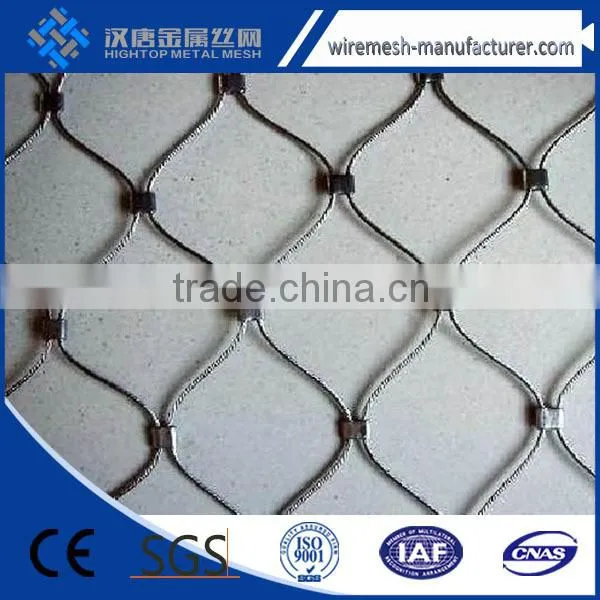

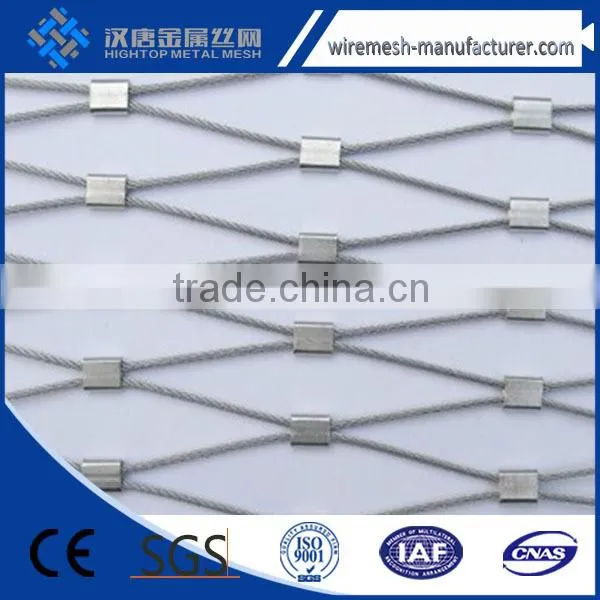

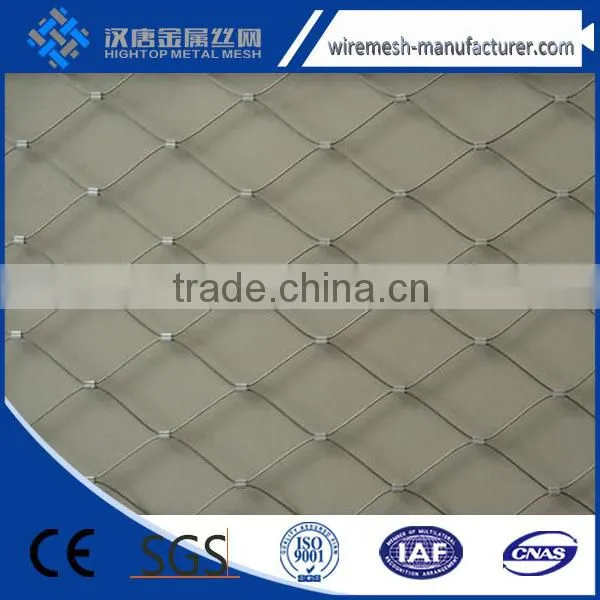

The rope mesh ferrule type is rhombus mesh, has excellent flexible performance, virtually indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow and hurricane.

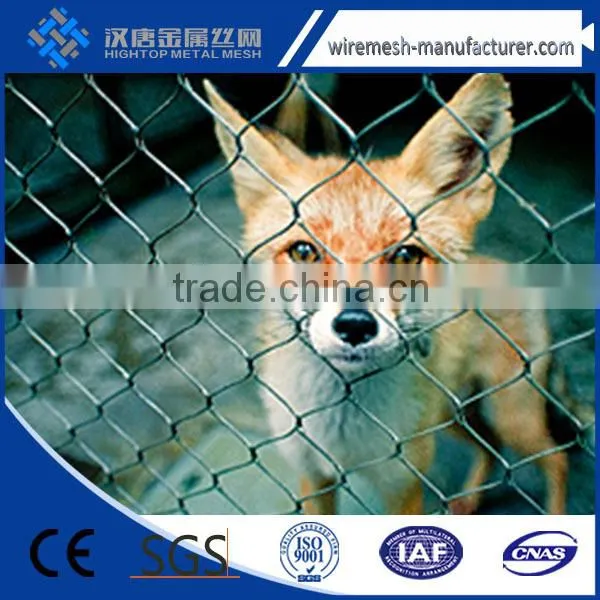

As the material is virtually indestructible stainless steel, then it can be safely contain any species on land, in the air indoors or out. For the weave opening, we can infinitely customizable to meet your exhibits exact specifications and we assure their complete security.
Rope mesh details
The specifications of rope mesh for your reference as follows:
|
Wire Rope Construction |
Min.Breaking Load KN |
Wire rope Diam mm |
Aperture mm |
Grade 304/316 |
| 7x19 | 7.38 | 3.2 | 150x260 | √ |
| 7x19 | 7.38 | 3.2 | 120x208 | √ |
| 7x19 | 7.38 | 3.2 | 100x173 | √ |
| 7x19 | 7.38 | 3.2 | 90x156 | √ |
| 7x7 | 4.18 | 2.4 | 150x260 | √ |
| 7x7 | 4.18 | 2.4 | 120x208 | √ |
| 7x7 | 4.18 | 2.4 | 100x173 | √ |
| 7x7 | 4.18 | 2.4 | 90x156 | √ |
| 7x7 | 4.18 | 2.4 | 80x139 | √ |
| 7x7 | 3.17 | 2.0 | 150x260 | √ |
| 7x7 | 3.17 | 2.0 | 120x208 | √ |
| 7x7 | 3.17 | 2.0 | 100x173 | √ |
| 7x7 | 3.17 | 2.0 | 90x156 | √ |
| 7x7 | 3.17 | 2.0 | 80x139 | √ |
| 7x7 | 3.17 | 2.0 | 70x121 | √ |
| 7x7 | 3.17 | 2.0 | 60x104 | √ |
| 7x7 | 2.17 | 1.6 | 120x208 | √ |
| 7x7 | 2.17 | 1.6 | 100x173 | √ |
| 7x7 | 2.17 | 1.6 | 80x139 | √ |
| 7x7 | 2.17 | 1.6 | 60x104 | √ |
| 7x7 | 2.17 | 1.6 | 51x87 | √ |
| 7x7 | 1.22 | 1.2 | 80x139 | √ |
| 7x7 | 1.22 | 1.2 | 60x104 | √ |
| 7x7 | 1.22 | 1.2 | 50x87 | √ |
| 7x7 | 1.22 | 1.2 | 40x69 | √ |
We invite you to consider the rope mesh as a material to be incorporated in your design scheme. The specification for your reference as follows:
| cable diameter | mesh opening size | norninal break | ||
| inch | mm |
inch | mm | lbs. |
| 1/8 | 3.2 | 4.75x4.75 | 120x120 | 1600 |
| 1/8 | 3.2 | 4x4 | 102x102 | 1600 |
| 1/8 | 3.2 | 3.55x3.55 | 90x90 | 1600 |
| 1/8 | 3.2 | 3x3 | 76x76 | 1600 |
| 1/8 | 3.2 | 2x2 | 51x51 | 1600 |
| 3/32 | 2.4 | 4x4 | 102x102 | 920 |
| 3/32 | 2.4 | 3.55x3.55 | 90x90 | 920 |
| 3/32 | 2.4 | 3x3 | 76x76 | 920 |
| 3/32 | 2.4 | 2.4x2.4 | 60x60 | 920 |
| 3/32 | 2.4 | 2x2 | 51x51 | 920 |
| 5/64 | 2.0 | 3x3 | 76x76 | 676 |
| 5/64 | 2.0 | 2.4x2.4 | 60x60 | 676 |
| 5/64 | 2.0 | 2x2 | 51x51 | 676 |
| 5/64 | 2.0 | 1-1/2x 1-1/2 | 38x38 | 676 |
| 1/16 | 1.6 | 3x3 | 76x76 | 480 |
| 1/16 | 1.6 | 2x2 | 51x51 | 480 |
| 1/16 | 1.6 | 1-1/2x 1-1/2 | 38x38 | 480 |
| 1/16 | 1.6 | 1.2x1.2 | 30x30 | 480 |
| 1/16 | 1.6 | 1x1 | 25.4x25.4 | 480 |
| 3/64 | 1.2 |
1-1/2x 1-1/2 | 38x38 | 270 |
| 3/64 | 1.2 | 1.2x1.2 | 30x30 | 270 |
| 3/64 | 1.2 | 1x1 | 25.4x25.4 | 270 |
| 3/64 | 1.2 | 4/5x4/5 | 20x20 | 270 |
rope mesh production process
rope mesh packing details
shipping of rope mesh
our service about rope mesh
We can also provide other products,
1.Woven Wire Mesh :stainless steel wire mesh,brass wire mesh,copper wire mesh,plain steel wire mesh,galvanized wire mesh.epoxy coated wire mesh, aluminum Wire Mesh,crimped wire mesh.
2.Gabion box
3.Expanded Metal
4.Wedge Wire Screen
5.Iron Nails:concrete nails, roofinf nails,common nails.
6.Metal Wire:razor wire, barbed wire , stainless steel wire , galvanized wire , black annealed wire
7.rope mesh
8.Polyester Mesh
9.Hexagonal Wire Netting
10.Wire Mesh Disc&Slits
11.Architectural Wire Mesh
12.welded wire mesh
13.Knitted Wire Mesh
14.perforated metal mesh : round hole metal, square hole metal, slotted hole metal, decorative metal
