High quanlity and low price ribbed expanded metal lath

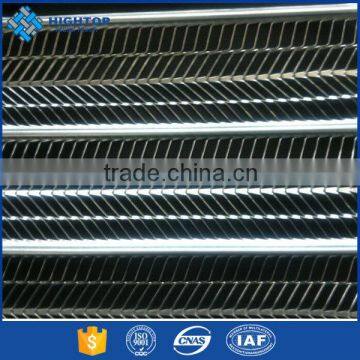

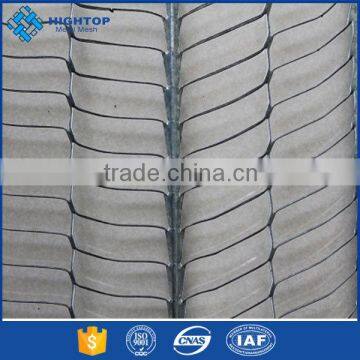

Rib Lath is a versatile metal lath stiffened by the longitudinal ribs. It has V ribs and greater tensile strength which offering excellent plaster base and reinforcement for all types of walls, ceilings, partitions and fireproofing of steel beam, and columns. Rib lath is ideal for providing a high degree key of mechanical bonding with render or plaster.
Material: Galvanized Steel Sheet and Stainless Steel Sheet
Specifications of rib lath
According to the opening size (Sw x Lw), rib lath can be divided into the following four kinds.
| Rib Distance | Rib Height | Opening size( Sw x Lw) | Width |
| 150mm | 5.0mm | 12.5*17mm | 600mm |
1 Sw x Lw: 12X8mm
| Thickness(mm) | Sw*Lw(mm) | Rib Height(mm) | Rib Distance(mm) | Weight (Kg/m²) | Width(mm) |
| 0.30 | 12*8 | 5 | 100 | 1.2 | 610 |
| 0.35 | 12*8 | 5 | 100 | 1.4 | 610 |
| 0.40 | 12*8 | 5 | 100 | 1.6 | 610 |
| 0.30 | 12*8 | 8 | 100 | 1.2 | 610 |
| 0.35 | 12*8 | 8 | 100 | 1.4 | 610 |
| 0.40 | 12*8 | 8 | 100 | 1.6 | 610 |
2 Sw× Lw: 3.5x13mm
| Thickness(mm) | Sw*Lw(mm) | Rib Height(mm) | Rib Distance(mm) | Weight (Kg/m²) | Width(mm) |
| 0.30 | 3.5*13 | 4 | 60 | 1.27 | 610 |
| 0.35 | 3.5*13 | 4 | 60 | 1.49 | 610 |
| 0.40 | 3.5*13 | 4 | 60 | 1.70 | 610 |
| 0.30 | 3.5*13 | 4 | 75 | 1.27 | 750 |
| 0.35 | 3.5*13 | 4 | 75 | 1.49 | 750 |
| 0.40 | 3.5*13 | 4 | 75 | 1.70 | 750 |
3 Sw× Lw: 20x9mm
| Thickness(mm) | Sw*Lw(mm) | Rib Height(mm) | Rib Distance(mm) | Weight (Kg/m²) | Width(mm) |
| 0.35 | 20*9 | 8 | 75 | 1.00 | 610 |
| 0.40 | 20*9 | 8 | 75 | 1.13 | 610 |
| 0.45 | 20*9 | 8 | 75 | 1.27 | 610 |
4 Sw× Lw: 16x11mm
| Thickness(mm) | Sw*Lw(mm) | Rib Height(mm) | Rib Distance(mm) | Weight (Kg/m²) | Width(mm) |
| 0.30 | 16*11 | 8 | 150 | 0.88 | 610 |
| 0.35 | 16*11 | 8 | 150 | 1.18 | 610 |
| 0.40 | 16*11 | 8 | 150 | 1.46 | 610 |
Application:Partition wall,Tunnel / sewers project,Floor,etc

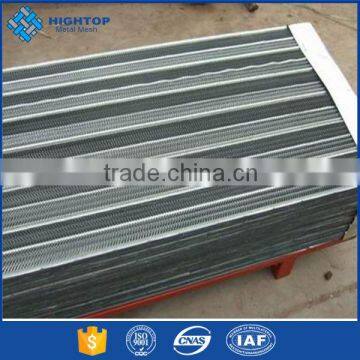

Packaging details: packing with steel belt,then put it on steel pallet.
