Features for trailer axle:
1)Capacity: 12t, 14t,16t,18t
2) Brake: 420*180mm / 420*200mm / 420*220mm
3) Axle tube: 150*150*(12/14/16/18)mm
4) Track: 1840mm

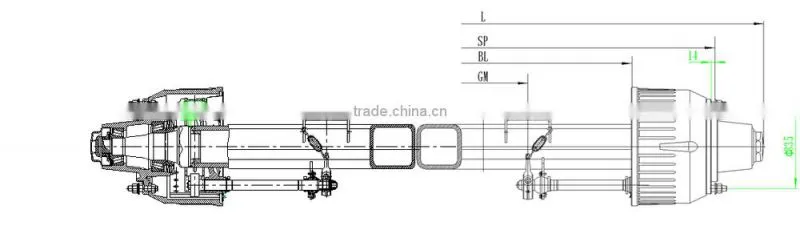

Specification for Germany type trailer axle :
|
(Kgs) |
|
lenght |
|
distance |
of brker chambe |
|
size |
Crilterion |
wheel rim is recom-mended to use |
P.C.D |
12000 |
33213/33118 |
2158 |
1840 |
1272 |
422.6 |
150*150*12 |
φ420*180 |
10-M22*1.5 |
7.50-20 |
φ335 |
12000 |
33213/33118 |
2188 |
1870 |
1302 |
452.6 |
150*150*14 |
φ420*180 |
10-M22*1.5 |
7.50-20 |
φ335 |
14000 |
33215/32219 |
2220 |
1870 |
1212 |
284.6 |
150*150*14 |
φ420*200 |
10-M22*1.5 |
8.00-20 |
φ335 |
14000 |
33215/32219 |
2190 |
1840 |
1182 |
254.6 |
150*150*16 |
φ420*200 |
10-M22*1.5 |
8.00-20 |
φ335 |
16000 |
32314/32222 |
2258 |
1840 |
1180 |
251.6 |
150*150*16 |
φ420*200 |
10-M22*1.5 |
8.50-20 |
φ335 |
16000 |
32314/32222 |
2498 |
2080 |
1420 |
491.6 |
150*150*16 |
φ420*200 |
10-M22*1.5 |
8.50-20 |
φ335 |
Advantages for trailer axle:
Advantages:
1) Axle and JT/T475-2002 standard, the fatigue test of 800,000 times
2) Bearing position using medium frequency heat treatment process, effectively reduce bearing heating, improve the service life of bearing and axle
3) the brake lining is environment friendly, non-asbestos and long life-expectancy.
Quality assurance can reach 100,000 KM
4) the bearing is high rotate speed, abrasion resistant and heat resistant
5) Brake hub with advanced casting process, satisfy the standard of GB/T9439

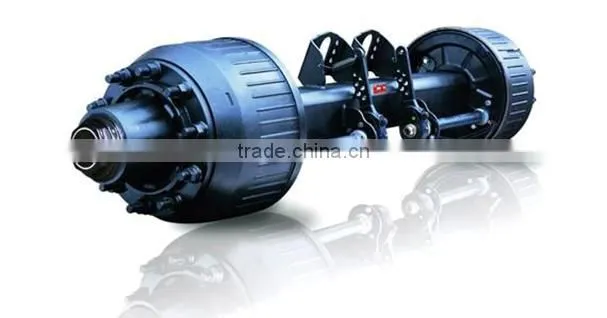

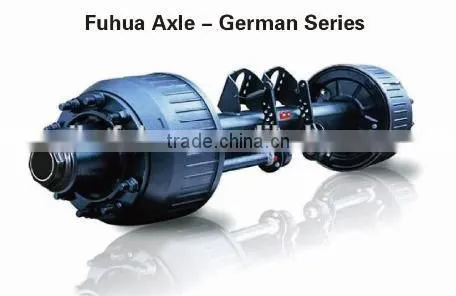

Pictures for trailer axle:

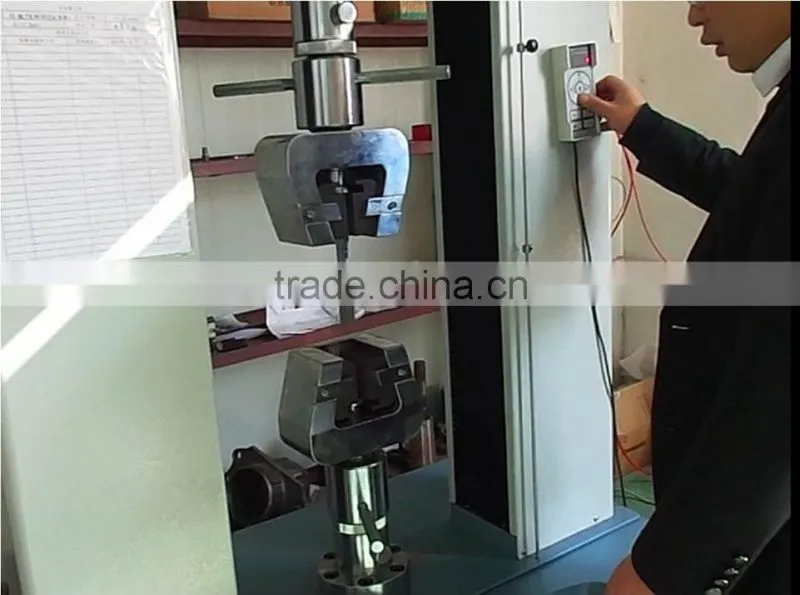

quality control:
