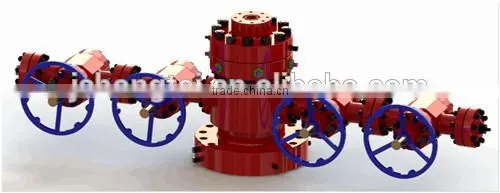

Help CenterTubing Head Assemby for Oilfield
Related Products
Tubing Head for Oilfield
About Factory
Our company, founded in 2006,as national high-tech enterprises,is CNPC First-Class material suppliers with many leading products-wellhead assembly,X-mas tree,choke and kill manifold etc.Our company, Passing API Q1,ISO 9001:2008,is authorized the right to use the monogram of API 6A,API 16C,and also has the National Special Equipment A-class Manufacturing License(TS).
Company currently,located in Funing,Yancheng City,Jiangsu Province ,China, occupies 76000 square metres with 220 staff including 38 high and mid-level technical staff.There are about 178 sets of various processing equipment and 500 sets of testing equipment and tools.
Company will constantly invest more on scientific research,strengthen the cooperation with school-enterprise,pay attention to personnel training,and develop well-liked new products to be an excellent supplier of oilfield production,and make company go to a higher level!
Old Factory
New Factory

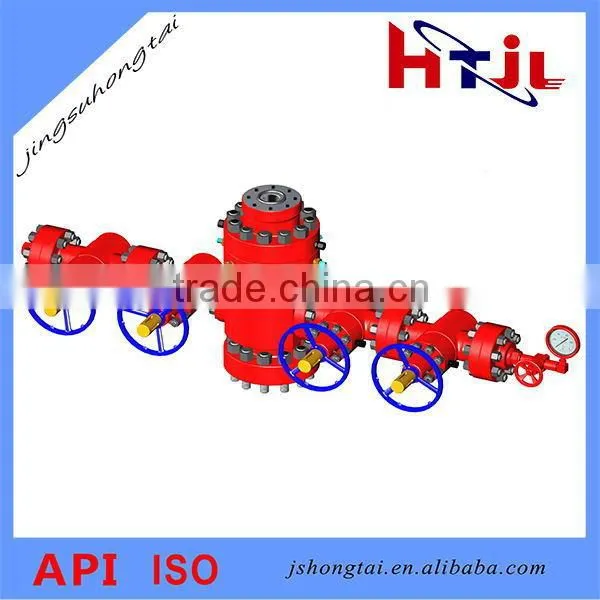

About Product
1.Tubing hanger of tubing head is straight structure and the core of hanger shoulder is 45°with fine loading ability.
2.The connection of side outlet is bolted flanges with VR thread for valve-replacement operation.
3.The bottom flange is equipped with secondary seal mechanism and sealing test port.
4.Tubing hanger and tubing head adaptor can be penetrated through by cable or cable penetrator and set with control pipeline interface.
Working Pressure |
2000Psi |
3000Psi |
5000psi |
10000Psi |
15000Psi |
|
Top Flange |
7 1/16”-13 5/8” |
7 1/16”-13 5/8” |
7 1/16”-13 5/8” |
7 1/16”-13 5/8” |
7 1/16”-13 5/8” |
|
Bottom Flange |
7 1/16”-13 5/8” |
7 1/16”-13 5/8” |
7 1/16”-13 5/8” |
7 1/16”-13 5/8” |
7 1/16”-13 5/8” |
|
Side Bore |
2 1/16”-3 1/8” |
2 1/16”-3 1/8” |
2 1/16”-3 1/16” |
2 1/16”-3 1/16” |
2 1/16”-3 1/16” |
Tubing Hanger Thread |
2 3/8EU,2 7/8EU , 3 1/2EUor according to users’ requirements |
||||
Tubing Hanger Type |
Cone hanging or straight hanging |
||||
About Packing
About Machinery
Certification:(API16C,API6A,APIQ1)
Certification:(ISO9001,OHSAS18001:2007,and other cetifications)
Trade Show
Thank you very much for your nice attention!
