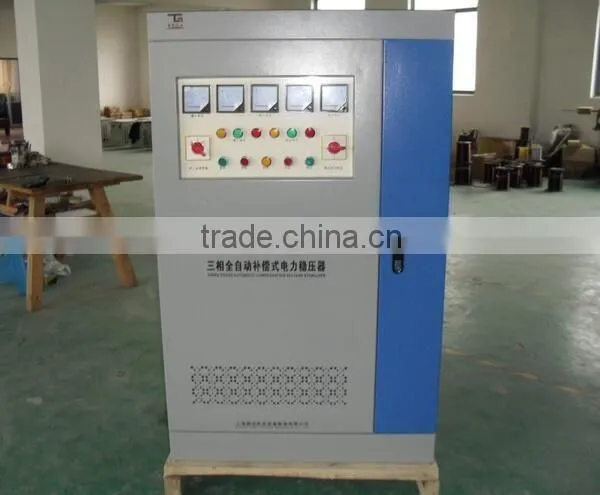

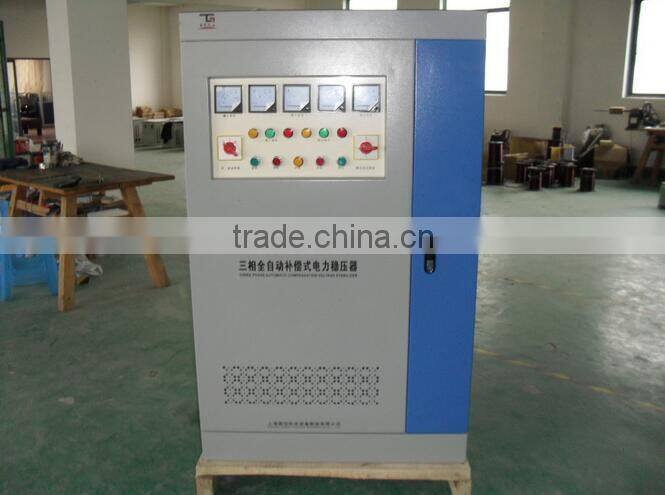

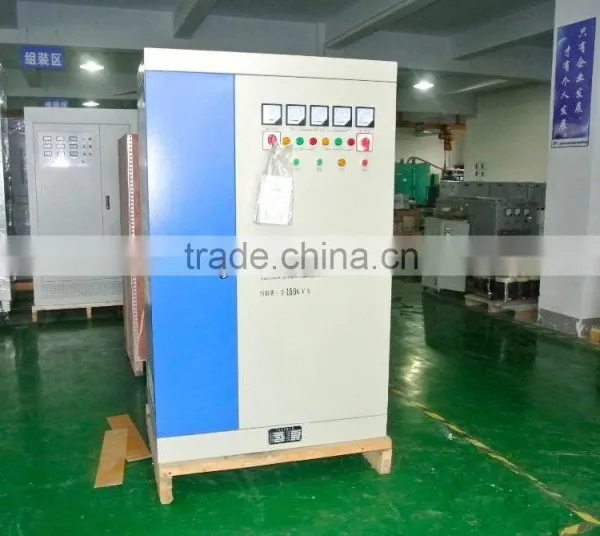

5000w automatic low Voltage stabilizer
Introduct of product
1.Series DBW and SBW single-phase and three-phase high-power full-automatic compensating power voltage stabilizers (Hereinafter called as the voltage stabilizers.) are designed for stabilizing AC current by importing and absorbing the advanced technology from Western Europe, and conforming to the situation in our country simultaneously.
2. When the voltage fluctuation of outside power-supply network or the load change causes the voltage to be fluctuated, it can automatically keep the output voltage stable.
Basic Parts
Cabinet; English, LCD display screen
Terminals: 3 phase 4 wires (With Neutral+Ground/Earth);

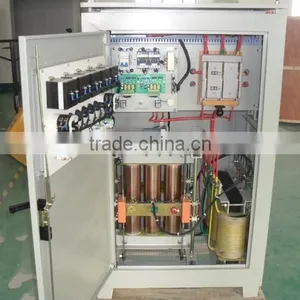

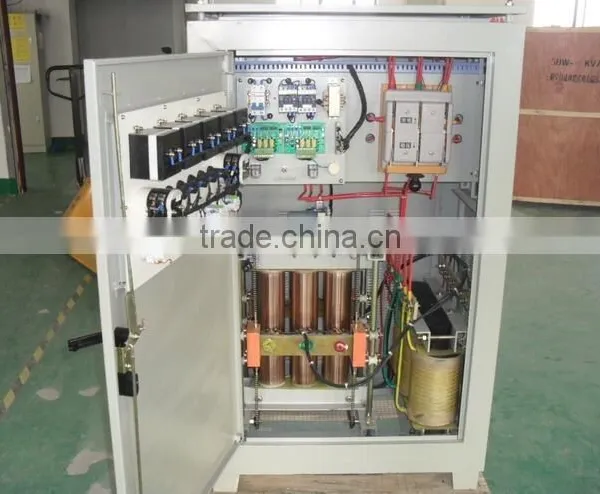

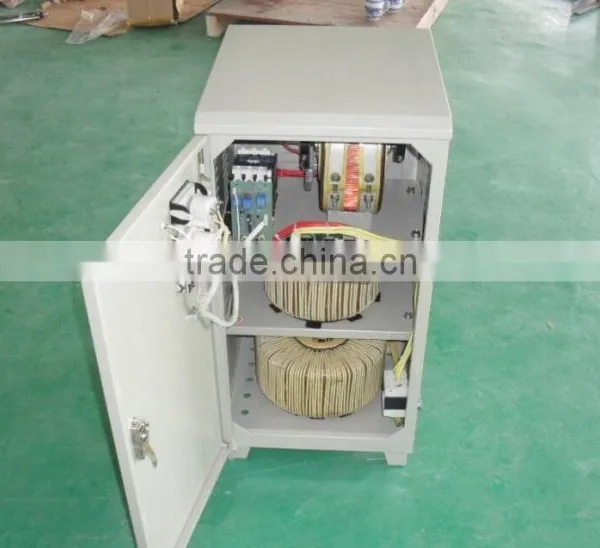

Main Switch, AC contactor, Servo Motor, Carbon Brush, Cables/Busbar, PCB main board, Manual/Automatic Switch, Adjusting transformer (contact type voltage regulator), Compensation transformer
Extra Parts and Function
Surge Arrester: against the spikes
IP54 or higher cabinet protection level
Harmonics filter: to remove the site harmonics
Tempeature meter: to show the temp. of the cabinet and inside components of the stabilizer
Technical Parameter
Power range: 20KVA-200KVA (single phase)
Input voltage: single phase 220V±20% (176-264V), optional 220V±30% (154-286V) or larger range
Output voltage: single phase 220V±3%
Power range: 20KVA-2500KVA(three phase)
Input voltage: 3 phase 380V±20% (304-456V), optional 380V±30% (266-494V) or larger range
Output voltage: 3 phase 380V±3%
Custom made products in special input & output voltage is available, like 3 phase 220v, 400v, 415v, etc
Working frequency: 50Hz/60Hz; Response time: ≤1s; Efficiency: ≥98%
Waveform distortion: Do not produce additional waveform distortion
Protection function: overload, over current, over voltage, under voltage, short circuit, etc

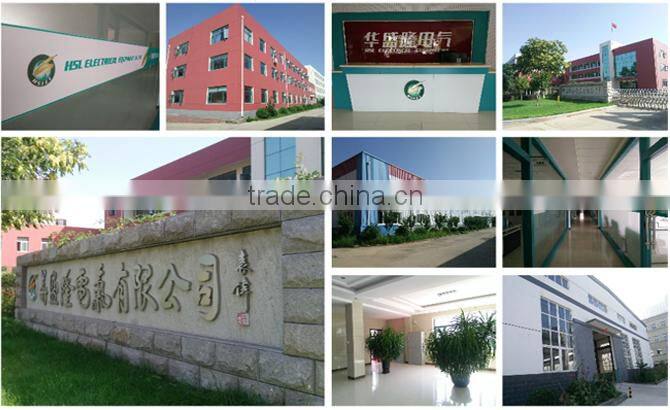

introduction of our company
1. 23 years' manufacturing experience
2. One machining workshop, two wire winding workshops, complete special-use and universal-use equipment,
a complete set of inspection equipment, and large-scale winding equipment
3. CE & ISO certificate
4. OEM / ODM
5. Competitive price with 100% Cu winding
6. Production capacity: more than 500,000 kVA per year
7.Our customers: Siemens, Emerson,ABB ,GE, Fuji, Allen-Bradley, Eurotherm, LG,etc.
Packing of 5000w automatic low Voltage stabilizer :
You may like more transformers and reactors:
Our Best Service for You!
HSLEC offers a complete range of services for the care and maintenance of transformers,
from carrying out external evaluations and field-testing to undertaking full relocation projects.
- Before –Sales
HSLEC excels at helping customers find ways to reduce cost. Using computer programs design
calculations enable millions of interative calculations converging to a very optimum design.
- After-Sales
1. Transformer Accessories :
HSLEC provides a complete line of transformer components and accessories, which they
are available in stock and can be ready to ship for emergency needs.
2. HSLEC offers a full range of after sales service:
Tracing the quality of the product; site installation and commission; training customer staff ;
periodical customer visit, and so on.
- Warranty Policy
a) The guarantee of the individual transformer to be supplied shall be for 12 months from the date of delivery against any delivery manufacturing defect on account of improper design, bad workmanship or poor quality of raw material used etc. and any such defects occurring within the above period will be repaired/replaced by us provided the maintenance of transformer are done as per relevant specification.
b) All claims under this warranty must be submitted in writing to HSLEC within 30 days of the occurrence,Upon receipt of such notice,HSLEC shall promptly repair or replace the defective GOODS or part thereof without any cost.
c) The warranty shall be void if (a) the equipment is damaged by the customer, is improperly used, is subjected to an adverse operating environment, or is operated outside the limits of its electrical specifications; (b) the equipment is repaired or modified by anyone who is not familiar with this product. or (c) has been used in a manner contrary to the product's operating manual or other written instructions.
