Line Reactor compatible for DC Speed Regulator
1.The line reactor is used to prevent harmonics mainly generated by power source of inverter.
2.It helps to ensure long time running of equipment by absorbing power disturbances which may otherwise damage motors and drives.
3.Hence, the low voltage reactor is able to increase drive reliability of equipment.
For more details about the specifications of the special reactor and transformer for speed governor and inverter, please refer to relevant data table.
| AC Power | Motor | for DC Speed Regulator | 3 Phase Line Reactor | ||||||||||||||||||||||
| Source | Power | ||||||||||||||||||||||||
| Voltage | Model | Voltage | Current | Phase | Ref. No. | No. | Ref. Price | ||||||||||||||||||
| V | kW | V | A | Current A | HSL | USD/set | |||||||||||||||||||
| 15 | 590/0350 | 400~420 | 35 | 30 | C0055192 | HSL119-E01 | 1 | 140 | |||||||||||||||||
| 30 | 590/0700 | 70 | 60 | C0055193 | HSL119-E02 | 2 | 180 | ||||||||||||||||||
| 45 | 590/1100 | 110 | 100 | C0055253 | HSL119-E03 | 5 | 320 | ||||||||||||||||||
| 60 | 590/1500 | 150 | 140 | C0055255 | HSL119-E04 | 6 | 450 | ||||||||||||||||||
| 3AC | 75 | 590/1800 | 180 | 160 | C0055257 | HSL119-E05 | 7 | 560 | |||||||||||||||||
| 380 | 110 | 592/2700 | 270 | 240 | C0055258 | HSL119-E06 | 10 | 1450 | |||||||||||||||||
| 190 | 594/3600 | 360 | 320 | C0055259 | HSL119-E07 | 11 | 1800 | ||||||||||||||||||
| 220 | 594/4500 | 450 | 400 | C00557960 | HSL119-E08 | 11 | 1950 | ||||||||||||||||||
| 250 | 596/5500 | 550 | 480 | C00557962 | HSL119-E09 | 12 | 1950 | ||||||||||||||||||
| 300 | 596/7200 | 720 | 630 | C00557963 | HSL119-E10 | 13 | 2500 | ||||||||||||||||||
| 3AC | 395 | 598/9500 | 800 | 950 | 830 | HSL119-E11 | 14 | 3600 | |||||||||||||||||
| 500 | 455 | 598/11000 | 1100 | 960 | HSL119-E12 | 14 | 4000 | ||||||||||||||||||
| 575 | 598/13880 | 1388 | 1250 | HSL119-E13 | 15 | 5600 | |||||||||||||||||||
| Note : | Owing to the volatility of the US currency and the basic metals in the global market, the above price should only be regarded as refence purpose | ||||||||||||||||||||||||
| and subject to final confirmation. | |||||||||||||||||||||||||
Features
1. The line reactor greatly reduces catastrophic drive failures due to transient over-voltage.
2. The low voltage reactor decreases nuisance over-voltage trips due to line transients, drastically:
(1)Utility power factor correction
(2)Switching large AC motor loads
(3)Switching large transformers
(4)High AC line conditions
3. Line-side fuse operation during unsymmetrical voltage sags is reduced to the minimum:
(1)Utility system line-to-ground faults
(2)Unbalanced phase currents
4. The line reactor can also prevent harmonics and effectively improve power factor.
Functions
1. A line reactor can be used for adding line impedance.
2. The inductor also serves to reduce harmonics.
3. It is able to compensate for a low inductance motor.
4. The low voltage reactor acts only as part of a filter to reduce reflected wave.
The Basic Program of Testing Includes
Some or All of the Following Tests:
Routine Tests
Impulse Tests
Thermal Current Calculation
Mechanical Strength Test
Impedance and Loss Test
Temperature Rise Test
Sound Level Test
Seismic Analysis
Standard export wooden packing.
Delivery Time
4-30 days after receive the payment
1.Established in 1992, Huashenglong Electrical Equipment Company is an ISO9001:2008 certified low voltage inductor manufacturer in China.
2.We have one machining workshop, two wire winding workshops, complete special-use and
universal-use equipment, a complete set of inspection equipment, and large-scale winding
equipment.
3.With reliable quality and low prices, our dry type reactor and power transformer are sold well in
America, Turkey, India, Thailand, Saudi Arabia, Vietnam, Georgia, etc.
1.HSLEC offer a wide variety High Voltage and Low Voltage power products
2.including power transformers, distribution transformers,
3.air core reactors, iron core reactors and line reactors and output reactors compatible to variety
Frequecny Inverters and Governors.
4.In addition, we also can fulfill your OEM requests.
Certificate
Application
Main product

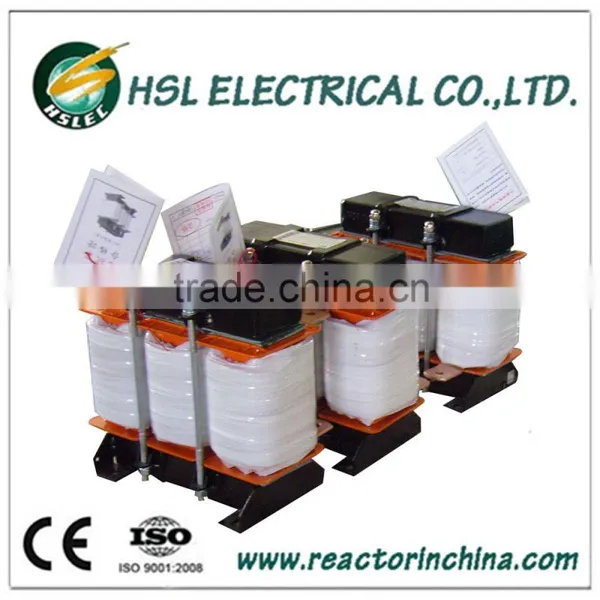

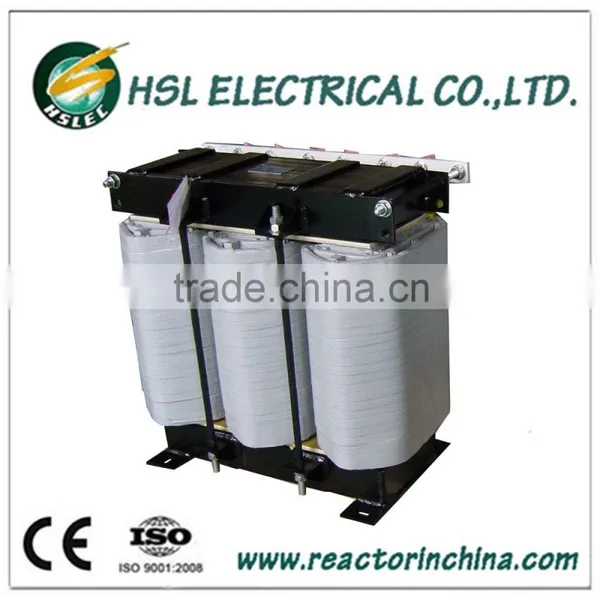

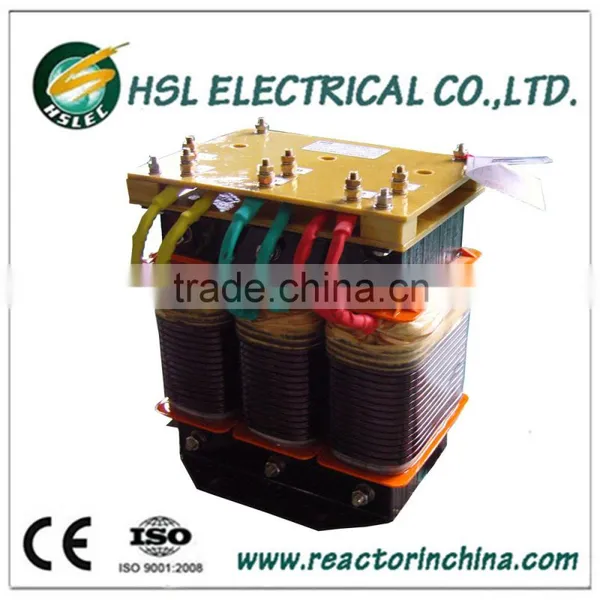

Product photos for Line Reactor compatible for DC Speed Regulator
Company and workshop photos
