Help Center20kv Oil Immersed Electrical Power Transformer
Related Products
-
630kva Oil Immersed Power Distribution Transformer PriceUS$ 5,000 - 10,000MOQ: 1 Set -
Oil Immersed Power Distribution Transformer 33kv 11kvUS$ 5,000 - 20,000MOQ: 1 Set
-
Oil Immersed Isolation Transformer 1000vaUS$ 5,000 - 20,000MOQ: 1 Set
-
11kv 33kv Three Phase Oil Immersed Distribution Transformer Quality ChoiceUS$ 5,000 - 20,000MOQ: 1 Set
-
22kv 3 Phase Isolation Oil TransformersUS$ 5,000 - 20,000MOQ: 1 Set

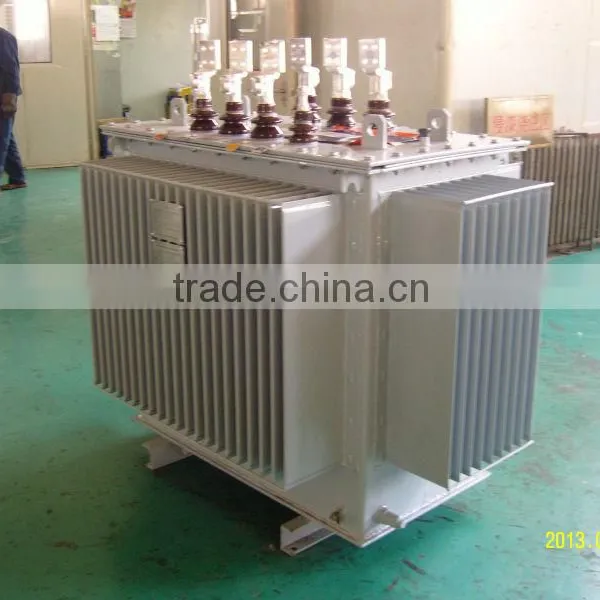

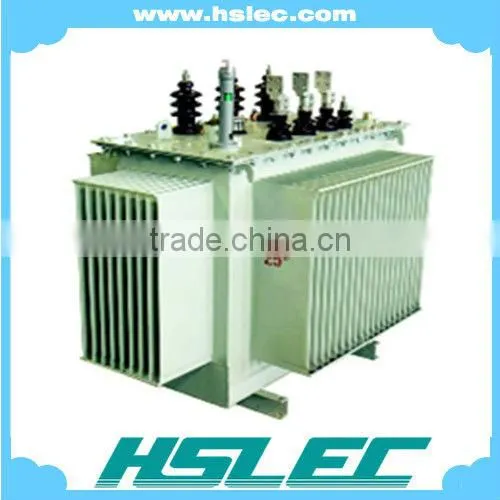

Power transformer three phase oil immersed electrical transformer rated voltage during 6-35kV, oil immersed transformer are most used in power plant, power grid transmission and distribution station, industry and commerce electrical substation as the electrical equipment of power transmission:
1. Two windings or three windings;
2. On-load or no-load voltage tapping changer;
3. Natural cooling or force air or oil cooling;
4. Capacity range 10-2500kVA.
| transformer power transformer oil immersed transformer electric transformer | |
| 1 | Power transformer 10kv and 35kv low-loss series |
| 2 | low loss, low noise, high reliability |
| 3 | Iron core is made of cold-rolled silicon-steel |
| 4 | Have good ability withstand short-circuit |
| 5 | The oil tank is bell type with the structure of full folding plate type, |
| 6 | Having an excellent exterior and easy for maintenance |

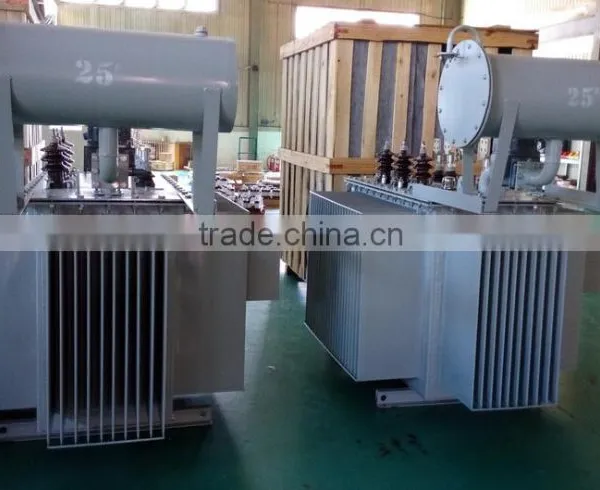

| 7 | Adopting capsule-type oil container, it can reduce oil aging to the lowest degree |
| 8 | Power loss: no-load loss is 30% lower than that of IEC standard |
| 9 | Reliability: All in-service product have no damages or oil leakage occurred |
More Products To Choose
Parts Of Product
| Core | 1 | Power transformer core is made of high-permeable grain-orientated top quality cold-rolled silicon sheet |
2 |
The material is cut with advanced Germany Geoge GmbH automatic shear line with the cut burrs controlled within 0.02mm. | |
| 3 | Power transformer silicon sheet fabrication adopts “no-upper yoke-lapped’ technology and all lapped joints of the silicon sheet are 45 full-miters | |
| 4 | Effectively improves no-load performance and reduces noises. |
| Coil | 1 | The high-voltage(HV) coil adopts an interleaved-continuous structure to improve the voltage characteristics under impact voltage and make voltage evenly distributed. |
| 2 | All stays and pads are chamfered to keep highly reliable insulation. | |

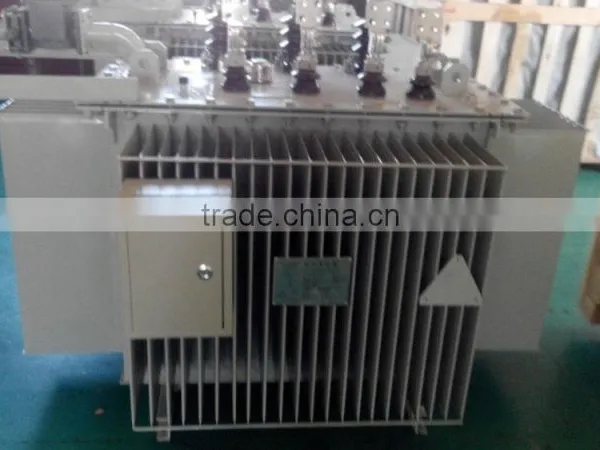

| Oil tank and accessories | 1 | Power transformer tank wall adopts wide steel sheet |
| 2 | Which will be folded into corrugated structure without splicing | |
| 3 | In this way welds aredecreased and mechanical strength is enhanced | |
| 4 | The corrugated wall has diverging effect, and thus plays arole in decrease of noise. |

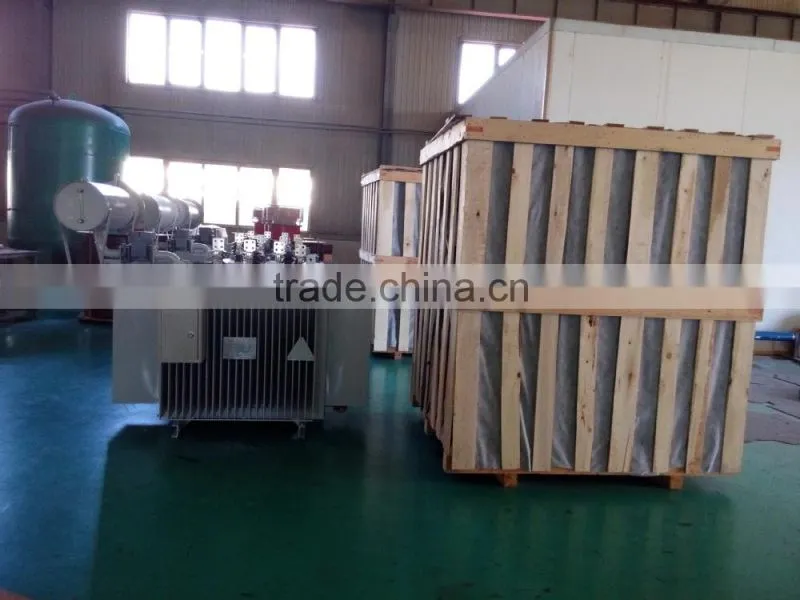

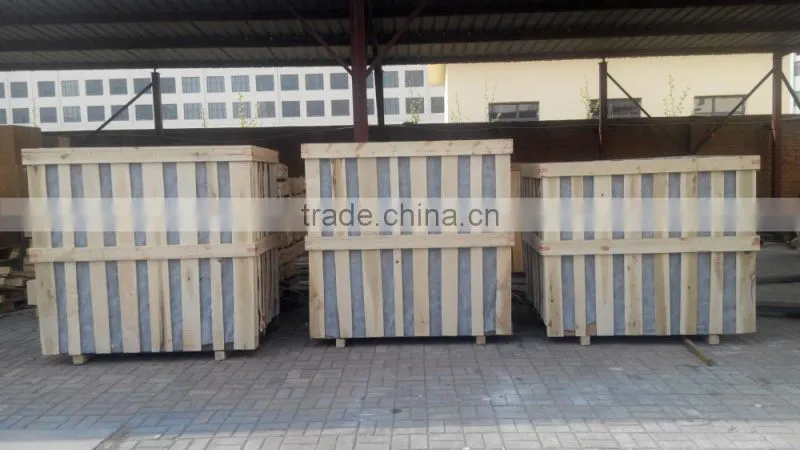

Packing:EXPORTED STANDARD NON-FUMIGATION WOODENCASE
Delivery Time: 10-30 days after the receipt of the payment
1. Pre sale service
a. make technical solution
b. send quotation, technical data sheet and drawing
c. make manufacturing plan, testing plan and shipping plan
2. In sale service
a. supervise the manufacturing schedule totally in accordance with the plan
b. send photos to customer during every manufacturing process(hold point)
c. inform the customer one week before testinng.
d. book hotel and ticket for customer if they will come do FAT.
3. After sale service
a. installation and commissioning
b. training the workers
b. quick response within 12 hours at any time
1.Q: Are you manufacturer or trading company?
A: Manufacturer
2.Q: What is your minimum order quantity?
A: 1 set.
3.Q: What is your delivery time ?
A: Depend on the type of transformer.
4.Q: What is your payment term?
A: 30% advance by T/T , 70% before delivery by T/T or L/C
or we can discuss about it.
5. Q: What kind of supporting documentation you can provide normally
A: Quotation,outline drawing,manufacturing plan, quality control plan
testing plan, financial report, type test report(KEMA, CESI),reference list,etc
6. Q:What is your normal wanrranty period?
A: 12 months after transformer operation.
7. Q: Can u do installation and commissioningin user's site?
A: Yes, we can send our installation team to user's country for service.
8. Q: Do you have any experience in this kind of transformer?
A: Yes, we can provide reference list for check.
