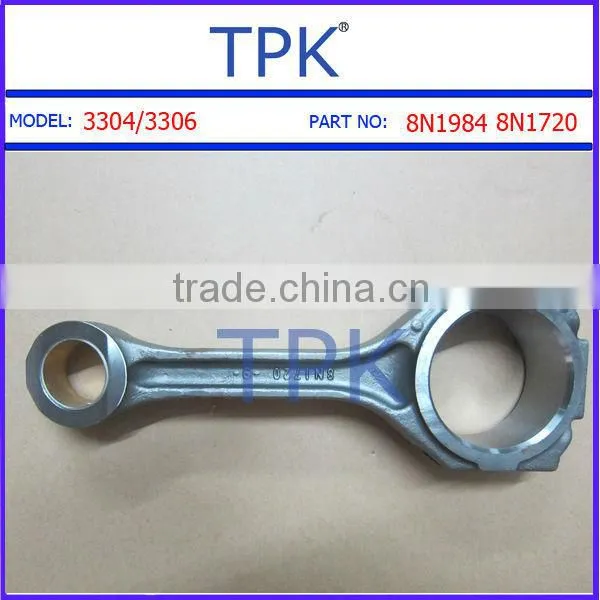

3306 connecting rod, 8N1984,8N1720

3304 3306 CONNECTING ROD  8N1984,8N1720

Engine 3304 Dia 120.65mm

1: 3304 Piston Body 1654262,9N5403,9N5250,8N3184,8N3182,8N3180,1684531,1290358
2: 3304 Piston Ring Set 2W6091 (9S3029,5S6750,7E6047);2W1709 (2W1707,2W1708,7E6047);9S3068 (9S3029,5S6750,9S7788);2114321
3: 3304 Piston Pin 7N9804,7N9805
4: 3304 Snap,Clip 9H4015,1S9543
5: 3304 Main Bearing 4W5738 STD;8N8225 0.25;8N8226 0.5; 8N8227 0.75;
6: 3304 Connecting rod bearing 4W5739 (8N8220) STD;8N8221 0.25; 8N8222 0.5;8N8223 0.75;
7: 3304 Thrust Bearing 9N8940 (6N4129), 9S3037 (6N4129);1003652 (7N9342)
8:3304 Con rod bush 7N0702,8N1985,8N0703,8N1849
9: 3304 Camshaft bush 7M4046 (2);9M5477 (1)
10: 3304 Cylinder Head Gasket: 7N7386 7N8022
11: 3304 Push Rod
12: 3304 Engine Valve Intake 1007860,5S6452,2W2621,7W7490,6N9915
13: 3304 Engine Valve Exhaust 1487455,5S6449,2W2877,8N0875,7W7491,7N0573
14: 3304 Valve Spring 7S7144
15: 3304 Valve Guide Intake 4W9176 7E1511
16: 3304 Valve Guide Exhaust 9Y7895
17: 3304 Valve Steam Seal
18: 3304 Cylinder Head Bolt
19: 3304 Connecting rod Bolt 1P9956
20: 3304 Cylinder Liner 1105800,2P8889

3306 ENGINE PARTS:

CYLINDER KIT
PLG8N3180 Cylinder kit 6 4.750 bore, 1.500 pin, PC, straight rod, 17.5:1 CR, [8N3180 piston, 9S3068 rings, 7N9804 pin, 9H4015
retainers, 1105800 liner] [Can use PLG8N3182]
PLG8N3182 Cylinder kit 6 4.750 bore, 1.500 pin, PC, straight rod, 17.5:1 CR, [8N3182 piston, 9S3068 rings, 7N9804 pin, 9H4015
retainers, 1105800 liner]
PLG8N3184 Cylinder kit 6 4.750 bore, 1.500 pin, PC,straight rod, 21:1 CR [8N3184 piston, 9S3068 rings, 7N9804 pin, 9H4015
retainers, 1105800 liner]
PLG9N5250 Cylinder kit 6 4.750 bore, 1.700 pin, PC,straight rod, 17.5:1 CR, with plug [9N5250 piston, 9S3068 rings, 7N9805 pin,
1S9543 retainers, 1105800 liner]
PLG9N5403 Cylinder kit 6 4.750 bore, 1.700 pin, PC, straight rod, 17.5:1 CR,with plug [9N5403 piston, 2W1709 rings, 7N9805
pin, 1S9543 retainers, 1105800 liner]
PLG1290358 Cylinder kit 6 4.750 bore, 1.700 pin, DI, taper rod, 15:1 CR [1290358 piston, 2W6091 rings, 7N9805 pin, 1S9543
retainers, 1105800 liner]
PLG1654262 Cylinder kit 6 4.750 bore, 1.700 pin, DI, taper rod, 15:1 CR [1654262 piston, 2114321 rings, 7N9805 pin, 1S9543
retainers, 1105800 liner] (replaces PLG1290338, PLG8N3102)
Caution: use casting# from crown, not skirt or bottom
PLG1684531 Cylinder kit 6 4.750 bore, 1.700 pin, DI, taper rod, 16:1 CR [1684531 piston, 2114321 rings, 7N9805 pin,
1S9543retainers, 1105800 liner] (replaces PLG1568262, PLG9Y8271)
PLG1646560 Cylinder kit 6 4.750 bore, 1.700 Pin, DI,taper rod, 16:1 CR [1646560 piston, 3300RS3 rings, 7N9805 pin, 1S9543
retainers, 1105800 liner]
PLG1548087 Cylinder kit 6 4.750 bore, 1.700 pin, DI, taper rod, 17:1 CR [1548087 piston, 2114321 rings, 7N9805 pin, 1S9543
retainers, 1105800 liner] (replaces PLG6I2650)
3306C ATAAC Truck engine 7RJ (1991) sn
PLG1073565 Cylinder kit 6 4.750 bore, 1.700 pin, DI, taper rod, 17:1 CR [1073565 piston, 3300RS2 rings, 7N9805 pin, 1S9543
retainers,1105800 liner]
3306C ATAAC Truck engine 9TL (1993) sn;Caution: use casting# from crown, not skirt or bottom
8N3180 Piston 6 4.7500 bore, PC, single-ni, 17.5:1 CR (can use 8N3182)
8N3182 Piston 6 4.7500 bore, PC, dual-ni, 17.5:1 CR
8N3184 Piston 6 4.7500 bore, PC, dual-ni, high altitude: 21:1 CR
9N5250 Piston 6 4.7500 bore, PC, dual-ni, with heat plug, 17.5:1 CR (rect comp rings)
9N5403 Piston 6 4.7500 bore, PC, dual-ni, with heat plug, 17.5:1 CR (key comp rings)
1290358 Piston 6 4.7500 bore, DI, dual-ni, 15:1 CR (rect comp rings) (replaces 1W6757)
1654262 Piston 6 4.7500 bore, DI, dual-ni, 15:1 CR (key comp rings) (replaces 1290338, 8N3102)
1684531 Piston 6 4.7500 bore, DI, dual-ni, 16:1 CR (key comp rings) (replaces 1568262, 9Y8217)
1290359 Piston 6 4.7500 bore, DI, 16:1 CR (rect comp rings) (replaces 4P8132) [will be 1646560]
1548087 Piston 6 4.7500 bore, DI, 17:1 CR (key comp rings, 4mm oil ring) (replaces 6I2650)
1073565 Piston 6 4.7500 bore, DI, 17:1 CR, 1 valve rlf, (key comp, reverse twist intermediate)
1290360 Piston 6 4.7500 bore, DI, 15:1 CR (3300RS3 ring set) (replaces 6I3650)
Unique to 330/330L Excavators
1568263 Piston 6 4.7500 bore, DI, 16:1 CR (3300RS4 ring set) (replaces 1050185)
9S3068 Ring set 6 4.7500 bore; 2 rectangular compression, .218 oil (9S3029, 5S6750, 9S7788)
2W6091 Ring set 6 4.7500 bore; 2 rectangular compression, .125 oil (9S3029, 5S6750, 7E6047)
2W1709 Ring set 6 4.7500 bore; 2 keystone compression, .125 oil (2W1707, 2W1708. 7E6047)
2114321 Ring set 6 4.7500 bore, 1 keystone comp, 1 keystone inside bevel comp, 4mm oil (replaces 3300RS1)
3300RS2 Ring set 6 4.7500 bore; 2 keystone comp, reverse twist intermediate, 4mm oil (1006695, 1006694, 6I0497)
3300RS3 Ring set 6 4.7500 bore; 1 keystone comp, 1 rectangular comp, .125 oil (2W1707, 5S6750, 7E6047)
3300RS4 Ring set 6 4.7500 bore; 1 keystone comp, 1 rectangular comp, 4mm oil (2W1707, 5S6750, 6I0497)
7N9804 Piston pin 6 1.500 dia, 3.735 length
7N9805 Piston pin 6 1.700 dia, 3.730 length
9H4015 Retainer piston pin 12 use with 1.500 dia pin
1S9543 Retainer piston pin 12 use with 1.700 dia pin

1105800 Cylinder liner 6 4.7500 bore, uses 5P8768 liner oring kit (Liner only) [repl 2P8889]
5P8768 Cylinder liner oring kit 6 (3) 5S6670, (1) 2W6134
5S6670 Cylinder liner oring 18 Lower seal
2W6134 Cylinder liner oring 6 Upper filler band
BEARINGS
4W5738 Bearing main pair 7 Std, 3.5000 journal, 3.8160 housing bore, 1.130 length (replaces 8N8224)
8N8225 Bearing main pair 7 .010
8N8226 Bearing main pair 7 .020
8N8227 Bearing main pair 7 .030
2531APA 40 Bearing main pair 7 .040
2531APA 50 Bearing main pair 7 .050
6N8940 Thrust plate 2 .185 thick (replaces 6N4129)
9S3037 Thrust plate 2 .232 thick (replaces 6N4129)
1003652 Thrust plate 2 .214 thick (replaces 7N9342)
4W5739 Bearing rod pair 6 Std, 3.0000 journal, 3.2500 housing bore, 1.504 length (replaces 8N8220)
8N8221 Bearing rod pair 6 .010
8N8222 Bearing rod pair 6 .020
8N8223 Bearing rod pair 6 .030
7M4046 Bearing cam 4 1.008 OAL
9M5477 Bearing cam 1 1.135 OAL
8N0702 Bushing con rod 6 1.500 pin, 1.388 OAL, straight
8N1985 Bushing con rod 6 1.500 pin, tapered
8N0703 Bushing con rod 6 1.700 pin, 1.430 OAL, straight
8N1849 Bushing con rod 6 1.700 pin, tapered
GASKET & SEALS
GASKET NOTE For gasket sets: Call with Serial and Arrangement Numbers
8S1605 Gasket valve cover 1
1694200 Gasket oil pan 1 41" length [repl 12903357, 4M2969]
8S1965 Gasket oil pan 1 Spacer plate gasket, 22" length [New# 1694199]
9Y9895 Seal crankshaft front 1 2.625 shaft, 3.700 OD
2P3859 Sleeve crankshaft 1 Front, 2.502 shaft, 2.627 effective shaft
9S3111 Seal crankshaft rear 1 6.328 shaft, 7.336 OD, lip type seal
2P3858 Sleeve crankshaft 1 Rear, use with 9S3111 seal, 6.206 shaft, 6.328 effective shaft
4W0452 Seal crankshaft rear 1 6.198 shaft, 7.336 OD, directional type, late
7C4297 Seal crankshaft rear 1 6.202 shaft, 7.336 OD, directional type seal, late, double lip (4W0452 single lip)
CAMSHAFT
7E9980 Camshaft 1 [repl 5S3972, 7C3863, 7C3864, 8N3981] [4P2942, 9Y1722 cam kit]
7E7261 Camshaft 1 [OEM] Call for price and availability of remanufactured
1073144 Camshaft 1 [OEM] Call for price and availability of remanufactured
7S3161 Lifter 12 Solid type
VALVE TRAIN
CYLHEAD NOTE For complete and bare cylinder heads - Refer to Cylinder Head Catalog or Call with casting
6N9915 Valve intake 6 2.020 head dia, 5.369 length, .3717 stem, 30 deg, 2G (CAN USE 1007860)
DI: Natural
1007860 Valve intake 6 2.020 head dia, 5.350 length, .3717 stem, 30 deg, 2G, stellite (replaces: 6N9915, 2W2620, 7N0572)
DI: Turbo & Natural
5S6452 Valve intake 6 2.020 head dia, 5.510 length, .3717 stem, 30 deg, 2G
IDI: Natural
2W2621 Valve intake 6 2.020 head dia, 5.510 length, .3717 stem, 30 deg, 2G, Stellite (replaces 4W1670, 7S8809, 9N6117)
IDI: Turbo, Spark ignited short
7W7490 Valve intake 6 2.020 head dia, 6.437 length, .3717 stem, 30 deg, 2G
Spark ignited long

7N0573 Valve exhaust 6 1.896 head dia, 5.308 length, .3717 stem, 30 deg, 2G (CAN USE 1487455)
DI: Natural
1487455 Valve exhaust 6 1.896 head dia, 5.285 length, .3717 stem, 30 deg, 2G, stellite (replaces 1007861, 6N9
DI: Turbo & Natural
5S6449 Valve exhaust 6 1.896 head, 5.469 length, 0.3717 stem, 30 deg, 2G [can use 8N0875]
IDI: Natural
8N0875 Valve exhaust 6 1.896 head dia, 5.469 length, 0.3717 stem dia, 30 degree, 2G, stellite [repl 7S6767]
IDI: Turbo, Natural
2W2877 Valve exhaust 6 1.896 head dia, 5.469 length, .3717 stem, 30 deg, 2G
Spark ignited short
7W7491 Valve exhaust 6 1.896 head dia, 6.396 length, .3717 stem, 30 deg, 2G
Spark ignited long
1621589 Valve guide 12 0.3741 ID, 0.6583 OD, 2.781 length (repl: 1487425, 1487502, 1167553, 1090390, 1
5S4598)
4W9176 Valve guide 12 0.3750 ID, 0.6580 OD, 2.775 length (replaces: 7N4310) Natural gas, short valve engine
7E1551 Valve guide 12 0.3750 ID, 0.6580 OD, 2.640 length; Natural gas, short valve engine, improved cooling
9Y7895 Valve guide 12 0.3750 ID, 0.6580 OD, 3.700 length; Natural gas, long valve engine
2A4429 Valve lock 24 0.372 stem dia, 2G, 7 degree
7S7144 Valve spring 12 1.373 OD, .185 wire dia, 2.085 free
1W5300 Rotocap 12 Includes 6N7174 shield
1031800 Rotator 12 without shield [repl 8N7782, 5S5874]
CRANKSHAFT
4N7693 Crankshaft 1 [2W7458] Flange: Flat, 9 bolt holes; Snout: Tapered, 1 keyway, 1 bolt hole
1678123 Vibration damper 1
CONNECTING ROD
0R0915 Connecting rod 6 Reman, 1.50 pin tapered; cast# 8N1720, part# 8N1984; bushing 8N1985
5S6360X Connecting rod 6 Reman, 1.50 pin straight; cast# 2P0933, 6N8068; part# 8N1984; bushing 8N0702
0R0914 Connecting rod 6 Reman, 1.70 pin tapered; cast# 8N1720, part# 8N1721; bushing 8N1849
5S2793X Connecting rod 6 Reman, 1.75 pin straight; cast# 2P0933, 6N8068; part# 8N1721; bushing 8N0703
1P9956 Bolt connecting rod 12
5S6348 Nut connecting rod 12
FUEL / INJECTOR
0R4124 Injector 6 Reman (7W7038) [changes to 1705187]
7W7045R Injector 6 Reman (0R3591) [changes to 1705181]
0R3417 Injector 6 Reman (8N7003, 8N7002)
8N7005R Injector 6 Reman (0R3418)
0R4336 Injector 6 Reman (1007552)
0R4340 Injector 6 Reman (1007559)
0R4341 Injector 6 Reman (1007560)
0R4342 Injector 6 Reman (1007561)
0R8782 Injector 6 Reman (1007563)
0R8783 Injector 6 Reman (1007564)
0R3568 Injector 6 Reman, pencil (0R3568, 7N0449) marked: 22514
1705181 Injector 6 New (repl 0R3591, 7W7045)
1705187 Injector 6 New (repl 0R4124, 7W7038)
8N8796 Nozzle service group 6 Contains: capsule nozzle, orings, seal ring
8M1584 Nozzle service group 6 Contains: capsule nozzle, orings, seal ring
3S6638 Nozzle service group 6 Contains: capsule nozzle, orings, seal ring
COOLING SYSTEM
7010X Water pump 1 Remanufactured; OEM: 7N5909, Cast: 2P0671; Two large bottom holes
7007X Water pump 1 Remanufactured; OEM: 6N8413, Angled teeth, One small and One large bottom hole
7007GX Water pump 1 Remanufactured; OEM: 4P9862, Straight teeth, One small and One large bottom hole

7013X Water pump 1 Remanufactured; OEM: 0R9497, 0R1003; Small bearing; One small and One large bottom hole
7014X Water pump 1 Remanufactured; OEM: 0R9785, oR1002; Angled teeth, bolt on center gear; One small & large hole
1118010 Thermostat 1 175 degree
TURBO / AIR
TURBO TURBOCHARGER New or remanufactured available, call for pricing
MANIFOLD MANIFOLD Manifolds and elbows available, call with application
1S4295 Gasket turbo mtg 1 Dual throat, turbo to exhaust manifold
1S6595 Gasket turbo oil 1 Supply
1S4810 Gasket turbo oil 1 Drain
7L0520 Stud manifold exhaust 3/8" x 2"
4S6137 Stud manifold exhaust 3/8" x 3.2"
2N2766 Nut turbo mounting Turbo mounting and Exhaust manifold [new# 1687800]
8M7145 Washer 3/8
BLOCK
7N7998 Spacer plate 1 Steel
