Komatsu S6D108 connecting rod, 6221-31-3100

Specifications

Forged connecting rod
1 S6D108 connecting rod
2.Warranty: 1 year
3.CNC Productline.
4.20 years experience.



Komatsu S6D108 connecting rod assy, 6221-31-3100

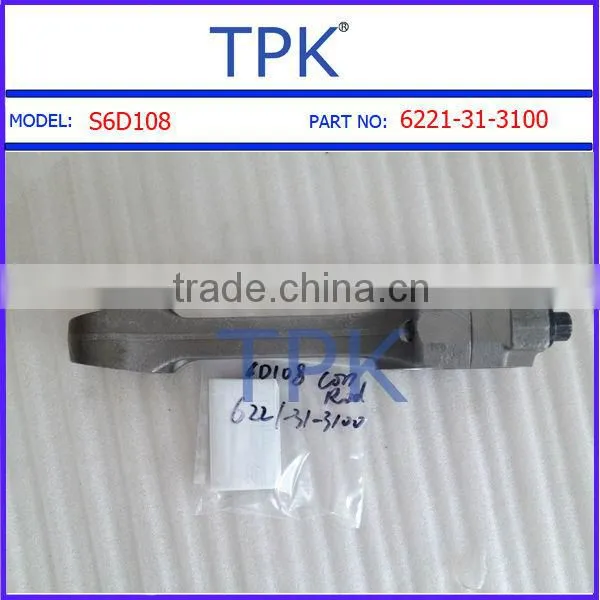

The following is the special picture for S6D108 CON ROD ASSY:









S6D108  ENGINE PARTS:





CYLINDER KIT
KMP6221 Cylinder kit 6
6221-31-2110 Piston body 6
6221-31-2410 Piston pin 6
04065-04518 Retainer piston pin 12
6221-31-2200 Ring set 6
6222-23-2231 Cylinder liner 6

CYLINDER KIT
KMP6222 Cylinder kit 6
6222-31-2110 Piston body 6
6221-31-2410 Piston pin 6
04065-04518 Retainer piston pin 12
6221-31-2200 Ring set 6
6222-23-2231 Cylinder liner 6

CYLINDER KIT
KMP6223 Cylinder kit 6
6222-33-2110 Piston body 6
6221-31-2410 Piston pin 6
04065-04518 Retainer piston pin 12
6221-31-2200 Ring set 6
6222-23-2231 Cylinder liner 6
BEARINGS

BEARINGS
6221-21-8010 Bearing main pair 7 Std
6221-29-8010 Bearing main pair 7 0.25mm
6221-28-8010 Bearing main pair 7 0.50mm
6221-27-8010 Bearing main pair 7 0.75mm
6221-26-8010 Bearing main pair 7 1.00mm
6221-21-8050 Bearing thrust pair 1 Std
6221-29-8050 Bearing thrust pair 1 0.25mm
6221-28-8050 Bearing thrust pair 1 0.50mm
6221-27-8050 Bearing thrust pair 1 0.75mm
6221-26-8050 Bearing thrust pair 1 1.00mm
6222-31-3040 Bearing rod pair 6 Std
6222-39-3040 Bearing rod pair 6 0.25mm
6222-38-3040 Bearing rod pair 6 0.50mm
6222-37-3040 Bearing rod pair 6 0.75mm
6222-36-3040 Bearing rod pair 6 1.00mm
6221-31-3130 Bushing con rod 6
6221-21-1410 Bearing cam 4
GASKET & SEALS
6221-K1-9900 Set cylinder head 1
6221-K2-9900 Set block 1
6221-17-1810 Gasket cylinder head 1
6136-11-8814 Gasket valve cover 1
6221-11-5813 Gasket manifold exhaust 6
6221-11-4810 Gasket manifold intake 6
6136-21-5821 Gasket oil pan 1
6136-22-3510 Seal crankshaft front 1
6221-21-4522 Seal crankshaft rear 1
CAMSHAFT
6221-41-2110 Lifter 12
6221-41-3110 Push rod 12
VALVE TRAIN
6221-41-4110 Valve intake 6 Intake
6221-41-4211 Valve exhaust 6 Exhaust
6136-42-4520 Valve keeper 24
6221-19-1311 Valve guide 12
6140-41-4540 Valve stem seal 6
6221-41-4410 Valve spring 12
6221-41-4510 Spring seat upper 12
6221-13-1360 Valve seat 6 Intake
6221-11-1320 Valve seat 6 Exhaust

CRANKSHAFT
6222-31-1102 Crankshaft 1
OIL / LUBE SYSTEM
6221-51-1100 Oil pump 1
FUEL / INJECTOR
6221-11-3100 Injector assembly 6
6221-11-3120 Injector nozzle 6
COOLING SYSTEM
6221-61-1102 Water pump 1
D57S-1B
6221-61-1502 Water pump 1
WA380-3
6221-61-1400 Water pump 1
WA320-3
600-421-6410 Thermostat 1
600-421-6310 Thermostat 1
WA380-3
6136-11-6810 Gasket thermostat hsg 1 Oring
6138-11-6810 Gasket thermostat hsg 1 Oring
WA380-3



Packing:



1: TPK packing

2: according with your requirments



Shipping



(1): By sea

(2): By air

(3): By express (DHL, FEDEX, TNT, EMS... )



1: 24 hours online service by Skype, Msn, Yahoo, QQ...

2: email replaying in 8 hours after got your email.



Guangzhou TPK Diesel Parts Co.,Ltd, Build in 1996, is a professional  manufacturer on Diesel Piston, Piston ring, Cylinder Liner, Head Gasket & Overhaul Gasket Kit. TPK has been cooperating with OEM factory in China for several years, running business mainly in imported diesel engines ( Such as CAT, CUMMINS, KOMATSU, HINO, DAEWOO, ISUZU, MITUSUBISHI, NISSAN, YANMAR, and TOYOTA). All products in TPK have passed the national quality supervision on combustion engines and obtained certificates from ISO9002.



Till now, TPK has four storehouses in Guangzhou, occupying an area of over 5,000 square meters. The number of employees in TPK reaches up to 100, among which include 20 sales personnel in China, 15 sales personnel outside China, 10 QC personnel. TPK products command a ready market in Europe, Middle East, South America, North America, and Southeast Asia and are well received.



With the principles of international brand, good quality, shared resources, and serving the world, TPK endeavors to provide perfect accessories replacement solutions for customers. TPK is ready to cooperte with you to reach a win-win future.
