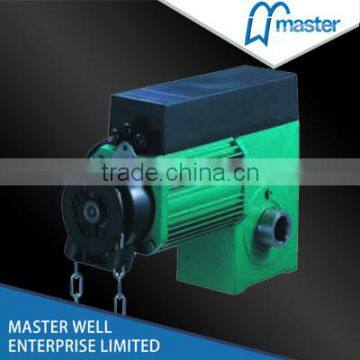

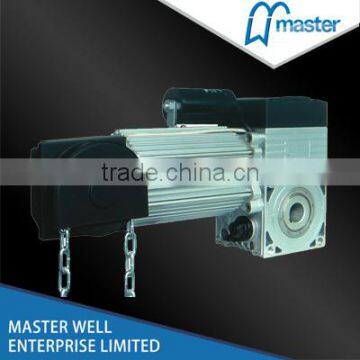

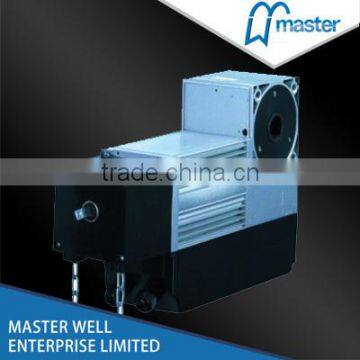

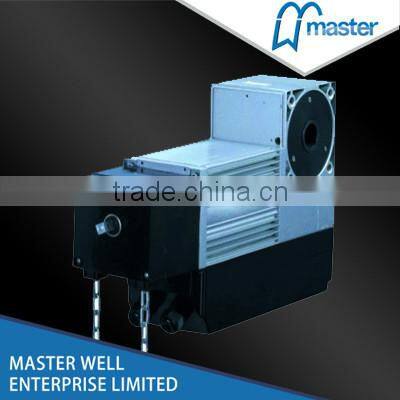

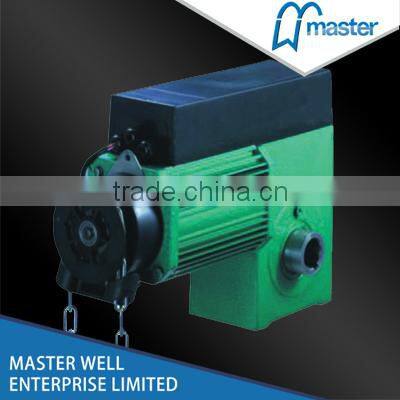

Description
Model Item: MO.SIF30
Max lifting weight: 250kg
supply voltage: AC 220V
motor power: 200w
torque: 30N.M
current: 2.0A
Features
1) Double limit switch devices: avoid impacting the top limit, carry out soft stop. Very convenient in adjusting location.
2) Chain-driving: high gear train efficiency. The organ inside will be locked within a second in case of sudden disconnection of electromotor driving chain occurs.
3) Brake device adopt strengthened fibre.High friction factor, low noise, low abrasion and stable braking performance under high speed running and heavy load.
Other model
Model Item: MO.SIF50
Max lifting weight: 200kg
supply voltage: AC 220V
motor power: 450w
torque: 50N.M
current: 2.0A

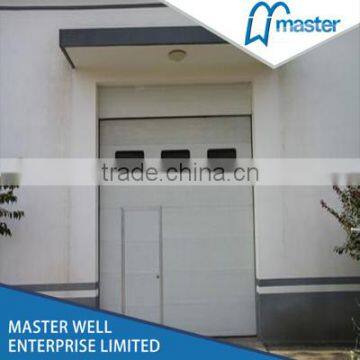

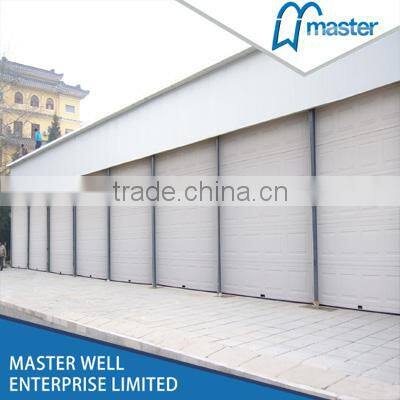

We also can supply the industrial door:
| Door Panels | Panel Style | Finger protection |
| Panel Construction | Steel+PU foam+Steel | |
| Panel Thickness | 40mm/50mm | |
| Panel Max Height | 550mm | |
| Panel Max Length | 12m | |
| Panel Color | White and wood like color,other color can be customized | |
| Panel Surface Style | Flat/ Line / Square | |
| Panel Steel thickness | 0.35mm/0.45mm | |
| Door Hardwares | Tracks style | Double track or Single track |
| Track cover | Available | |
| Track and track cover surface finish | Bright Zinc Galvanized | |
| Hinges and roller brackets surface finish | Bright Zinc Galvanized | |
| Top/bottom stretch | Plastic or Aluminum | |
| Top/Side/Bottom rubber seals | included | |
| Safety system | Spring break safety brackets | Available |
| Cable break safety system | Available | |
| Door Motor | Motor style | Chain |
| Motor Voltage | 110V or 220V | |
| Motor Force | 800N/1000N/1200N/1500N/1800N | |
| Motor speed | 1400--3200r/min | |
| Motor sensor/ Alarming/ wall brackets/ Keypad/ Back battery | available |
About Master Well:
We have been in motor for years, including sliding gate opener, garage door opener, tubular motor for roller shutter, industrial door motor. Hope we can be helpful in your business.
We are the team, just contact us to have a win-win relationship!
We are always ready to support for you to provide the professional service for you.
Q&A |
|
|
|
|
|
Q1. How can I get a sample of garage door for quality check? |
|
||||
A:1. Please give the exactly size of your samples door, also the color, design , etc.We can according to your specification and make a sample for you. |
|
||||
Q2. How can I get a price of needed garage door? |
|
||||
A: 1. Please give the exactly size and quantity of your required door. We can give you a detail quotation based on your requirements. |
|
||||
2. If you don't know the size and quantity you need, tell us which country does the target market. We will make a quotation according to our experience for different country. |
|
||||
Q3. I don't know the detail information, how can i order this from you. |
|
||||
A: It's the best way if you can send us the size, so we can according to your size to make a sutiable garage doors for check the quality, Also will give you the detail information of ours. If you still have any confusion, just contact us, we would like to be helpful. |
|
||||
Q4. I am a small wholesaler, do you accept small order? | |||||
A: It's no problem if you are a small wholesaler, we would like to grow up with you together. | |||||
Q5. We want be your agent of our area. How to apply for this? | |||||
A: Please send your idea and your profile to any e-mails of us. Lte's cooperate. | |||||
Q6.Can you make OEM service? | |||||
A:Yes. We can accept OEM service. Also we have our own designer team. So it's also welcome to choose our OEM products. | |||||
Q7. Do you have a MAQ requirements? | |||||
A.No. We don't have any special requirements on MOQ. Only 1 set is also available. But if your want more, we would like to give you more discount. | |||||
| |||||
| |||||
Q8. Which kinds of payment you accept? | |||||
A: We usually accept T/T in advance, L/C for large sum, Westion Union, etc. If you prefer other payments terms, please discuss with us. | |||||
Q9. Do you have any certificate of your garage door? | |||||
A:Yes. We have CE Certificate for our garage door series. | |||||
