S6D114-1, SA6D114-1, SAA6D114E-2 Connecting rod, con rod, bush, bolt

Specifications

Forged connecting rod
1 S6D114 connecting rod
2.Warranty: 1 year
3.CNC Productline.
4.20 years experience.

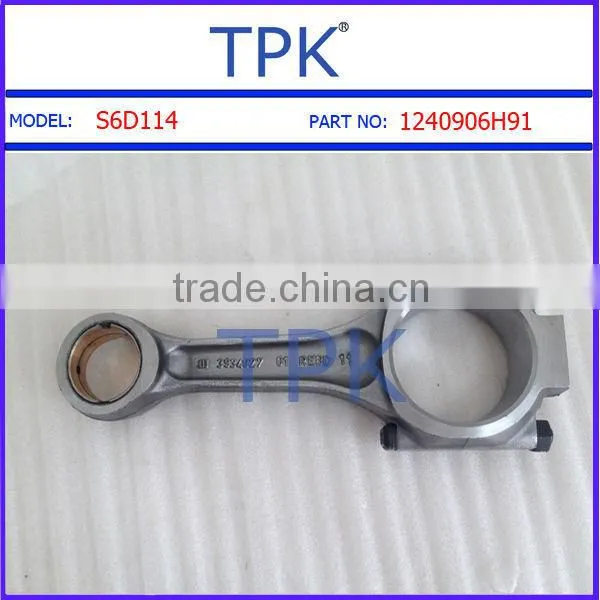

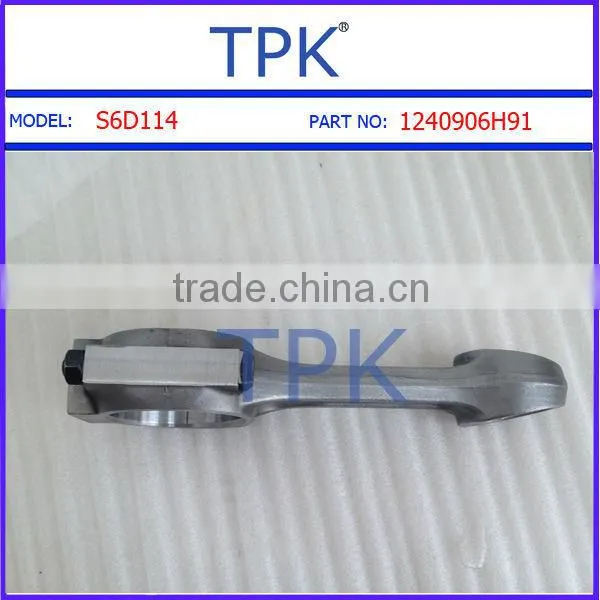

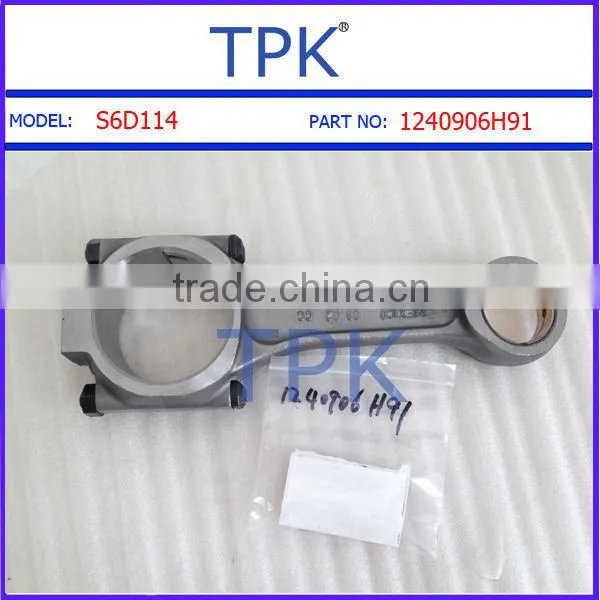

Komatsu S6D114 connecting rod, 6742-31-3100,1240906H91



The following is the special picture for S6D114 CON ROD ASSY:









S6D114  ENGINE PARTS:



CYLINDER KIT
1307230H91 Cylinder kit 6
1304902H91 Piston kit 6 With pin & retainers
6742-01-5474 Piston pin 6
6742-01-5309 Retainer piston pin 12
1241748H92 Ring set 6 1 cyl set
6742-01-1500 Cylinder liner 6 With sealing rings
6742-01-1520 Cylinder liner oring 6 Seal

CYLINDER KIT
LK6743 Cylinder kit 6
6743-31-2101 Piston kit 6 With pin & retainers
6743-31-2110 Piston body 6
6742-01-5474 Piston pin 6
6742-01-5309 Retainer piston pin 12
1241748H92 Ring set 6 1 cyl set
6742-01-5159 Cylinder liner 6 With sealing rings
6742-01-1520 Cylinder liner oring 6 Seal

CYLINDER KIT
6742-01-5069 Cylinder kit 6
6742-01-5067 Piston kit 6 With pin & retainers
6742-01-5474 Piston pin 6
6742-01-5309 Retainer piston pin 12
1241748H92 Ring set 6 1 cyl set
6742-01-1500 Cylinder liner 6 With sealing rings
6742-01-1520 Cylinder liner oring 6 Seal
BEARINGS

BEARINGS
6742-01-5199 Bearing main set 1 Std
6742-01-5233 Bearing main set 1 0.25mm
6742-01-5240 Bearing main set 1 0.50mm
6742-01-5287 Bearing main set 1 0.75mm
6742-01-5288 Bearing main set 1 1.00mm
6742-01-5272 Thrust washer 1 0.25mm
6742-01-5442 Thrust washer 1 0.50mm
6742-01-2750 Bearing rod half 12 Std
6742-01-2810 Bearing rod half 12 0.25mm
6742-01-2820 Bearing rod half 12 0.50mm
6742-01-2830 Bearing rod half 12 0.75mm
6742-01-2840 Bearing rod half 12 1.00mm
6742-01-2740 Bushing con rod 6
6742-01-5160 Bearing camshaft 7
GASKET & SEALS
6742-01-4280 Set cylinder head 1
6742-01-5140 Set conversion 1
6742-01-5582 Gasket cylinder head 1
6742-01-0710 Gasket valve cover 1
6742-01-4010 Gasket manifold exhaust 6
6741-11-4510 Gasket manifold intake 2
6742-01-5308 Gasket oil pan 1
6742-02-1110 Seal crankshaft front 1
6735-K2-3001 Seal crankshaft rear 1
6736-39-1130 Seal crankshaft rear 1 Wet housing
6736-39-1140 Seal crankshaft rear 1 Kit with sleeve, Dry
CAMSHAFT
6732-41-2112 Lifter 12
6742-01-1250 Pushrod 12
VALVE TRAIN
6742-01-0150 Valve intake 6
6742-01-3000 Valve exhaust 6 Kit
6742-01-2990 Valve lock 24
6742-01-3240 Valve guide 12
6742-01-3020 Valve spring 12
6742-01-3030 Valve spring seat 12 Upper
1241223H2 Valve insert 6 Intake

1307586H1 Valve insert 6 Exhaust
CRANKSHAFT
6742-01-1570 Crankshaft 1
OIL / LUBE SYSTEM
6742-01-5201 Oil pump 1
FUEL / INJECTOR
6742-01-5203 Injector 6
Group 1
1304932H1 Injector assembly 6
Group 2
1304899H1 Injector assembly 6
Group 3
COOLING SYSTEM
6742-01-5040 Water pump 1 Heavy duty
Hardened pulley
6742-01-5578 Water pump 1 Heavy duty
Long nose
6742-01-1900 Thermostat 2
6742-01-0830 Gasket thermostat hsg 1





Packing:



1: TPK packing

2: according with your requirments



Shipping



(1): By sea

(2): By air

(3): By express (DHL, FEDEX, TNT, EMS... )



1: 24 hours online service by Skype, Msn, Yahoo, QQ...

2: email replaying in 8 hours after got your email.



Guangzhou TPK Diesel Parts Co.,Ltd, Build in 1996, is a professional  manufacturer on Diesel Piston, Piston ring, Cylinder Liner, Head Gasket & Overhaul Gasket Kit. TPK has been cooperating with OEM factory in China for several years, running business mainly in imported diesel engines ( Such as CAT, CUMMINS, KOMATSU, HINO, DAEWOO, ISUZU, MITUSUBISHI, NISSAN, YANMAR, and TOYOTA). All products in TPK have passed the national quality supervision on combustion engines and obtained certificates from ISO9002.



Till now, TPK has four storehouses in Guangzhou, occupying an area of over 5,000 square meters. The number of employees in TPK reaches up to 100, among which include 20 sales personnel in China, 15 sales personnel outside China, 10 QC personnel. TPK products command a ready market in Europe, Middle East, South America, North America, and Southeast Asia and are well received.



With the principles of international brand, good quality, shared resources, and serving the world, TPK endeavors to provide perfect accessories replacement solutions for customers. TPK is ready to cooperte with you to reach a win-win future.
