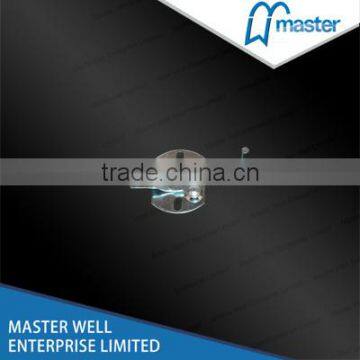

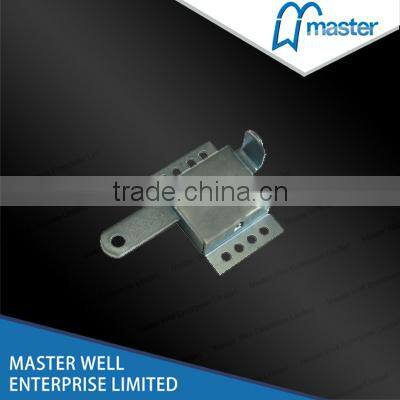

Top quality garage door lock
Specifications
For wooden or steel doors
For single-leaf steel doors
Prepared for profile cylinders
With key action
Stainless steel Deadbolt 2-tuens
Technical data
Follower: 8mm/9mm
Distance: 85mm
Backset: 45MM/50MM/60MM
Forend
Type: round head/square head
Thickness:3mm
Width: 24mm
Forend finish
Stainless steel: stain stainless steel polished stainless steel
Vacuum metalling: stain brass/PVD/AB/AC
Accessories:
Striking plate
Lock and striking plate fixing screws

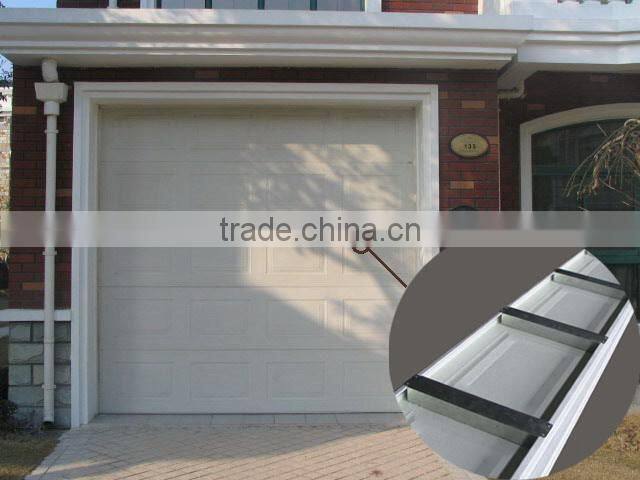

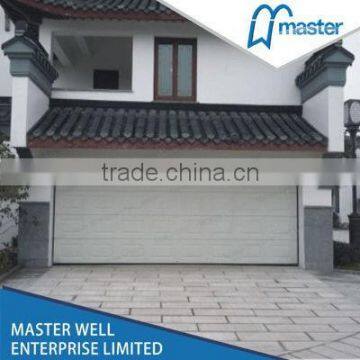

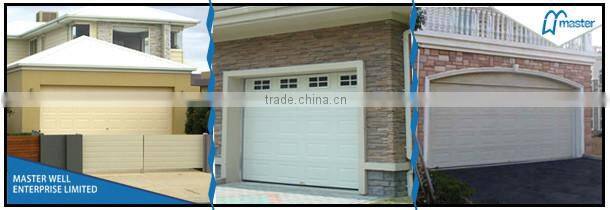

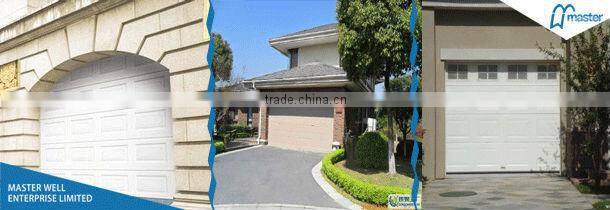

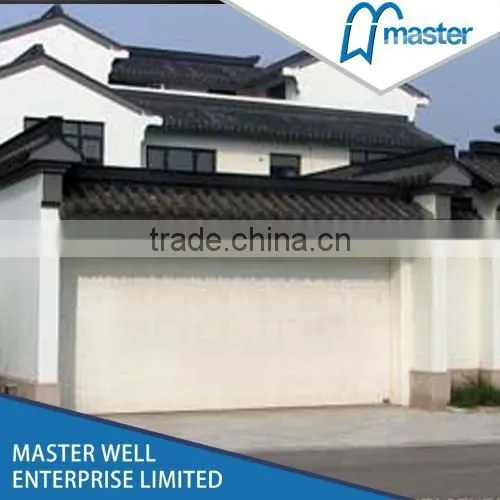

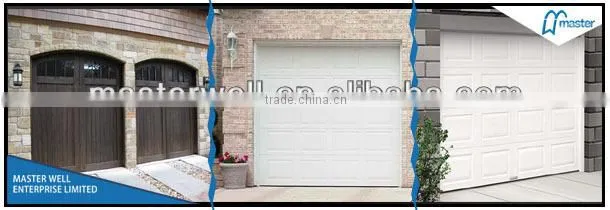

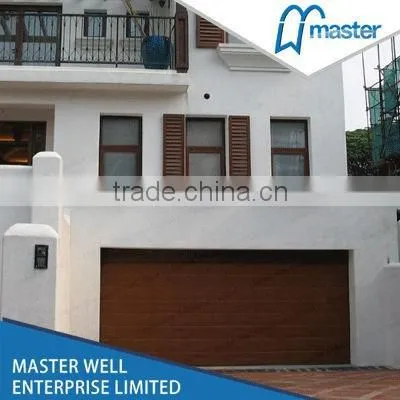

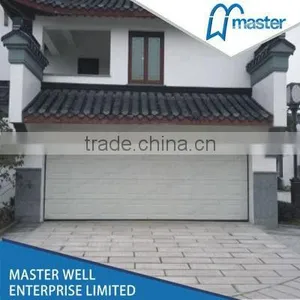

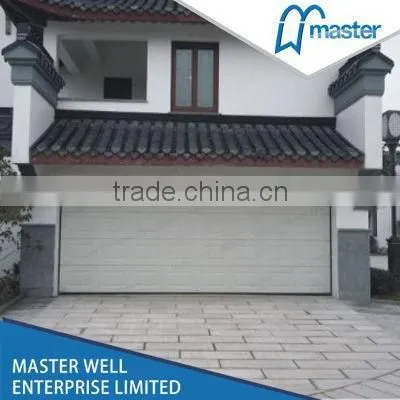

Garage door
Features:
- PU Foamed Sectional panels: MR.SF40S / MR.SF40 / MR.SN40 / MR.SN50D
- Material: 0.35 - 0.50mm Galvanized steel, with PU foaming insulation inside
- Section Panel thickness: 40mm / 50mm
- Max available door width: 5500mm
- Max available door height: 3000mm
- Max available residential door area: 15m2
- Front side design: Wood grain, with Grillwork design, white color
- Backside design: Wood grain, with Stripe design, white color

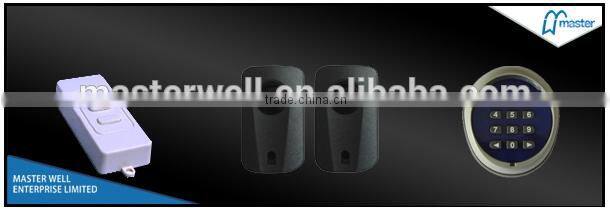

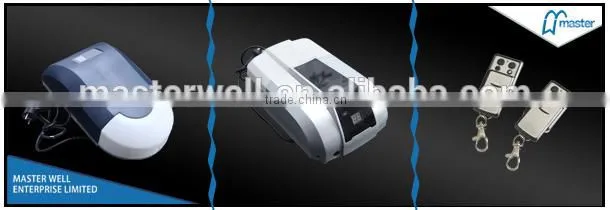

- Opening way: Remote control, Wall switch or Manual operation

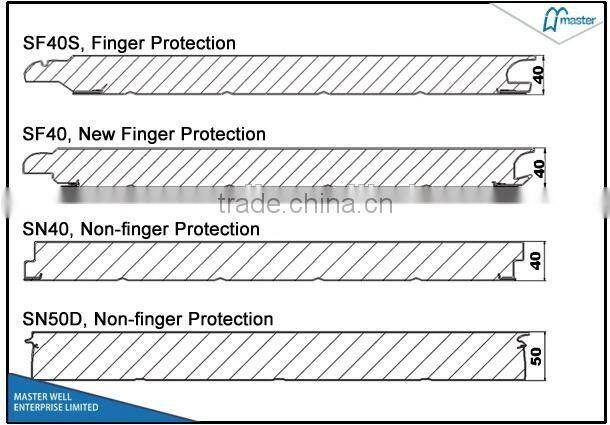

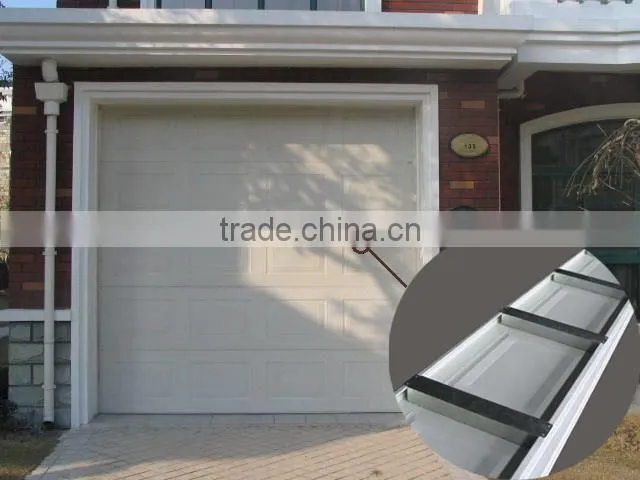

Panel Design:
40mm Finger protection panels
40mm Non-finger protection panels
50mm Non-finger protection panels for industrial use
1) Material: Galvanized steel with PU foaming inside
2) Steel thickness: 0.35mm (Standard)
3) Construction: sandwich/ steel-foaming-steel/ triple layers
4) Surface finishes: wood grain, orange peel, no grain
5) Design: Backside: orange peel, white color, 4 stripes
Front side: wood grain only, wood grain with rectangle, wood grain with stripes, orange peel only, orange peel with rectangle, orange peel with stripes, flush with rectangle and reinforcing line, fold only, flush onl
6) Panel length: 12000mm at max
7) Panel width: 430mm-550mm, adjusted
8) Standard color: White RAL9016
9) Stocked solid color: Brown RAL8014, Anthracite grey RAL7016, Silver RAL9006, Light beige RAL1019, Ebony RAL9004, Red RAL3000, Blue RAL5015
10) Stocked Timber color: Mahogany, Gold oak, Black walnut, Dark oak
The hardwares:
1) Standard Single Track (SST): 1 pair vertical track, 1 pair horizontal track, needs min headroom 350mm;
2) Standard Double Track (SDT): 1 pair vertical track, 1 pair horizontal track, 1 pair LHR horizontal track, needs min headroom 150mm;
3) L Profile support with Single Track (LST): 1 pair vertical track, 1 pair horizontal track with L profile support, needs min headroom 350mm;
4) L Profile support with Double Track (LDT): 1 pair vertical track, 1 pair horizontal track, a pair LHR horizontal track, with L profile support, needs min headroom 200mm
5) L Profile support with Double Track & ABS curve (SLDT) : 1 pair vertical track, 1 pair horizontal track, a pair LHR horizontal track, L profile with ABS curve, needs min headroom 200mm

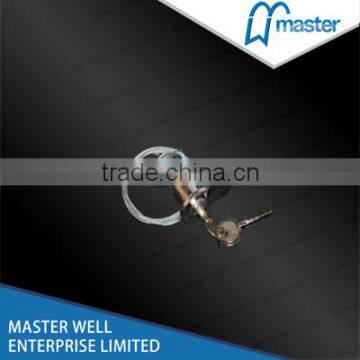

6) Emergency lock for manual operation when power off
7) Torsion spring, or Tension spring

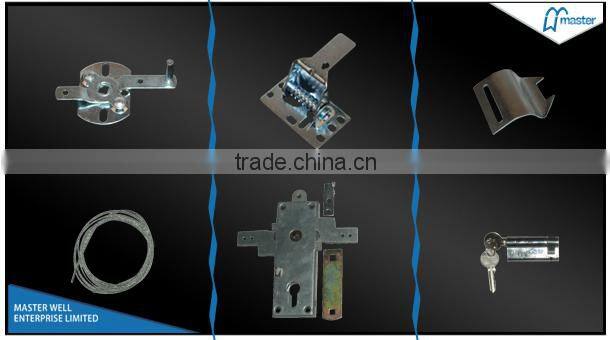

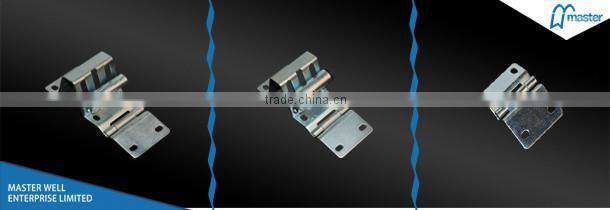

8) Hinges, Top roller brackets, Bottom roller brackets, Rollers, Cable drum with cable, Central bracket with bearing, Mounting brackets and other accessories for a complete set.

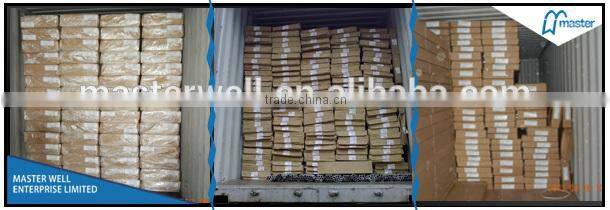

top quality garage door lock:If less than one container, the carton box and wood cases are needed; If by full container, the carton box only is needed.
Master Well Enterprise Limited is a truly corporation specializing in doors& windows automatic system.the products including doors and windows,door related accessories and kinds of door openers.Relying on our excellence of business perfomance and R&D,we have enjoyed globally recognized reputation in successfully providing quality products at a competitive price and professional technical service to a wide range of clients worldwide.
1. Your inquiry related to our products or prices will be replied within 24hours
2. Well-trained and experienced staffs to answer all your enquiries in fluent English.
3. Offering the support to solve the problem in the application or selling period.
4. Competitive prices based on same quality;
5. Guarantee samples quality same as mass production quality. 6. Free samples can be offered for your test.
1.Good quality with super service.
2.Prefessional tech team and after-sale team.
3.Strickly technological process.
4.Exclusive package and shipment service.
5.Various kinds of products with different specifications.
- We achieved win-win in business, we are also friends.
--Mr Sam Leo-Andoh
- MASTER can offer a wide variety of garage doors for homes and businesses. Their doors make our company perfect solution to our customers.
---Mr Adam Seipl
- They are reliable business partner. Garage doors from MASTER add a functional and distinctive appearance to our business.
--- Mr. Arbi Sofian
- I visited their factory and checked their garage doors. They are very professional. I placed my order to them immediately.
---Edward Grullon
