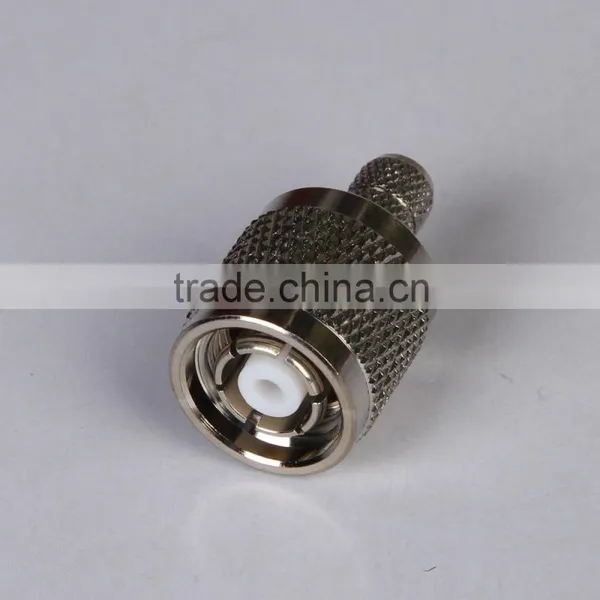

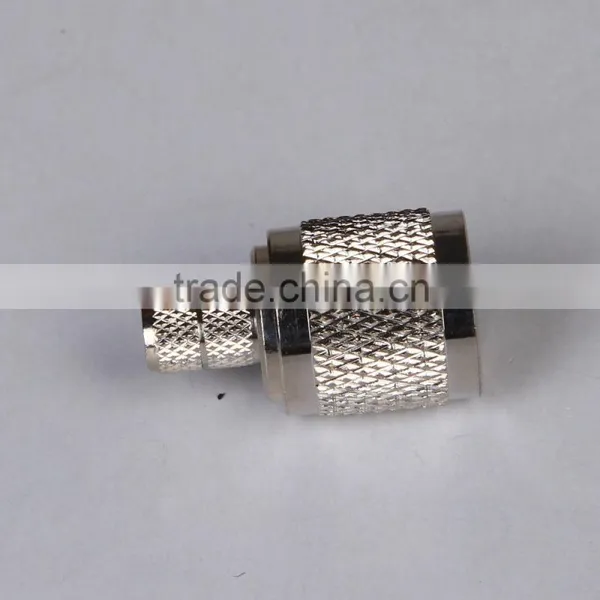

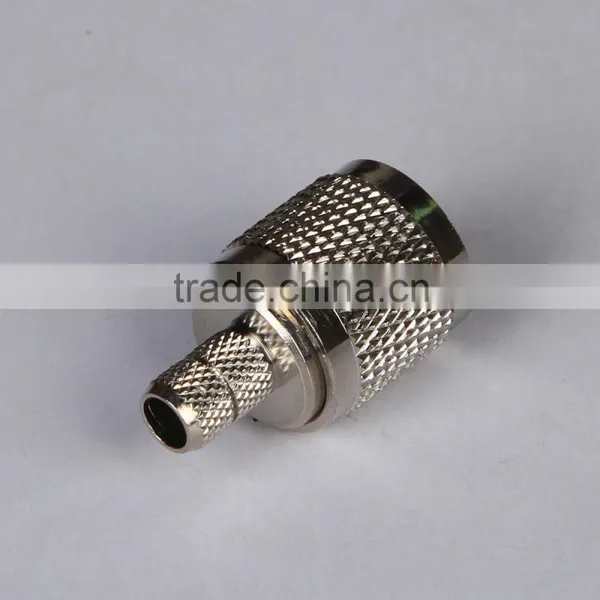

TNC Male Connector Crimp/Solder Attachment For RG58, LMR-195 Cable
USD $0.5 - $2
/ Piece
10 Pieces(Min.Order)
- 10000 Piece / Pieces per Month
- Hongkong
- Credit Card
You May Like
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | SH-Link | Model Number: | TNC-C-K4D |
| Type: | TNC | Application: | RF | Gender: | Female |
Product Description
| MAJOR TECHNICAL CHARACTERISTICS | ||
| Temperature range | -55—+155℃(PE Cable -40—+85℃) | |
| Vibration | 150m/S²(10-2000Hz)15g | |
| Impedance | 50Ω | |
| Frequency range | DC-11GHz | |
| Working voltage | 500V r.m.s at sea level | |
| Withstanding voltage | 1500V r.m.s at sea level | |
| Contact resistance | ||
| Center contact | ≤10 mΩ | |
| Outer contact | ≤2.5 mΩ | |
| Insulation resistance | ≥5000MΩ | |
| Center conductor retention force | ≥0.57N | |
| Insertion loss | ≤0.20dB | |
| Voltage Standing Wave Ratio | ||
| Straight | ≤1.22/3GHz | |
| Right angle | ≤1.30/3GHz | |
| Durability(mating) | ≥500(Cycles) | |
| Material & Plating | ||
| body | brass | nickel plated |
| pin contact | brass | gold or silver plated |
| socket contact | beryllium-copper | gold or silver plated |
| resilient contact | Tin bronze | gold plated |
| insulator | PTFE | |
| crimp ferrule | copper alloy | nickel plated |
| O-ring sealing | 6146 silicone rubber | |
| Applicable standard | MIL-C-39012 | |
| CECC 22200 | ||
| IEC-60169-17 | ||
