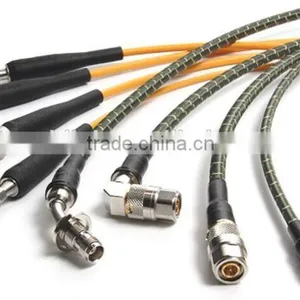

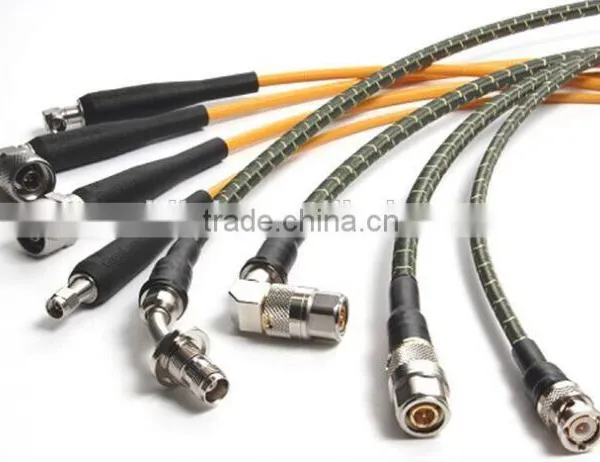

40GHz RF Testing Cable features:
1.Wide operating frquency band
2.Excellent shielding efectiveness
3.Low VSWR
4.Low cost
40GHz RF Testing Cable Applications:
1.Polyethylene Coaxial Cable Assemblies are used for equipment connection, base station transmitter, receiver and antenna connection between the main feeder and so on.
2.PTFE Coaxial Cable Assemblies are used for industrial and communication testing, devices jumper connection, indoor distribution and so on.
3.LD PTFE Cables are used for communication, digital transmission, microwave testing, military equipment, radio and television, research institute(high requirements about phase-precision, low-loss).
| Testing Cable Assembly specifications: |
| 1. Frequency Range(GHz): DC-40G |
| 2. VSWR(max): 1.30 |
| 3. Insertion Loss(dB):-3.11dB/m |
| 4. Connectors: SMA-F/SMA-F |
| 5. Cable Connection: Inner conductor welding, outer conductor welding |
| 6. Dimension(M): Per the customers' requirement |
| Cable Electrical & Mechanical specifications: |
| 1. Impedance(Ω): 50 2. Capacitance(Pf/M): 97 |
| 3. Time Delay(ns/m): 4.7 4. Withstanding Voltage(rms/min): 5000V |
| 5. Insulation Resistance(MΩ/KM min): 1500 6. Velocity of Propagation: 70% |
| 7. Operating Temp.(°c): -55- +155 8. Minimum Bend Radius(mm): 25 |
| 9. Max Tensile Strength(kgs): 14.8 10. Weight(g/m): 65.3 |
| Cable Attenuation: |
| 1. Insulating Layer: PTFE 2. Inner Conductor(mm): φ0.94 |
3. Outer Diameter(mm): φ4.95 4. Attenuation(dB): 1.07 |
If you have any question,please feel free contact me.
MP:+86 13612903925
whatsapp:+86 13612903925
