Home > Lights & Lighting > LED Interior Lighting > LED Bulb Light > 3W High Intensity BAY15d Led Marine Navigation Lights

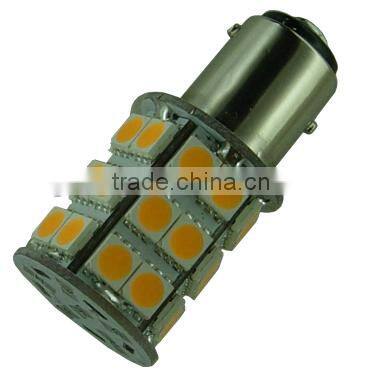

3W High Intensity BAY15d Led Marine Navigation Lights

Name: 3W High Intensity BAY15d Led Marine Navigation Lights
Brand: Gapray
SKU: 104650331
Availability: InStock

3W High Intensity BAY15d Led Marine Navigation Lights thumbnail-1

3W High Intensity BAY15d Led Marine Navigation Lights photo-1

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

LED Light Source:

SMD5050

Input Voltage(V):

12V AC/DC 10-30V DC

Lamp Power(W):

3.1

Contact Supplier Request Quote Chat Now

Shenzhen Gapray Lighting Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source SMD5050

Input Voltage(V) 12V AC/DC 10-30V DC

Lamp Power(W) 3.1

Lamp Luminous Flux(lm) 406-420

Color Temperature(CCT) Other, all color are available

Working Temperature(℃) -30, 65

Working Lifetime(Hour) 50000

Lamp Body Material Other, PCB+Diode

Certification CE

Base Type BA15d

Place of Origin Guangdong, China

Brand Name Gapray

Model Number 15SC-30ACW-30D

Very bright 30LEDS SMD5050 BAY15D LED replacement bulbs for use in most navigation lights manufactured by Hella Marine, AquaSignal, Perko and other manufacturers.

Product Code	Base	Voltage	Current	Watts (Typ.)	LED Q'ty	LED Encapsu-lation	CCT(K)/ Color	Lumens (Typ.)	MOQ(PCS)
Product Code	Base	Voltage	Current	Watts (Typ.)	LED Q'ty	LED Encapsu-lation	CCT(K)/ Color	Lumens (Typ.)	MOQ(PCS)
15SC-30ACW-30D	BA15s	10-30VDC	236mA	3.1	30	SMD5050	6791K	420	100
15SC-30AWW-30D	BA15s	10-30VDC	240mA	3.1	30	SMD5050	3000K	406	100
Y15C-30ACW-30D	BAY15d	10-30VDC	236mA	3.1	30	SMD5050	6791K	420	100
Y15C-30AWW-30D	BAY15d	10-30VDC	240mA	3.1	30	SMD5050	3000K	406	100
15DC-30ACW-30D	BA15d	10-30VDC	236mA	3.1	30	SMD5050	6791K	420	100
15DC-30AWW-30D	BA15d	10-30VDC	240mA	3.1	30	SMD5050	3000K	406	100

Our high output 5050, 386 Lumen lamp (CW) is suitable for use in most white navigation light fittings that use traditional incandescent bulbs and is ideal for both 12 Volt & 24 Volt systems.

These lamps are designed to minimise EMI, unlike other similar looking lamps sold for non marine use. We utilise specially designed PCB layouts which avoid tracks acting as antenna that radiate EMI (electromagnetic interference).

The cool white LED lamp can be used for stern, steaming and mast head anchor light elements of Tri-colour lights for boats up to 20 metres. Do not use cool white lamps behind separate red or green lens or combined bi colour lights as the output colours will not be correct.

In warm white it can be used in bi and tri colour lights for boats up to 20m.

In red and green the lamp is suitable for installation in port and starboard lights respectively for all boats up to 20m.

Regulated from 10-30V DC

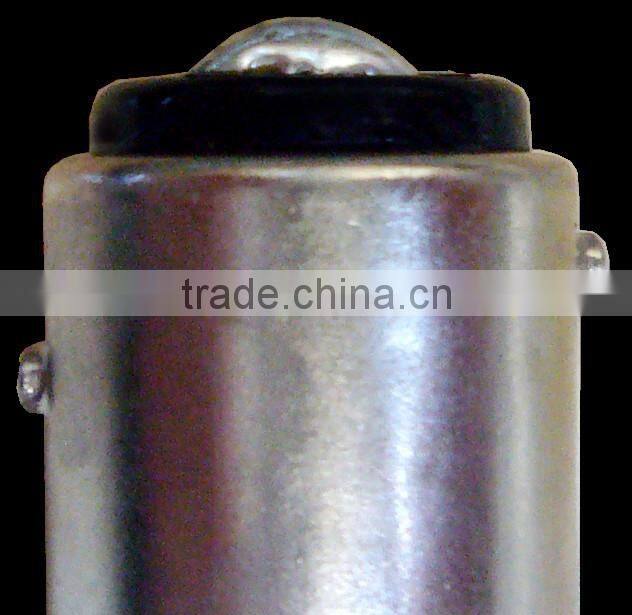

Bay15d cap (15mm diameter, double pole with offset pins)
Diameter - 22mm, length - 46mm (excluding cap)
3.1W power consumption
2 year guarantee

These lamps are not polarity concious as they are fitted with a diode bridge rectifier and can therefore be connected either way without damage.

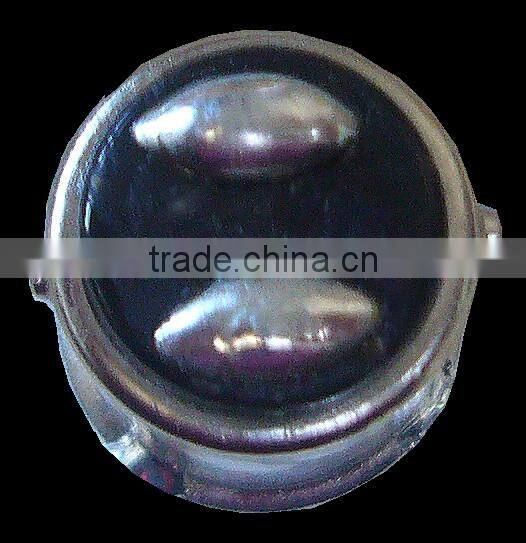

Offset pins

These lamps will provide a higher efficiency light output for use on your boat. It is important to ensure that the replacement selected is correct for the application. Ensure the wattage is within the limit of the equipment, and that light output/bulb spec meets the specified requirement.

Please regularly check that your navigation light fixtures are water tight. Gaskets harden over time and poorly sealed cable entries are prone to leaking. This is very important for bow mounted fixture that can be submerged occasionally in heavy seas. Our warranty specifically excludes damage to LED lamps due to salt water contamination.

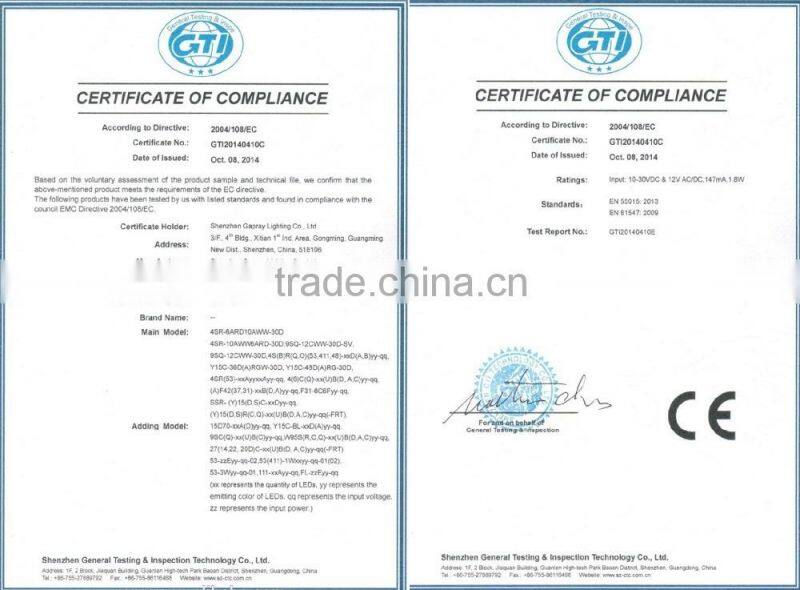

certificates:

All of our products have CE RoHS certificaion.
