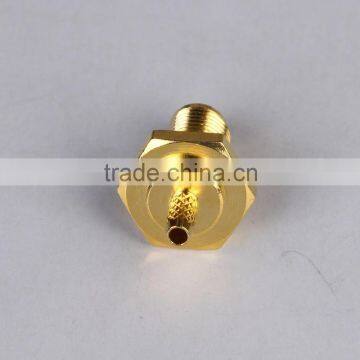

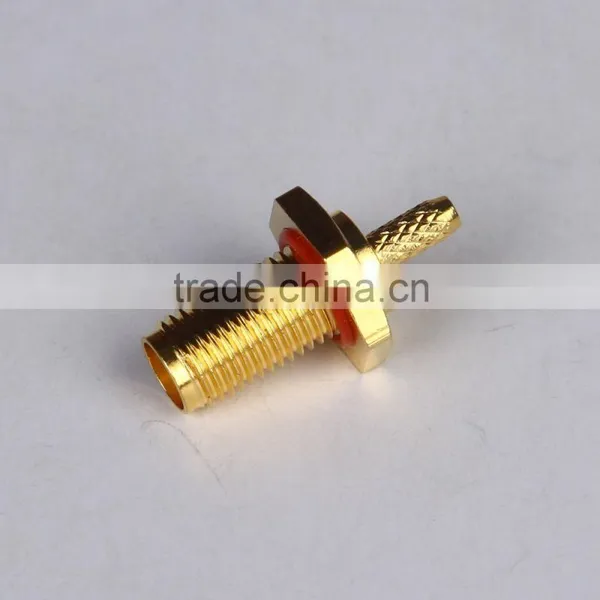

Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > RF SMA Bulkhead Panel Mount Connector
US$ 0.1 - 0.9
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SH-Link
Model Number:
SMA-C-KY1.5-M
Payment & Shipping
Payment Methods:
Port of Shipment:
Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Coaxial Type RF Cable IPX1.13 U.fl to SMA ConnectorUS$ 0.1 - 0.9MOQ: 100 Pieces -
Waterproof Sma ConnectorUS$ 0.1 - 0.9MOQ: 100 Pieces
-
RP SMA Jack Rg174 Cable Sma Wire Crimp ConnectorsUS$ 0.1 - 0.9MOQ: 100 Pieces
-
High Quality Sma Double Plug Adapter,bulkhead SmaUS$ 0.1 - 0.9MOQ: 100 Pieces
-
RF Application RF Connector SMA R/A Female/Jack PCB MountUS$ 0.1 - 0.9MOQ: 100 Pieces
Place of Origin
Guangdong, China
Brand Name
SH-Link
Model Number
SMA-C-KY1.5-M
Type
SMA
Application
RF
Gender
Female
| Temperature range | -55—+155℃(PE Cable -40—+85℃) | ||
| Vibration | 98m/S²(10-2000Hz)10g | ||
| Impedance | 50Ω | ||
| Frequency range | DC-12.4GHz(Semi-Rigled Cable DC-18GHz) | ||
| Working voltage | 335V r.m.s at sea level | ||
| Withstanding voltage | 1000V r.m.s at sea level | ||
| Contact resistance | |||
| Center contact | ≤3mΩ | ||
| Outer contact | ≤2.5mΩ | ||
| Insulation resistance | ≥5000MΩ | ||
| Center conductor retention force | ≥0.28N | ||
| Coupling nut retention force | ≥180N | ||
| Insertion loss | ≤0.15dB/6GHz | ||
| Voltage Standing Wave Ratio | |||
| Straight | ≤1.10+0.02f | ||
| ≤1.07+0.018f | |||
| Right angle | ≤1.20+0.03f | ||
| ≤1.17+0.02f | |||
| Durability(mating) | ≥500(Cycles) | | |
