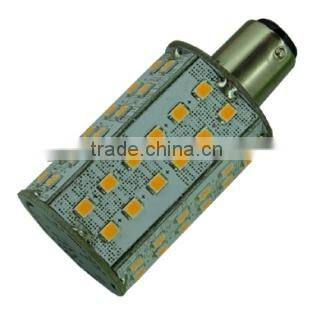

BAY15D 60SMD 2835 Very High Output LED Lamp 12v led marine navigation light for boat
| Product Code | Base | Voltage | Current | Watts | LED Q'ty | LED Encapsu-lation | CCT(K) | Lumens |
| Y15C-60DCW-30D | BAY15d | 10-30VDC | 435mA | 5.2 | 60 | SMD2835 | 5650-6000K | 626 |
| Y15C-60DWW-30D | BAY15d | 10-30VDC | 435mA | 5.2 | 60 | SMD2835 | 2850-3050K | 580 |
This VHO LED lamp has been specially designed for maximum light output when used in navigation light fixtures.
Light output of this LED lamp exceeds that of our 60 SMD VHO 'compact' lamp due to increased spacing of LEDs and the use of special thermally efficient and ventilated PCB substrate.
This new 60 SMD, 2835, 626 lumen LED lamp was designed and constructed to maximise both light output and thermal efficiency particularly for use in navigation light and signal light fixtures on commercial vessels. The lamp is also suitable for use on smaller vessels where boat owners require maximum visibility.
The lamp is ideal for replacing both 10W & 25W incandescent lamps traditionally used in both signal and navigation lights and is ideal for both 12 Volt & 24 Volt systems.
Use of the 'Ultimate' lamp will further improve your visibility compared to our Very High Output 'compact' lamp. Recent tests have demonstrated that light from this lamp at the mast top is visible for over 6 miles. It's suitable for both larger craft and smaller boats where owners wish to be seen from much greater distances. The light output will well exceed the COLREG visibility requirements for all boats up to 20m whilst drawing only 33% of the current taken by a 25W incandescent lamp.
The lamp is designed to minimise EMI, unlike other similar looking lamps sold for non marine use. We utilise specially designed PCB layouts which avoid tracks acting as antenna that radiate EMI (electromagnetic interference).
In cool white this LED lamp can be used for stern, steaming and mast head anchor lights for all boats up to 20 metres. Do not use cool white lamps behind separate red, green, or combined bi & tri coloured lenses, the output colours will not be correct.
In warm white the lamp is suitable for use behind the bi-colour red and green combined lenses and for tri-colour lights for all boats up to 20 metres.
For the brightest light output use green lamps behind separate green lenses and BAY15D red lamps behind separate red lenses.
Please regularly check that your navigation light fixtures are water tight. Gaskets harden over time and poorly sealed cable entries are prone to leaking. This is very important for bow mounted fixture that can be submerged occasionally in heavy seas. Our warranty specifically excludes damage to LED lamps due to salt water contamination.
These lamps are not polarity concious as they are fitted with a diode bridge rectifier and can therefore be connected either way without damage.
Offset Pins
Voltage: 10-30V DC
Input Power: 5.2 W
Input Current: 416mA @ 12v (CW)
Lumen Output: 626 Lm (CW)
Dimensions: 68mm x 31mm dia + lamp cap
Lamp Colours: Cool White, Warm White, Red & Green
Beam Angle: 360 deg
Warranty: 24 months
certificates:
All of our products have CE RoHS certification
