Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > SMA,manufacturer Type and Female Gender 20mm R/A Pcb Mount Sma Micro-strip rf Connector

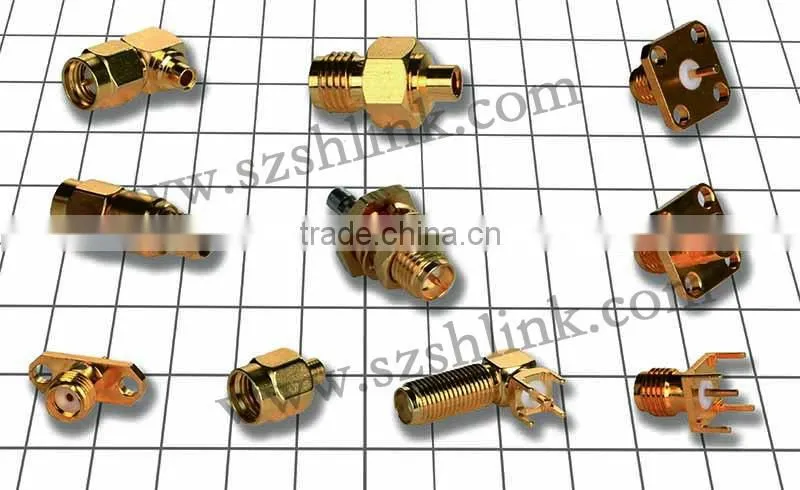

SMA,manufacturer Type and Female Gender 20mm R/A Pcb Mount Sma Micro-strip rf Connector
US$ 0.5 - 0.8
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SH-Link
Model Number:
SMA-50KWE-4
Payment & Shipping
Payment Methods:
Port of Shipment:
Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RF Application Sma Female Right Angle Pcb rf ConnectorUS$ 0.5 - 0.8MOQ: 100 Pieces -
SMA Bulkhead Female Right Angle Connector for PCBUS$ 0.5 - 0.8MOQ: 100 Pieces
-
Sma Connector for tv Antenna,4 Hole Flange ConnectorUS$ 0.1 - 0.9MOQ: 100 Pieces
-
SMA Connector ,flange ConnectorUS$ 0.1 - 0.9MOQ: 10 Pieces
-
SMA RIGHT ANGLE FEMALE RF COAXIAL CONNECTOR Pcb Mounting Crimp ConnectorUS$ 0.1 - 0.9MOQ: 100 Pieces
Place of Origin
Guangdong, China
Brand Name
SH-Link
Model Number
SMA-50KWE-4
Type
SMA
Application
RF
Gender
Female
SMA Coaxial Connectors
MAJOR TECHNICAL CHARACTERISTICS
Temperature range -55—+155℃(PE Cable -40—+85℃)
Vibration 98m/S²(10-2000Hz)10g
Impedance 50Ω
Frequency range DC-12.4GHz(Semi-Rigled Cable DC-18GHz)
Working voltage 335V r.m.s at sea level
Withstanding voltage 1000V r.m.s at sea level
Contact resistance
Center contact ≤3mΩ
Outer contact ≤2.5mΩ
Insulation resistance ≥5000MΩ
Center conductor retention force ≥0.28N
Coupling nut retention force ≥180N
Insertion loss ≤0.15dB/6GHz
Voltage Standing Wave Ratio
Straight ≤1.10+0.02f
≤1.07+0.018f
Right angle ≤1.20+0.03f
≤1.17+0.02f
Durability(mating) ≥500times(Cycles)
