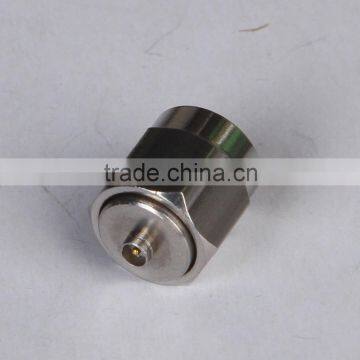

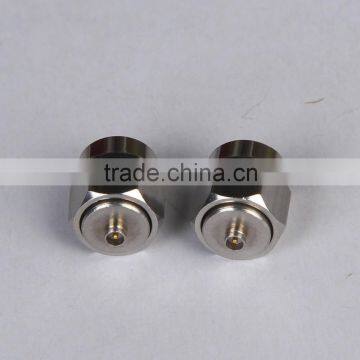

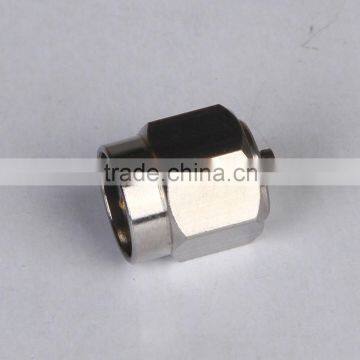

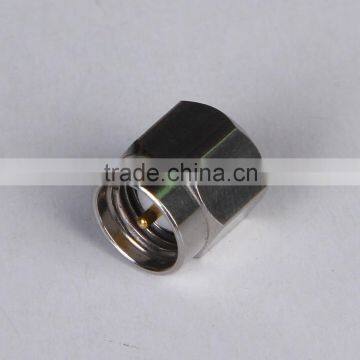

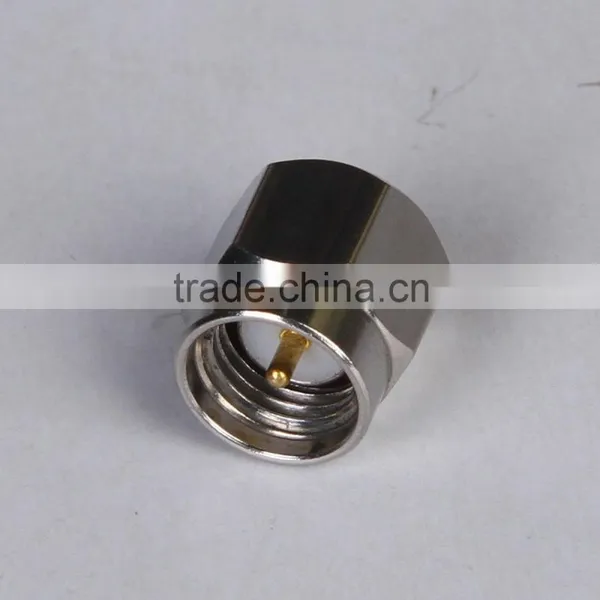

Adapter is the basic product that used in the connection between the instrument cable with different interface. There are two kinds of them: within-type adapter and inter-type adapter. It has the same technical special characteristic with same class product. Within-type adapter is listed in the catalogue of that product. Our company designs and produces various adapters with all kinds of specifications. They have frequency range and low VSWR characteristics. Welcome to visit and choose.
| MAJOR TECHNICAL CHARACTERISTICS | ||
| Temperature range | -55—+155℃(PE Cable -40—+85℃) | |
| Vibration | 98m/S²(10-2000Hz)10g | |
| Impedance | 50Ω | |
| Frequency range | DC-12.4GHz(Semi-Rigled Cable DC-18GHz) | |
| Working voltage | 335V r.m.s at sea level | |
| Withstanding voltage | 1000V r.m.s at sea level | |
| Contact resistance | ||
| Center contact | ≤3mΩ | |
| Outer contact | ≤2.5mΩ | |
| Insulation resistance | ≥5000MΩ | |
| Center conductor retention force | ≥0.28N | |
| Coupling nut retention force | ≥180N | |
| Insertion loss | ≤0.15dB/6GHz | |
| Voltage Standing Wave Ratio | ||
| Straight flexible cable | ≤1.10+0.02f | |
| semi-rigid cable | ≤1.07+0.018f | |
| Right angle flexible cable | ≤1.20+0.03f | |
| semi-rigid cable | ≤1.17+0.02f | |
| Durability(mating) | ≥500(Cycles) | |
Shipping :
1. The parts from us are sure to have quality warranty,and they are double tested before shipping.
2. The items can be sent within 7-10 working days after the payment reaches us,except for mass process, we will confirm the delivery in advance.
3. We can send your order by UPS/DHL/TNT/ FedEx. Pls contact us directly and we will use your preferred ways.
.Faster delivery:Fast delivery 3 days for sample order,15 days for formal order.
2.High warranty,strictly test by QC before shipping.
3.Customized packing and customer's logo are accepted.
4.Sample order is welcome and it can be free if you are real customer.
5.Accept various transportation ways.like by express, by sea, by air and also specified freight company.
6.Excellent service-Nearly no MOQ,Reply,answer,resolve anytime.
7.Strong production ablility:Monthly output is over 50000pcs.
8.Professional factory directly sale all over the wrold.
This product is a universal product, we can customize your
products according to your demand.
