No formadehyde eco friendly click lock heating flooring with thermostat
RAW MATERIALS:Microlite +PVC+PET CE and SAA certification
SCHNEID products are made of natural inorganic synthesized polymer materials.It adopts special low temperature eco-friendly technology and realizes one-time formation .no pollution and recyclable. Diversified surface treatment technology provides different style of the decorative effect.

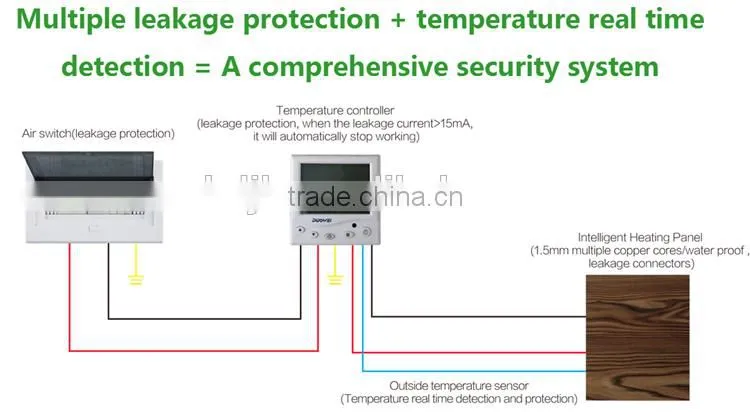

Intelligent heating Panel - thermal management expert

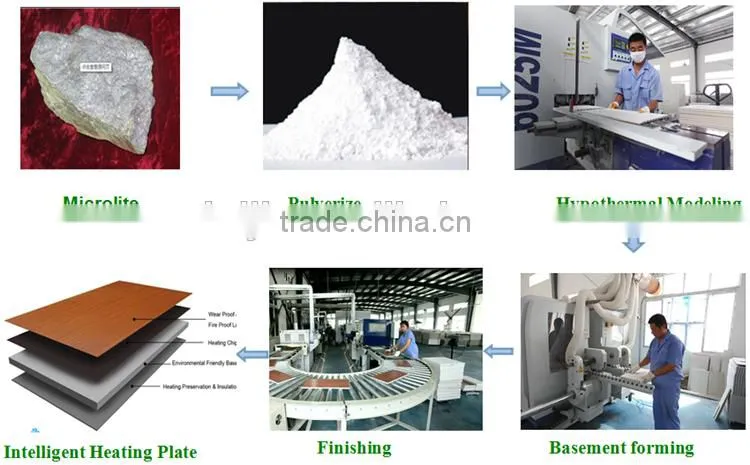

Production Process:

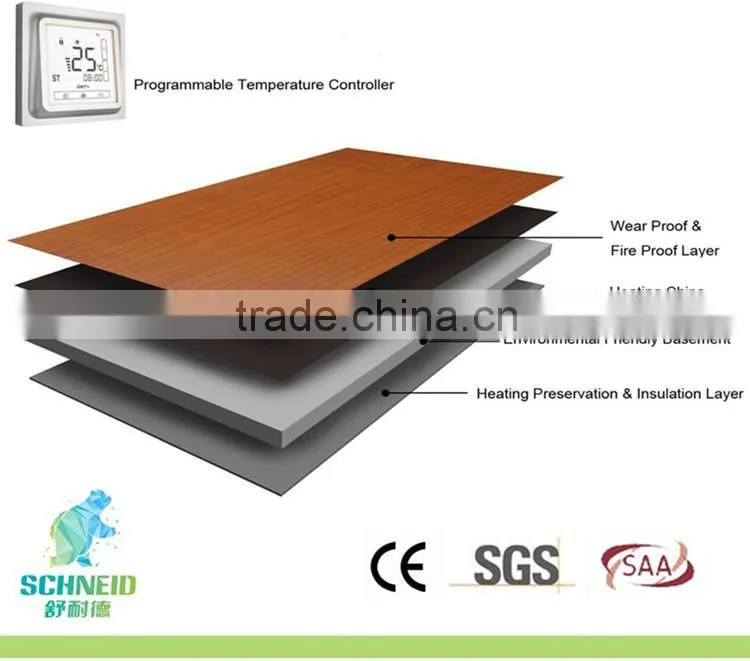

Heating Princple:
SCHNEID Intelligent Plate use the world-leading insulated flame-retardant PET material.After process of coated carbon,silver-layer coating ,squeeze-film,the PET material becomes far infrared planar heating element.Under the action of electric field,the activated carbon atoms in the heating element start do Brownian motion.During this process ,the carbon atoms make collides mutually and rubs to produce far infrared radiant heat.
TECHNICAL PARAMETERS
Serial No |
project |
Parameter values |
01 |
Products highest temperature |
45.0~55.0℃(related to environment temperature, surface material) |
02 |
Dimensional stability |
≤0.08mm |
03 |
Assembled from the seam |
≤0.2 mm |
04 |
Assemble height difference |
≤0.15 mm |
05 |
The surface wear resistance |
4000~10000wear-resisting(Related to the surface of material) |
06 |
Static music intensity |
≥15.0MPa |
07 |
Bibulous rate |
≤0.5% |
08 |
Combustion performance |
Sample will not be lit in the flame for 15 s |
09 |
The radiation efficiency |
≥40% |
10 |
Surface bond strength |
≥1.0MPa |
11 |
Formaldehyde release quantity |
E0 Glade ≤0.5mg/L |
12 |
Withstand voltage test |
1 min sample insulation, basic sine wave frequency is 50hz at 3750v voltage,without flashover breakdown occurred. |
13 |
Flooding pressure test |
Sample in 0.5 meters deep water soak for 24 hours, insulation withstand 15 min in the water, the basic sine wave frequency is 50hz at 500v voltage, leakage current is 15 ma or less≤15mA |
14 |
Product heating up time (room area 10.0m2, indoor temperature 0 ℃, set temperature 20 ℃) |
20min(is the product surface temperature, not indoor temperature) |
15 |
Suitable temperature range |
-30~50℃ |
16 |
The service life |
10 years |
Our Service:

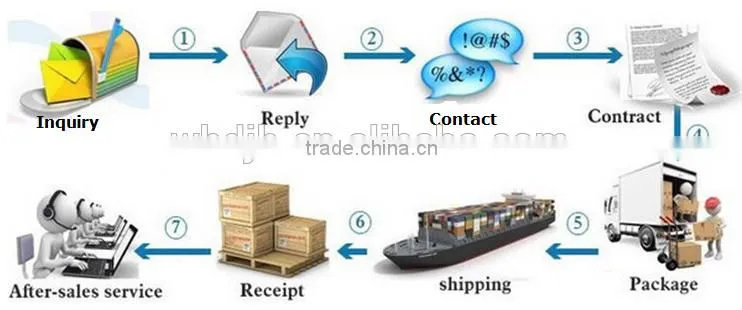

How to order?
1. if you are interested in our flooring, please tell us which model, quantity, color you want to order.
2. we will make a performa invoice for your order.
3. we will deliver the produce ASAP when we receive your deposit payment.
4. Payment: T/T, L/C.
5. shipping: by sea, by air, by express...
6. production time: 7 workdays for 20GP.
Extra service
1. small sample is available.
2. OEM is available.
Guarantee
1. Guarantee for 20 years after shipment.
Payment
1. 30% deposit and 70% balance before shipment.
2. we accept T/T, L/C, DP,DA and other payments can be discussed.

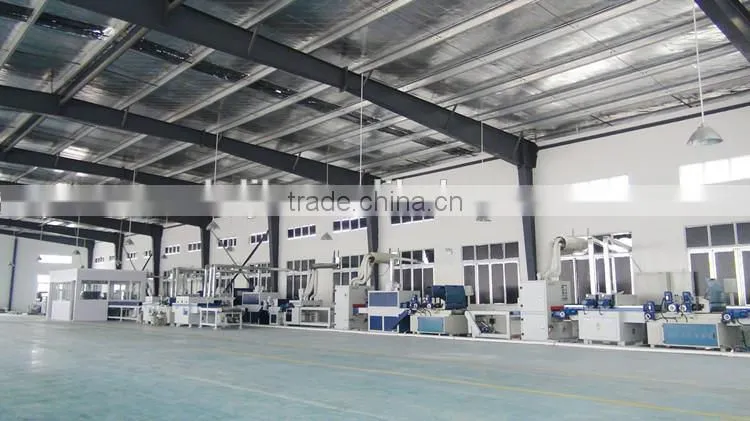

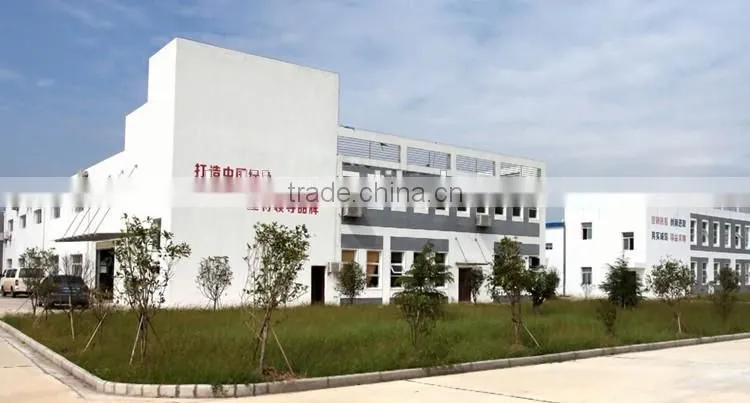

Production Base:

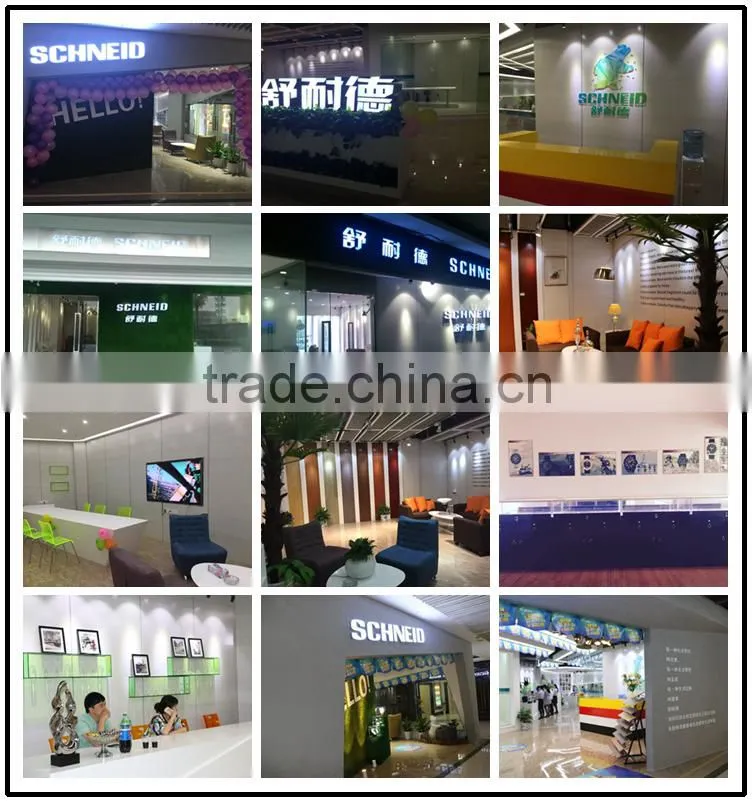

SCHNEID Shopping Malls:
Our Sales Team:

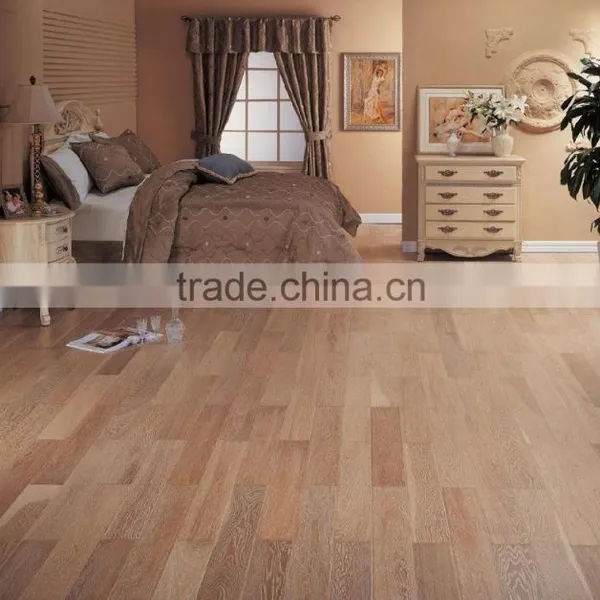

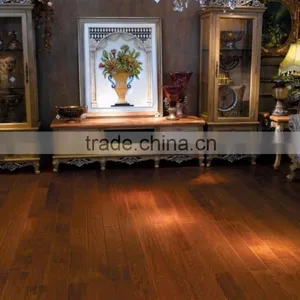

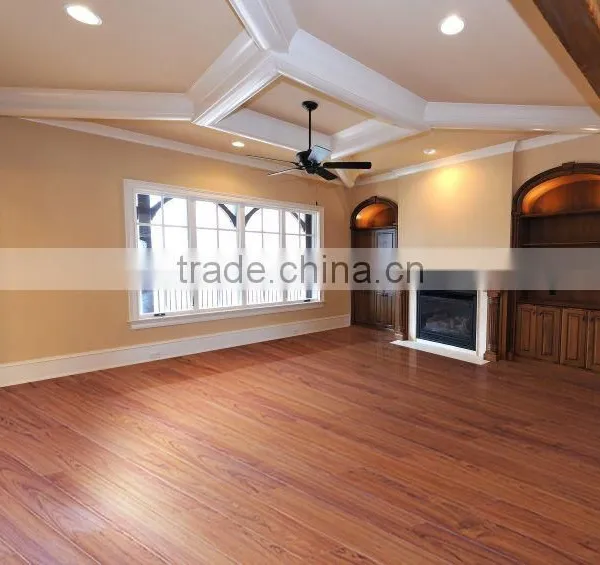

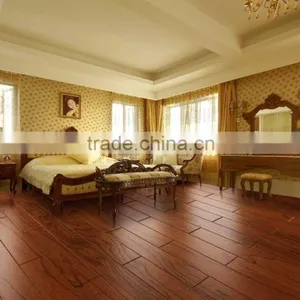

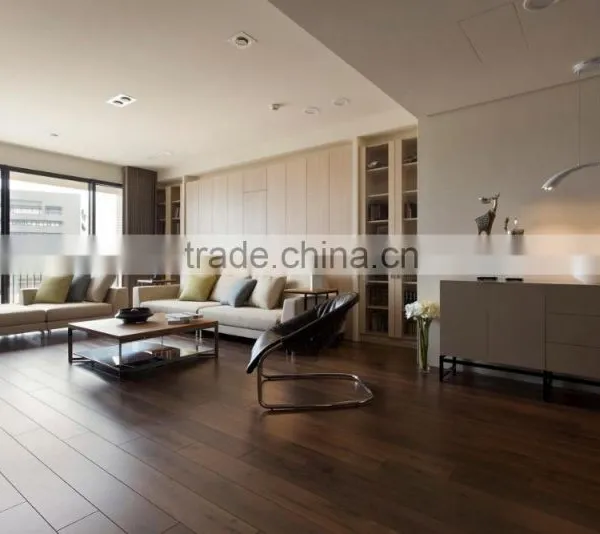

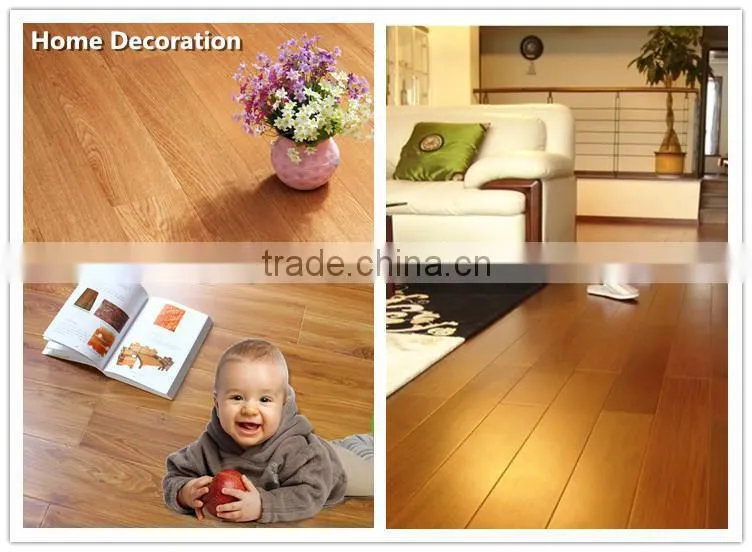

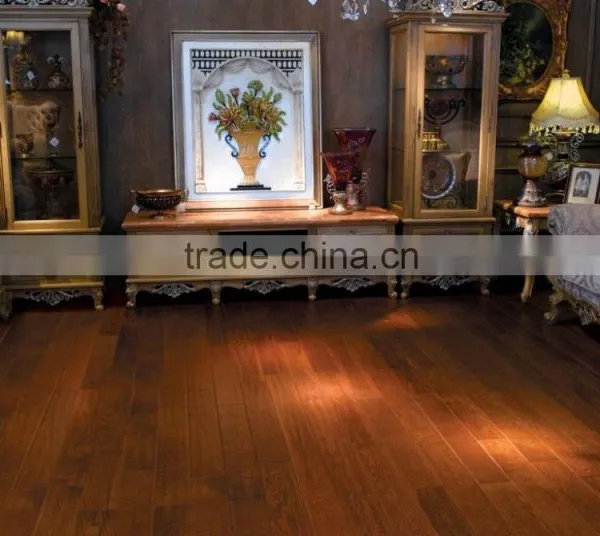

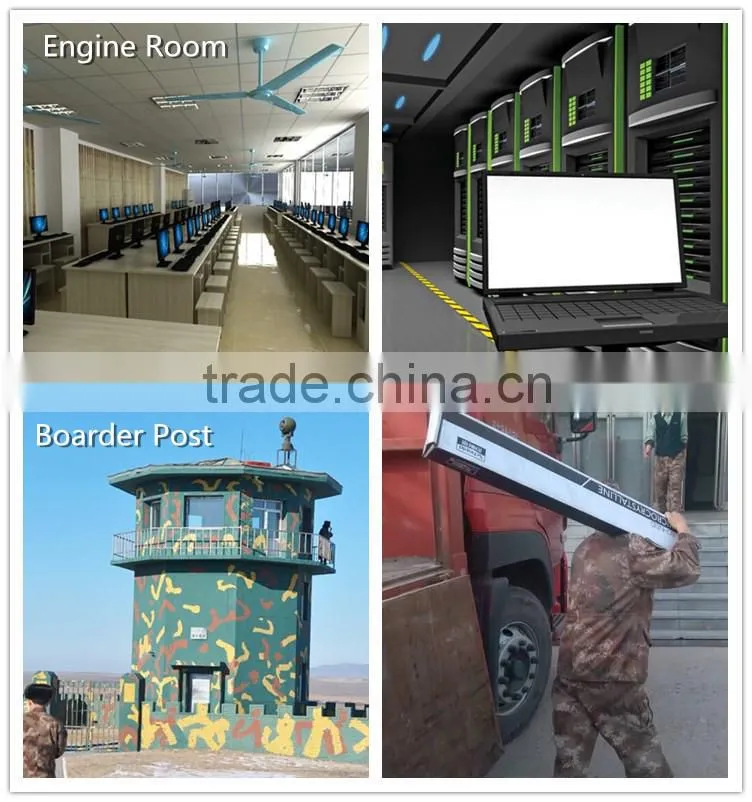

Application: home decoration, business high-grade office buildings, five-star hotels,engine room, border post, villas resort, cafes, restaurants, etc

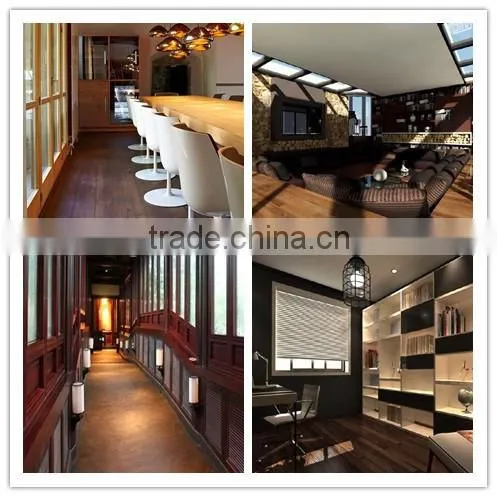

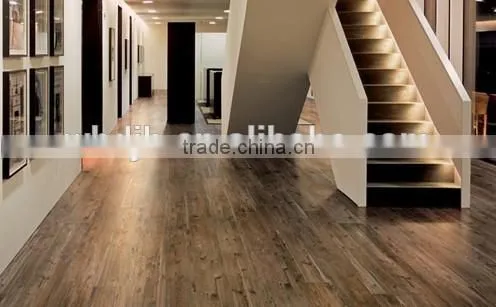

Project Cases:

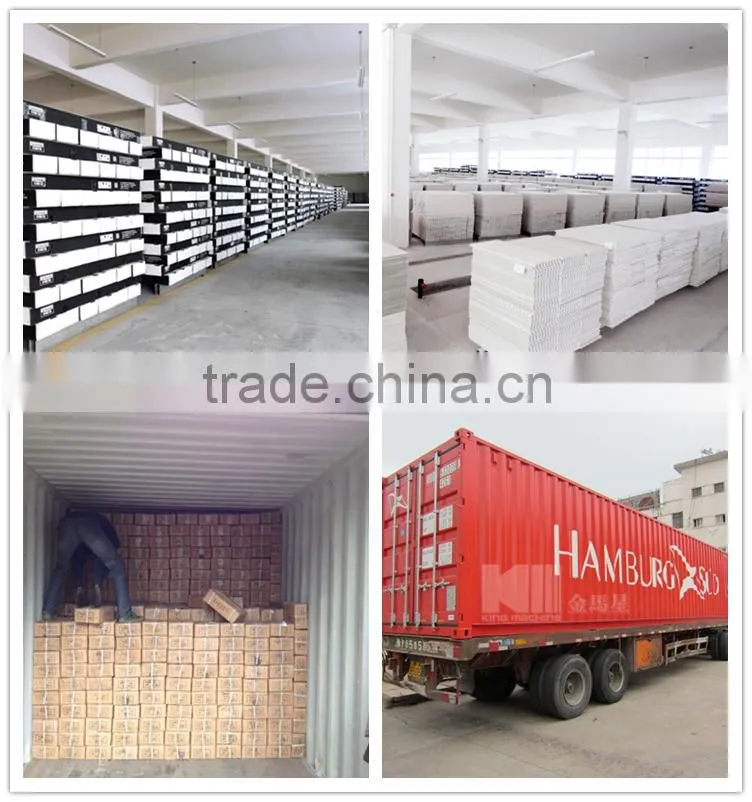

Package&Shipping:
Delivery Period :With an investment of 500million, we have three big industrial Zones in China ,the annual capacity can reach 50,000,000 square meters. Normally ,it costs 15-20 working days for delivery once confirming the order.
If you show any interests ,pls feel no hesitate to contact with Breanna!
Contacts:Breanna zheng
Cell phone :0086 13925563517
Skype:breannazhenglu
Whatsapp: 0086 13925563517
