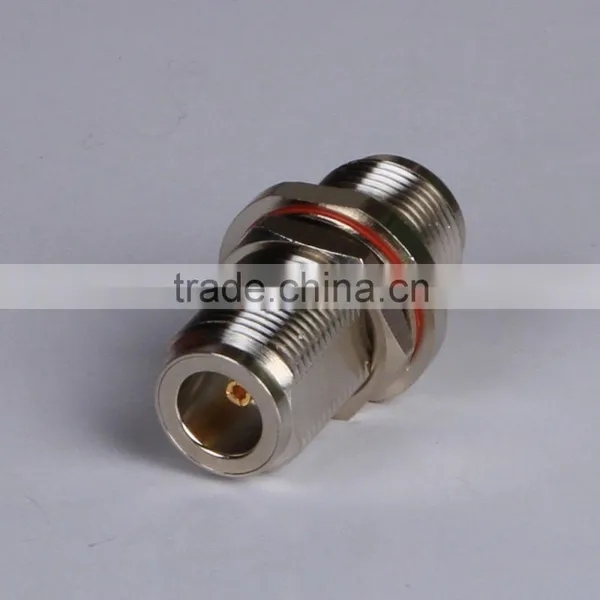

Help CenterRF Coaxial Within Type N Waterproof Connector
Related Products
-
rf Coaxial SMC Connector for Flexible CableUS$ 0.3 - 1MOQ: 1000 Pieces -
Google N to UHF Displayport Female to Hdmi Male Adapter Plants ManufacturingUS$ 0.1 - 2MOQ: 100 Pieces
-
Free Samples N Male to UHF Male Universal Travel Adapter Connectors.US$ 0.2 - 0.8MOQ: 100 Pieces
-
rf Coaxial SMA to RPSMA Male and Female Electrical ConnectorUS$ 0.1 - 1MOQ: 100 Pieces
-
Female to Female Sma Chint Connector Buy Wholesale Direct From ChinaUS$ 0.3 - 1.3MOQ: 100 Pieces
rf adaptor
Adaptor is the basic product that used in the connection between the instrument cables with different interface.
there are two kinds type: within-type adaptor and inter-type adaptor.
the technical special characterestic is the same as class product.
Our company was certified to ISO9001 and TS 16949. We are professioinal manufactur of RF coaxial connector designed and all kinds of adaptor,inpedance converter,fixed attenuator,termination loading and arrester etc.
The products produced according to the international standard of Farka series,SMA,SMB,SMC,BNC,TNC,N,MMCX,MCX,SSMA,SSMB ,F, etc.
In our trade merchants of various countuies,we always adhere to the principle of mutual benefit.
| RF Adaptor N male to N male Right Angle connector | ||
| Model No. | N-JJW | |
| Interface | IEC 60169-16;MIL-C-39012;CECC-22210 | |
| Electrical | ||
| Characteristic Impedance | 50ohm | |
| Frequency Range | DC-11GHz | |
| VSWR | ≤1.10@DC-3000MHz | |
| Insertion Losss | ≤0.15dB(6GHz) | |
| 3rd Order IM (PIM3) | — | |
| Working Vlotage | 1000V RMS,50Hz,at sea level | |
| Dielectric Withstanding Voltage | ≥2500V RMS,50Hz,at sea level | |
| Dielectric Resistance | ≥5000MΩ | |
| Contact Resistance | Center Contact ≤1mΩ | Outer Contact ≤0.25 mΩ |
| Mating | — | |
| Mechanical | ||
| Durability | Mating cycles ≥500 | |
| Material and Plating | ||
| Parts Name | Material | Plating |
| Body | Brass | Tri-Metal(CuZnSn)or Ni |
| Insulator | PTFE | — |
| Inner Conductor | Phosphor Bronze | Au |
| Gasket | Silicone Rubber | — |
| Coupling Nut | Brass | Tri-Metal(CuZnSn)or Ni |
| Environmental | ||
| Operating Temperature | _45 ℃-85 ℃ | |
| Weatherproof Rate | IP67 | |
| RoHs (2002/95/EC) | Compliant by exemption | |
| Suitable Cable Family | — | |
Shipping :
1. The parts from us are sure to have quality warranty,and they are double tested before shipping.
2. The items can be sent within 7-10 working days after the payment reaches us,except for mass process, we will confirm the delivery in advance.
3. We can send your order by UPS/DHL/TNT/ FedEx. Pls contact us directly and we will use your preferred ways.
Why choose us ?
1.OEM & ODM are warmly welcome
2.Good service and delivery on time
3. high gain with luxury design
4. several years manufacturing experience
5.Customized packing and customer's logo are accepted.
6.Sample order is welcome and it can be free if you are real customer.
7.Accept various transportation ways.like by express, by sea, by air and also specified freight company.
8.Strong production ablility:Monthly output is over 50000pcs.
9.Professional factory directly sale all over the wrold.
This product is a universal product, we can customize your
products according to your demand.
