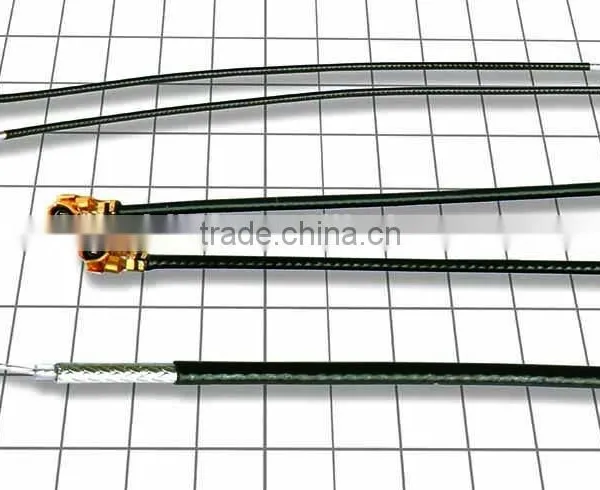

I-pex Antenna Cable Assembly for SMA,TNC,N and Fakra
US$ 0.1 - 2
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SH-Link
Model Number:
I-pex cable assembly
Payment & Shipping
Payment Methods:
Port of Shipment:
Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Factory Price New Design Dual Band GPS GSM Combo Antenna With Fakra ConnectorUS$ 1 - 3.8MOQ: 10 Pieces -
High Gain MINI Outdoor Wifi AntennaUS$ 1.8 - 2.8MOQ: 10 Pieces
-
2.4GHz 109mm Articulated Antenna With RP SMA Connector ,SMA AntennaUS$ 0.5 - 0.9MOQ: 100 Pieces
-
2.4G GSM Patch Car Antenna With Fakra, RG174 Cable for Car Tracker Device UseUS$ 1.8 - 2.8MOQ: 10 Pieces
-
[Waterproof]High Speed Wlan 5DBI 2.4ghz rf AntennaUS$ 0.8 - 1.8MOQ: 10 Pieces
Place of Origin
Guangdong, China
Brand Name
SH-Link
Model Number
I-pex cable assembly
Type
Other, cable
Application
RF
Gender
Other
Type name |
IPX I-PEX UFL To SMA Female RF Adapter Cable Antenna 10cm SMA IPX1.13 |
|
Impedance |
50Ω |
|
Vibration |
100m/S2 (10~500Hz) |
|
Frequency Range |
DC-7.5GHz |
|
Insertion Loss |
≤ 0.15dB/6GHz |
|
Withstanding Voltage |
4000V r.m.s at sea level |
|
Working Voltage |
2700Vr.m.s at sea level |
|
Average power |
3Kw max |
|
Insulation Resistance |
≥ 10000 MΩ |
|
Center conductor retention force |
≥ 6N |
|
Durability |
≥ 500(cycles) |
|
Contact resistance: |
CenterContact ≤ 0.4mΩ |
|
Outer Contact ≤ 1.5mΩ | ||
Voltage Standing Wave Ratio: |
Straight |
≤ 1.20/6GHz |
Right angle |
≤ 1.35/6GHz |
|
