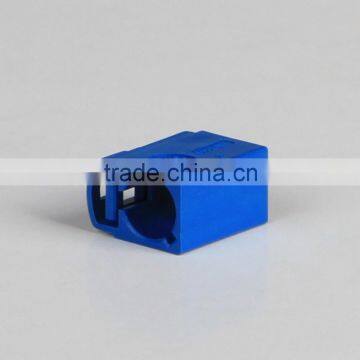

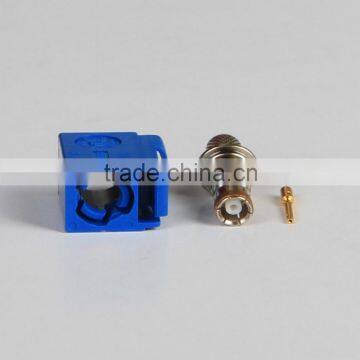

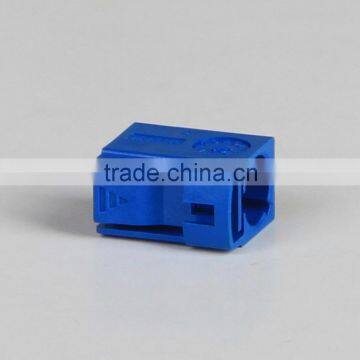

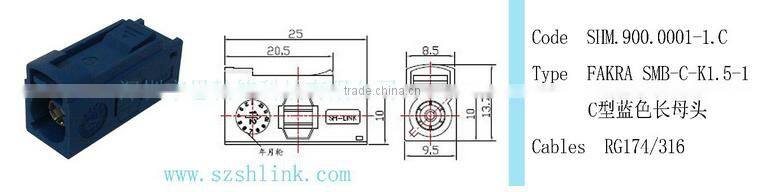

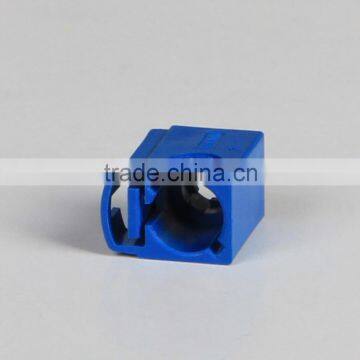

Blue FAKRA automotive Jack Cable Using RG174 Coaxial cable

Major characteristics:

   Double-locked, fool-proofing assembly with the color and the structure

   The connector is be protected by the cap .

   Easy to assembly

   Many difference between the connector and the cap.

• The product technical characteristics:

   Body: Brass, Ni-plated

   Socket: beryllium-copper, Gold-plated

   Pin contact: Brass

   Insulator: PTFE

   Crimp ferrule: brass, Ni-plated

   O-ring: beryllium-copper

   Shell: PA66+30%GF

• Technical characteristics

   Impedance: 50Ω

   Frequency Range: 4GHz

   Withstanding Voltage: 1000V(RMS)

   Contact resistance:

   Center contact: ≤ 20m

   Outer contact: ≤10m

   Insulation: ≥1,000MΩ

   VSWR: DC - 2GHz<1.2

• Mechanical characteristics:

   Assembly: locked

   Durability: ≥ 500 cycles

   Temperature: - 40 - +85°C

• The aim of our company is to provide you outstanding quality, fast delivery, reasonable price, excellent after-sales.

• Please contact us for more details.
