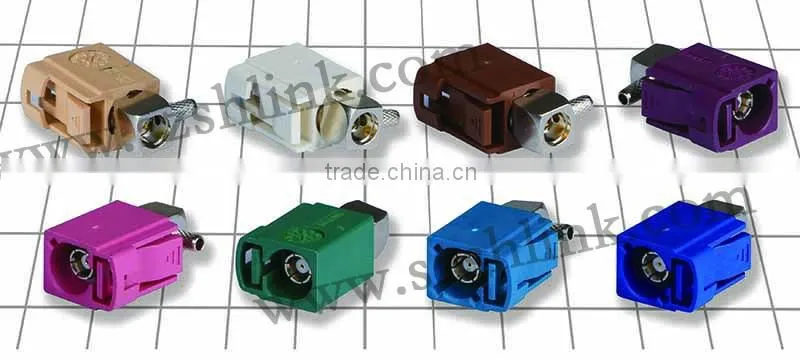

Help CenterR/A Fakra Violet Connector for Radio Controlled Parking Heating Rg Cable
Related Products
-
Straight H Type Fakra Smb Connector for Cable RG174US$ 0.50 - 0.50MOQ: 100 Pieces -
Quick Release Automotive Electrical Black Fakra Ecu ConnectorUS$ 0.1 - 0.8MOQ: 100 Pieces
-
Fakra Connector for Car GSM Cellular Phone With Single PanelUS$ 0.56 - 0.56MOQ: 100 Pieces
-
Flange Car Connector With Crimp PigtailUS$ 0.6 - 0.8MOQ: 100 Pieces
-
Short Female Fakra Connector for Car Gps AntennaUS$ 0.4 - 0.6MOQ: 100 Pieces
Major characteristics:
Double-locked, fool-proofing assembly with the color and the structure
The connector is be protected by the cap .
Easy to assembly
Many difference between the connector and the cap.
• The product technical characteristics:
Body: Brass, Ni-plated
Socket: beryllium-copper, Gold-plated
Pin contact: Brass
Insulator: PTFE
Crimp ferrule: brass, Ni-plated
O-ring: beryllium-copper
Shell: PA66+30%GF
• Technical characteristics
Impedance: 50Ω
Frequency Range: 4GHz
Withstanding Voltage: 1000V(RMS)
Contact resistance:
Center contact: ≤ 20m
Outer contact: ≤10m
Insulation: ≥1,000MΩ
VSWR: DC - 2GHz<1.2
• Mechanical characteristics:
Assembly: locked
Durability: ≥ 500 cycles
Temperature: - 40 - +85°C
• The aim of our company is to provide you outstanding quality, fast delivery, reasonable price, excellent after-sales.
• Please contact us for more details.
