Home > Products > F connector > 3GHz High Performance F Female to Female Connector

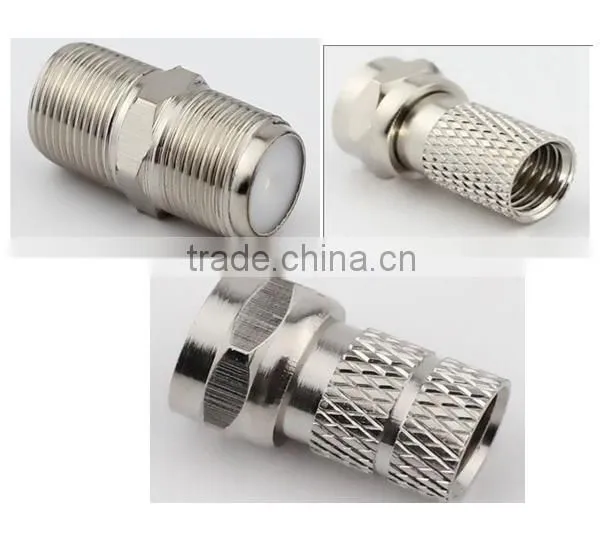

3GHz High Performance F Female to Female Connector
- 50000 Piece / Pieces per Month
- Hongkong
- Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | SH-Link | Model Number: | F-C-KK |
Type: | F | Application: | RF | Gender: | Other, female to female |
Product Description
Application: RF,Antenna,Cable,Electricalcomponents,Microwave,Automotive
ROHS&SGS compliant
ISO9001 2008 standard F connectors series are economically priced connectors specially designed for use with NTSC TV ANTENNA and other similar applications.F type joining devices use for 75 Ω cable assign system,especially CATV,broadcast television network,It can already be used for having impedance to mate the occasion required and can be used in not mating the occasion too.It is joined ,inserts helping jointly that its characteristic is whorl ,the price is suitable. MAJOR TECHNICAL CHARACTERISTICS | ||
Temperature range | -40—+60℃ | |
Vibration | 100m/S²(10-500Hz),10g | |
Impedance | 50Ω | |
Frequency range | DC-3GHz | |
Working voltage | 170V r.m.s at sea level | |
Withstanding voltage | 500V r.m.s at sea level | |
Contact resistance | ||
Center contact | ≤10 mΩ | |
Outer contact | ≤5 mΩ | |
Insulation resistance | ≥1000MΩ | |
Center conductor retention force | ≥0.2N | |
Voltage Standing Wave Ratio | ||
Straight | ≤1.20 | |
Right angle | ≤1.30 | |
Durability(mating) | ≥500(Cycles) | |
Material & Plating | ||
body | brass | nickel plated |
pin contact | brass | gold or silver plated |
resilient contact | Tin bronze | gold or silver plated |
insulator | PTFE or PE | |
crimp ferrule | copper alloy | nickel or gold plated |
O-ring sealing | 6146 silicone rubber | |
Applicable standard | ||
IEC-60169-24 |
