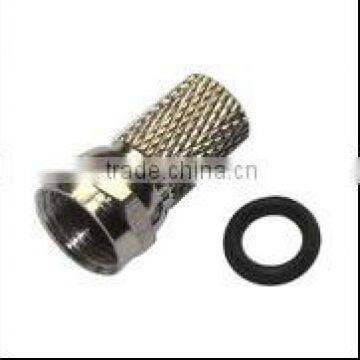

Help CenterRG6 F Connector Male Twist on Crimp Connector
Related Products
-
RF Coaxial F Male Right Angle ConnectorUS$ 0.2 - 1.5MOQ: 1000 Pieces -
F Male Straight ConnectorUS$ 0.2 - 1.5MOQ: 100 Pieces
-
F Male Straight Rg6 Compression ConnectorUS$ 0.2 - 1.5MOQ: 100 Pieces
-
Rg6 BNC F Compression ConnectorUS$ 0.2 - 1.5MOQ: 100 Pieces
-
High Quality F Male RG6 ConnectorUS$ 0.2 - 1.5MOQ: 100 Pieces
Snap & Seal Outdoor F Compression Connector
1.Material is copper or zinc
2.For RG58,RG59,RG6
3.Using for coaxial,cctv,catv
MAJOR TECHNICAL CHARACTERISTICS
| Temperature range | -40—+60℃ | |
| Vibration | 100m/S²(10-500Hz),10g | |
| Impedance | 75Ω | |
| Frequency range | DC-1GHz | |
| Working voltage | 170V r.m.s at sea level | |
| Withstanding voltage | 500V r.m.s at sea level | |
| Contact resistance | ||
| Center contact | ≤10 mΩ | |
| Outer contact | ≤5 mΩ | |
| Insulation resistance | ≥1000MΩ | |
| Center conductor retention force | ≥0.2N | |
| Voltage Standing Wave Ratio | ||
| Straight | ≤1.20 | |
| Right angle | ≤1.30 | |
| Durability(mating) | ≥500(Cycles) | |
| Material & Plating | ||
| body | brass | nickel plated |
| pin contact | brass | gold or silver plated |
| resilient contact | Tin bronze | gold or silver plated |
| insulator | PTFE or PE | |
| crimp ferrule | copper alloy | nickel or gold plated |
| O-ring sealing | 6146 silicone rubber | |
| Applicable standard | ||
| IEC-60169-24 |
Shipping :
1. The parts from us are sure to have quality warranty,and they are double tested before shipping.
2. The items can be sent within 7-10 working days after the payment reaches us,except for mass process, we will confirm the delivery in advance.
3. We can send your order by UPS/DHL/TNT/ FedEx. Pls contact us directly and we will use your preferred ways.
Why choose us ?
1.OEM & ODM are warmly welcome
2.Good service and delivery on time
3. high gain with luxury design
4. several years manufacturing experience
5.Customized packing and customer's logo are accepted.
6.Sample order is welcome and it can be free if you are real customer.
7.Accept various transportation ways.like by express, by sea, by air and also specified freight company.
8.Strong production ablility:Monthly output is over 50000pcs.
9.Professional factory directly sale all over the wrold.
This product is a universal product, we can customize your
products according to your demand.
