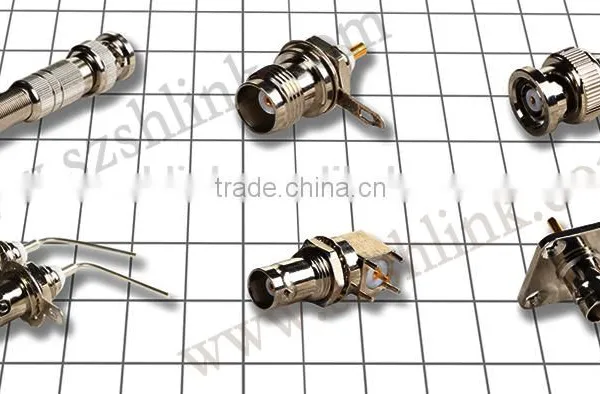

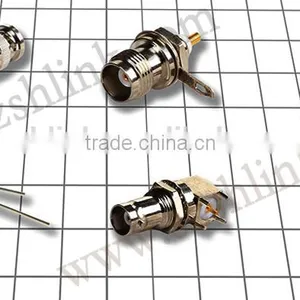

BNC Connector for Cable and PCB
US$ 0.1 - 2
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Sh-Link
Model Number:
BNC connector
Payment & Shipping
Payment Methods:
Port of Shipment:
hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BNC Female Nut Bulkhead Solder RF Connector AdapterUS$ 0.2 - 2MOQ: 1000 Pieces -
Factory Price BNC Wire ConnectorUS$ 0.3 - 1MOQ: 100 Pieces
-
Waterproof Female BNC Connectors for RG174 RG316 Flexible CableUS$ 0.3 - 1MOQ: 100 Pieces
-
Bnc Right Angle ConnectorUS$ 0.3 - 1MOQ: 1000 Pieces
-
Female Gender BNC Double Sided Connectors Use in Network,instrumentUS$ 0.3 - 1MOQ: 100 Pieces
Place of Origin
Guangdong, China
Brand Name
Sh-Link
Model Number
BNC connector
Type
BNC
Application
RF
Gender
Other
| lectric Data | ||
| Characteristic Impedance | 50ohm, 75ohm | |
| Frequency Range | 0-4GHz | |
| Working Voltage | 500 VRMS(max at sea level) | |
| Dielectric Withstanding Voltage | 1500 VRMS(min at sea level) | |
| VSWR | ≤1.30 | |
| Contact Resistance | Inner: 1.5 milliohms(max) | |
| Outer: 1 milliohms(max) | ||
| Insulation Resistance | 5000 megohms(min) | |
| Mechanical Data | ||
| Durability Mating | 500 Cycles min. | |
| Material Data | ||
| Connector Parts | Materials | Plating Finish |
| Body | Brass | Nickel |
| Female Pin | Brass | Gold |
| Insulators | PTFE | N/A |
| Ferrules | Copper alloy | Nickel |
| Environmental Data | ||
| Temperature Range | -65~+165℃ | |
