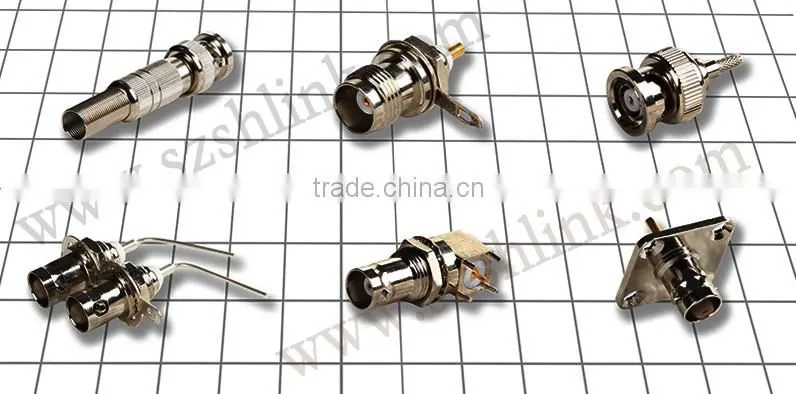

Screw Type CCTV BNC Connector for Coaxial Cable , RG59/RG60 Male BNC Connector, BNC Adapter
US$ 0.5 - 1
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SH-LINK
Model Number:
BNC-JS-5
Payment & Shipping
Payment Methods:
Port of Shipment:
Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Supply With the Best Price for Female Coaxial Cable BNC Connector With Flange, RF ConnectorUS$ 0.32 - 0.56MOQ: 3000 Pieces -
75 Ohms Female BNC Adaptor Connector for Communication With RF Coaxial Cable PriceUS$ 0.32 - 0.56MOQ: 100 Pieces
-
RF Connector With Good Quality and Factory Price, 50 Ohms Female Multi-BNC Coaxial Cable Price ConnectorUS$ 1.3 - 2.1MOQ: 100 Pieces
-
China Supply Factory Price BNC Connector, Female Coaxial Cable ConnectorUS$ 1.12 - 1.62MOQ: 100 Pieces
-
Multiple Transformations BNC Connector, Male/female Coaxial Cable RF ConnectorsUS$ 0.32 - 0.62MOQ: 100 Pieces
Place of Origin
Guangdong, China
Brand Name
SH-LINK
Model Number
BNC-JS-5
Type
BNC
Application
RF
Gender
Male
Specifications
1.Type:BNC
2.Female,50 ohm
3.Body:brass/nickel plated
4.Socket:beryllium-copper/gold or silver plated
Type BNC is one kind of RF coaxial connector using a bayonet type coupling mechanism, characteristic impedance have two types: 50Ω and 75Ω. They can be quick connect/disconnect, reliable lock etc. They are widely used in connection with the RF coaxial cables in computer field, network of wireless, medical equipment and electronic instrument.
| MAJOR TECHNICAL CHARACTERISTICS | |
| Temperature Range | -55~ +155°C (PE Cable -40~ +85°C) |
| Insertion loss | <=0.20dB/3GHz |
| Impedance | 50Ω,75Ω |
| Frequency range | DC~4GHz |
| Working Voltage | 500V r.m.s at sea level |
| Withstanding voltage | 1500V r.m.s at sea level |
| Contact resistance | Center contact<=1.5m Ω Coter contact<=1m Ω |
| Insulation resistance | >=5000MΩ |
| Center conductor retentin force | >=0.57N |
| Voltage Standing Wave Ratio | Straight <=1.22/3GHz Right Angle <=1.30/3GHz |
| Durability(mating) | >=500 times (cycles) |
| MATERIAL & PLATING | ||
| Body | brass | nickel plated |
| pin contact | brass | gold or silver plated |
| socket contact | beryllium-copper | gold or silver plated |
| resilient contact | tin bronze | gold or silver plated |
| insulator | PTFE | |
| crimp ferrule | copper alloy | nickel plated |
| o-ring sealing | 6146 silicone rubber | |
MIL-C-39012;
CECC 22120;
IEC 60169-8
