Home > Products > BNC connector > right angle BNC female connector can get free samples

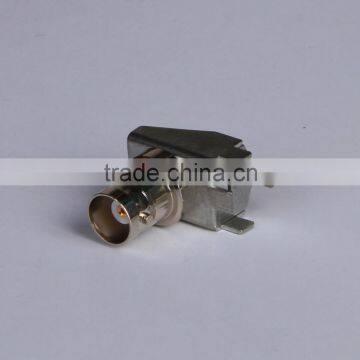

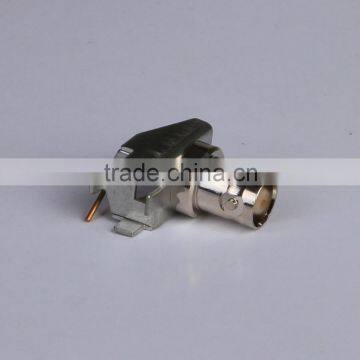

right angle BNC female connector can get free samples
- 50000 Piece / Pieces per Month
- HongKong
- Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | SH-Link | Model Number: | BNC-50KWE-1213 |
Type: | BNC | Application: | RF | Gender: | Female |
Product Description
The BNC series are bayonet-lock standard coaxial connectors, with characteristic impedance 50 Ω or 75 Ω. They have the characteristics of rapid engagement and disengagement, high reliability, simple structure etc, are used to connect RF coaxial cables in IT, industrial network, medical equipment, data communication, video systems and broadcast application.
Our company was certified to ISO9001 and TS 16949. We are professioinal manufactur of RF coaxial connector designed and all kinds of adaptor,inpedance converter,fixed attenuator,termination loading and arrester etc.
The products produced according to the international standard of Farka series,SMA,SMB,SMC,BNC,TNC,N,MMCX,MCX,SSMA,SSMB ,F, etc.
In our trade merchants of various countuies,we always adhere to the principle of mutual benefit.
MAJOR TECHNICAL CHARACTERISTICS | ||
Temperature range | -55—+155℃(PE Cable -40—+85℃) | |
Impedance | 50Ω,75Ω | |
Frequency range | DC-4GHz | |
Working voltage | 500V r.m.s at sea level | |
Withstanding voltage | 1500V r.m.s at sea level | |
Contact resistance | ||
Center contact | ≤1.5mΩ | |
Outer contact | ≤1 mΩ | |
Insulation resistance | ≥5000MΩ | |
Center conductor retention force | ≥0.57N | |
Insertion loss | ≤0.30dB/3GHz | |
Voltage Standing Wave Ratio | ||
Straight | ≤1.22/3GHz | |
Right angle | ≤1.30/3GHz | |
Durability(mating) | ≥500(Cycles) | |
Material & Plating | ||
body | brass | nickel plated |
pin contact | brass | gold or silver plated |
socket contact | beryllium-copper | gold or silver plated |
resilient contact | Tin bronze | gold or silver plated |
insulator | PTFE | |
crimp ferrule | copper alloy | nickel plated |
O-ring sealing | 6146 silicone rubber | |
Applicable standard | MIL-C-39012 | |
CECC 22120 | ||
IEC-60169-8 |
Shipping :
1. The parts from us are sure to have quality warranty,and they are double tested before shipping.
2. The items can be sent within 7-10 working days after the payment reaches us,except for mass process, we will confirm the delivery in advance.
3. We can send your order by UPS/DHL/TNT/ FedEx. Pls contact us directly and we will use your preferred ways.
1.Faster delivery:Fast delivery 3 days for sample order,15 days for formal order.
2.High warranty,strictly test by QC before shipping.
3.Customized packing and customer's logo are accepted.
4.Sample order is welcome and it can be free if you are real customer.
5.Accept various transportation ways.like by express, by sea, by air and also specified freight company.
6.Excellent service-Nearly no MOQ,Reply,answer,resolve anytime.
7.Strong production ablility:Monthly output is over 50000pcs.
8.Professional factory directly sale all over the wrold.
This product is a universal product, we can customize your
products according to your demand.
