Airport Luggage X-Ray scanning Security Machine for Detecting Contraband

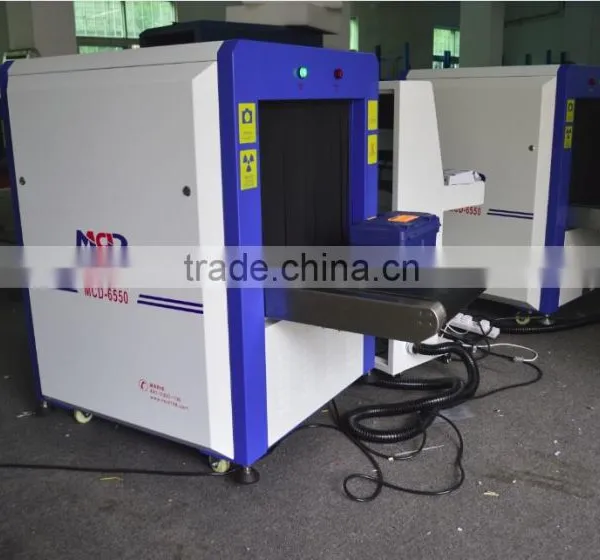

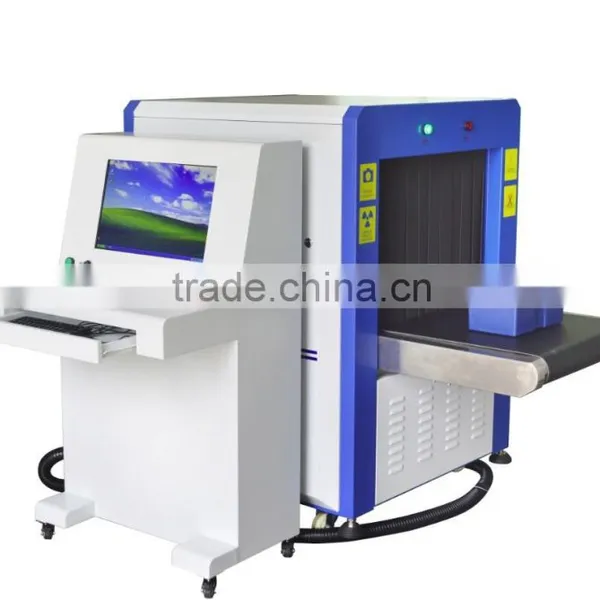

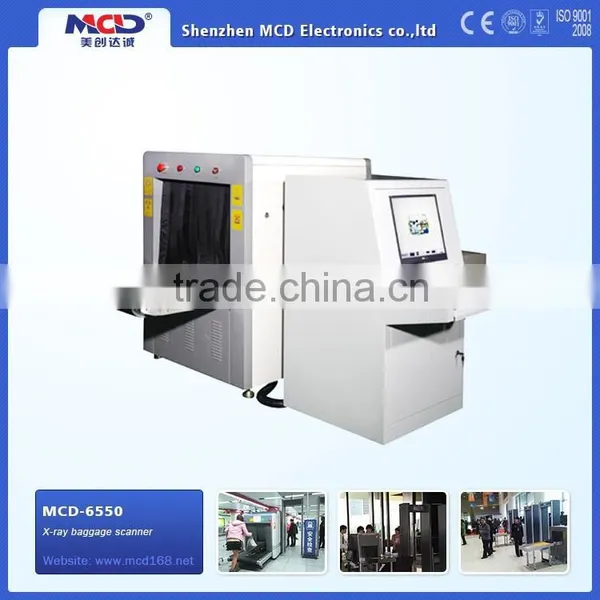

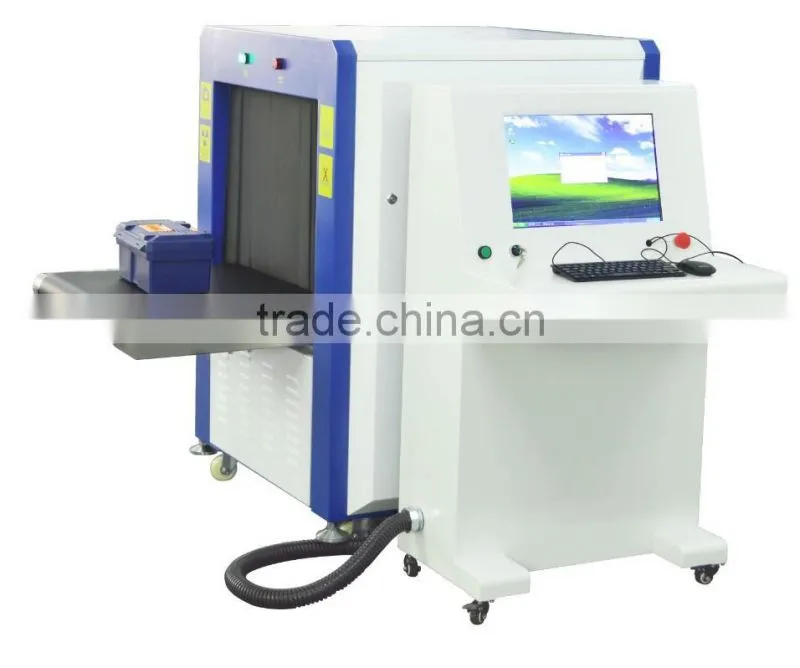

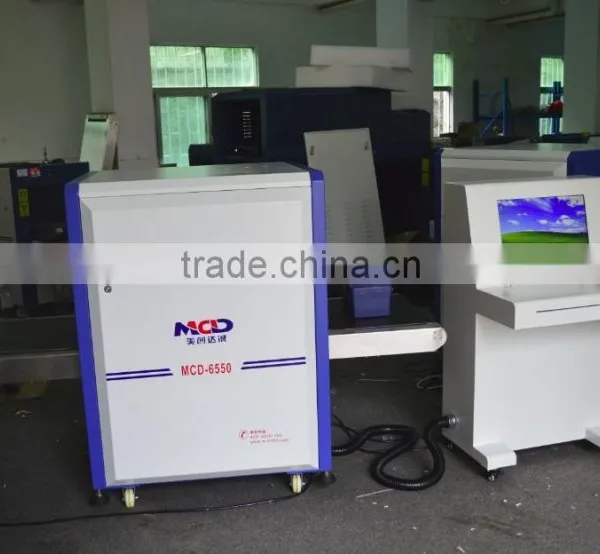

The details of MCD-6550 conveyor belt metal detector
The details of MCD-6550 conveyor belt metal detector
General Specification
| Tunnel Size | 650(W)*500(H)mm |
| Conveyor Speed | 0.22m/s |
| Conveyor Max Load | 170kg |
| Dose per Inspection | less than 1.4 μGy/h |
| Spatial Resolution | Level: dia1.0mm, Vertical: dia1.0mm |
| Penetration | 34mm Stell |
| Film Safety | Guarantee ISO1600 Film |
| X ray Leakage | 0.05 μGy/h (at a distance of 5cm from frame house) |
| Monitor | 17inch Dell brand |
X-ray Generator
| Generate Direction: | Upward L shape |
| Generator Anger: | 80 degres |
| Anode Voltage: | 100-160kv adjustable |
| Anode power: | 0.4 to 0.5mA |
| Cooling/Duty Cycle: | Oil Cooling 100% |
Image System
X-ray Sensor: L-Shaped Photodiode Array (multi-energetic), 12bit Deep |
Monitor: High Resolution Color, LCD Accord, 17 inch |
| Image Processing: Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval |
Image Grey Level: 4096 |
Image Max Resolution: 1024 * 1280pixel |
Image Processing: 24bit for processing real time |
Image storage : Storage 60000 pictures in real time |
Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation |
Multi-energetic distinguish objects: organic objects in orange, inorganic objects in blue, mixture in green |
High-energy/low energy: switch from high energy to low energy |
Assist to detect drug and explosive powder |
Installation Data
| Operation temperature/Humidity | 0°C-45°C/20%-95%(non-condensing) |
| Storage Temperature/Humidity | -20°C-60°C/20%-95%(non-condensing ) |
| Operation Power | 220VAC(±10%)50±3Hz |
|
Power Consumption Noise: |
1.0 KW (max), 0.3KW(working) less than 55db |
Feature and Application of MCD-6550 conveyor belt metal detector
|
X-rays through inspection,Which show object interior metal structure by LCD screen. Applied to factory inspection products and institutions of the security. Such as electronic factory, shoe factories, toy factories, court and station, as well as large activities handbag security. |

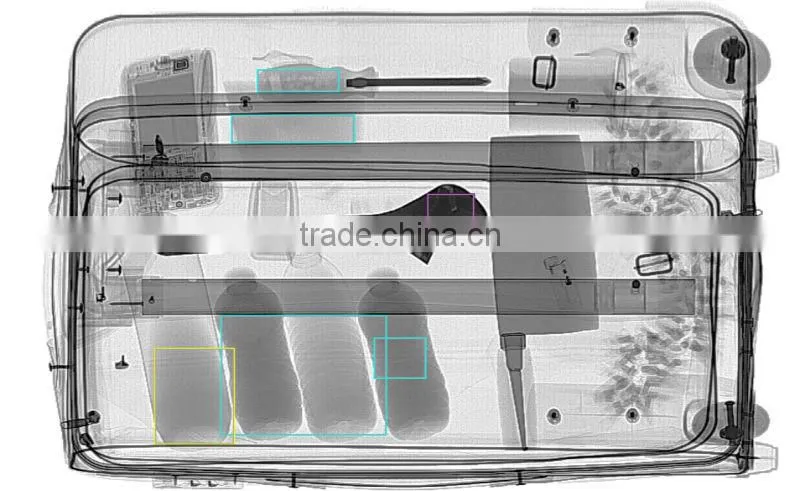

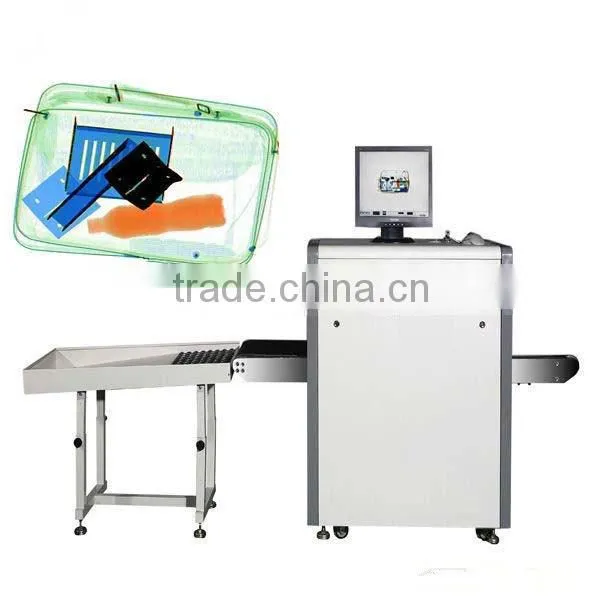

The picture of checking objects of MCD-6550 conveyor belt metal detector
Certifications of MCD-6550 conveyor belt metal detector
| Certification | Details |
| With ISO9001:2008 International Quality System Certification | |
| Our Factory is below to Guangdong Government Support Enterprise | |
| With Imports and Export Right | |
| CE certification | |
| With Chinese Security Inspection Report | |
| Photo of Certification |
|

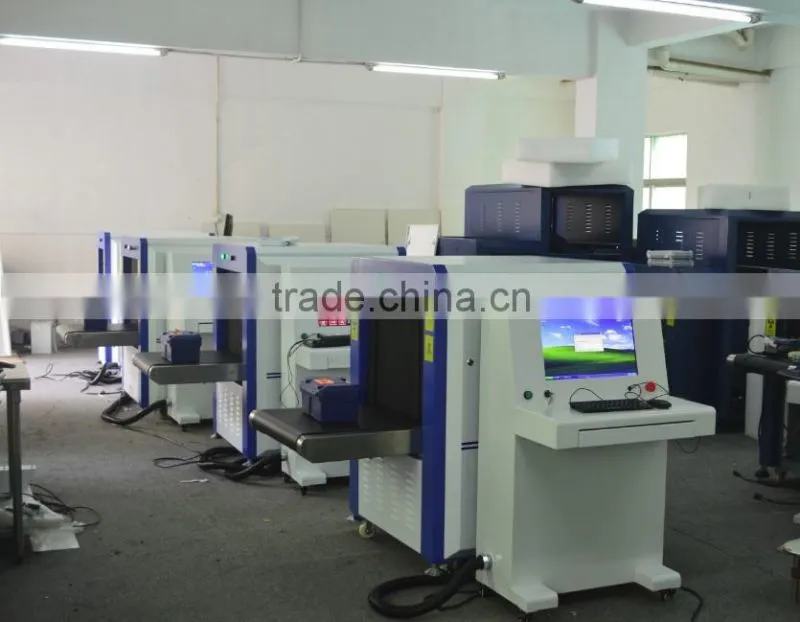

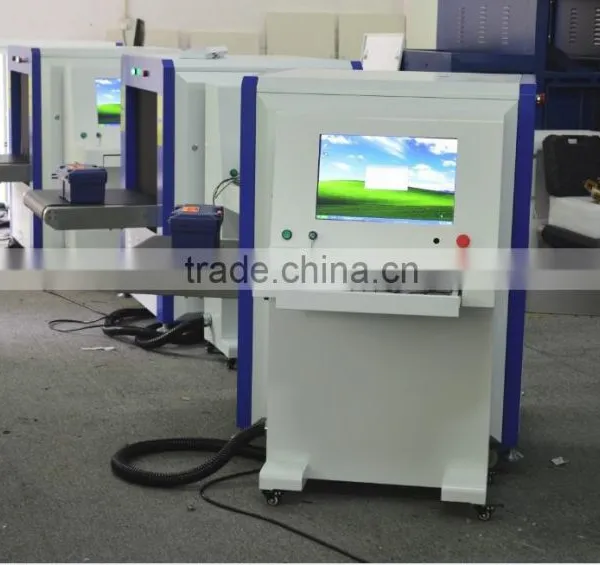

Factory show time:
| Shenzhen MCD Electronics Co.,Ltd is a large-scale security equipment manufacturer, which interprets R&D, manufacturing and marketing together. Founded in 2005, MCD mainly concentrated on developing Metal Detector, Electronic Article Surveillance(ESA) devices, Food Packaging Testers, X-Ray Package Checkers, Under Vehicle Inspection Equipments, Explosion-proof equipments ect. Our products include Walk through Metal Detector Doors, Underground Metal Detectors, Handheld Metal Detectors, ESA for supermarkets and libraries, Needle Detection Machines, X-ray Inspection equipments, Under Vehicle Inspection Mirrors, ect. Our products have been widely used in airports, embassies, army, prisons, prosecutions, government agencies, customs, ports, large public events and exhibitions, as well as places need valuable security. Cooperating with many well-known foreign companies equipped us with strong technology strengths, speedy products development. With strict management regulations, our products strictly produced under the ISO9001:2008 standard. With more than 3000 square meters production workshop, full flow operation, full-equipped production and testing equipments, we promise to offer the best products for our clients. |
| Under the solid strength of the company, excellent R&D team, impressive stability and performance product assure R&D purposes and offering most affordable price to clients as our early design purpose, we have established, mutual beneficial, win-win and long-term cooperation relationship with our clients. With the effort of all our staff, our company has developed into a leader manufacturer in safety testing equipment industry just in a few years. |
| Our company located in Chunhu Industrial Zone, Egongling,Shenzhen city, GuangDong Province, which is the junction of Shenzhen and Dongguan.It’s convenient for traffic and also with exquisite environment. Products have already passed CE, FCC, SONCAP, ROHS international certification tests,etc. We are sure to be the best trading partner of foreign buyers and foreign trade companies. We are a company with self achievement, servicing to the community as a starting point, and building a harmonious society as the management objective. Friends from all over the world are welcome to come to our company to visit and extend cooperation with us. Making the due contribution to the human security is our greatest honor. |

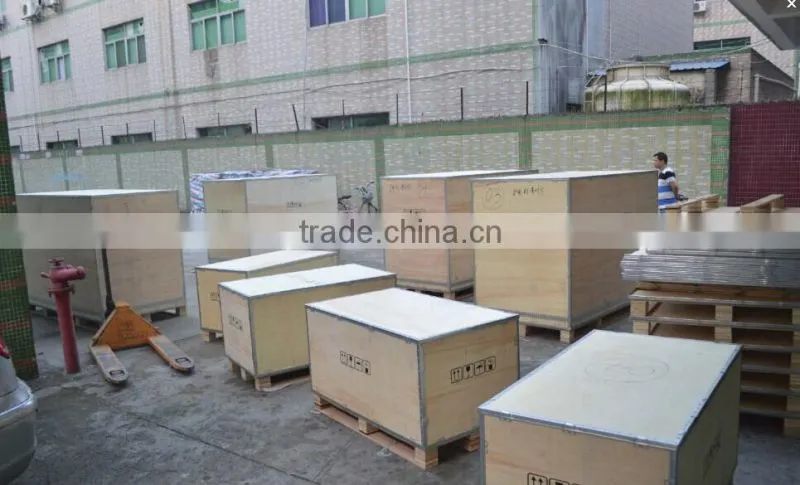

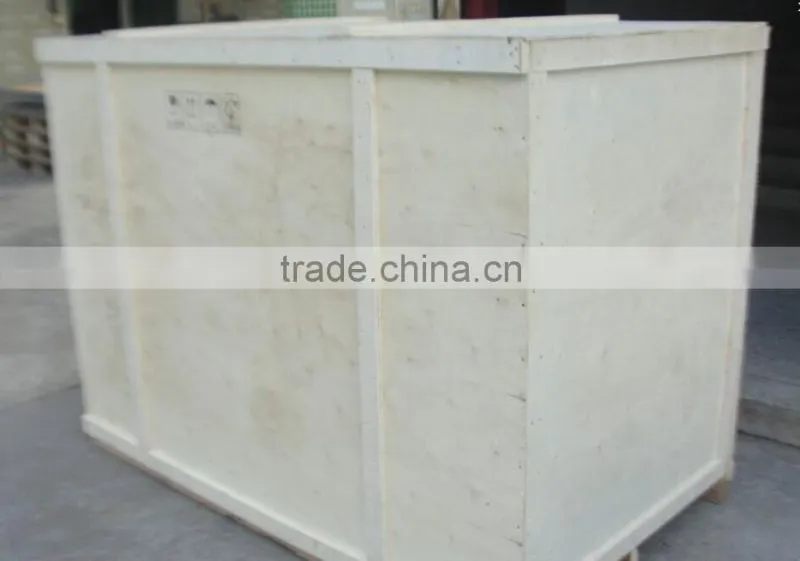

Packaging of our MCD-6550 conveyor belt metal detector
