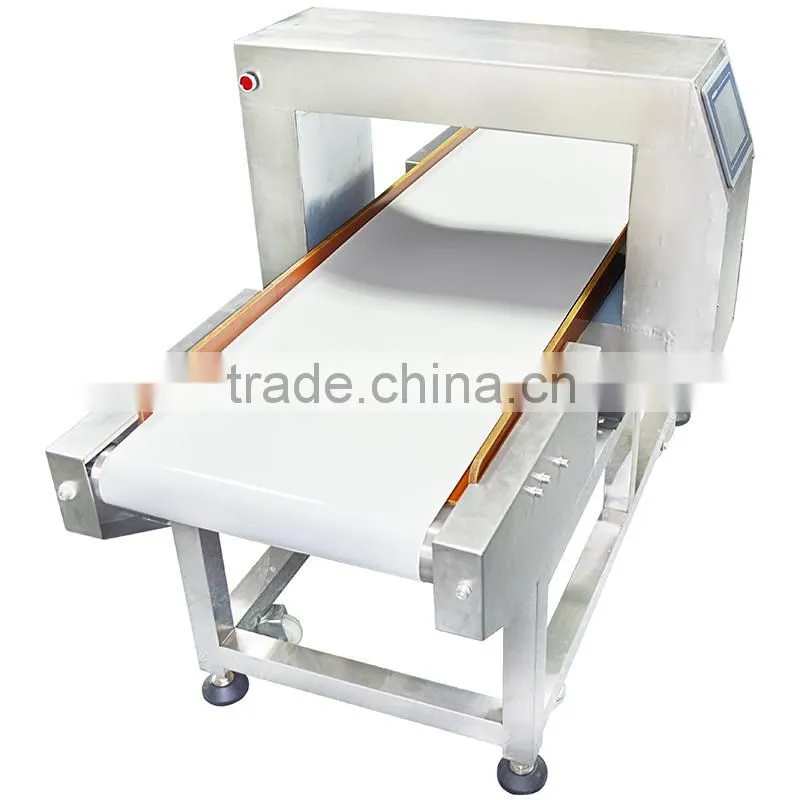

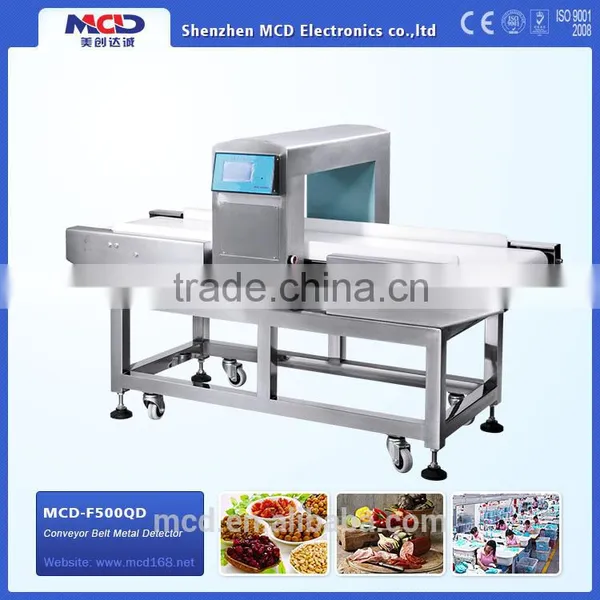

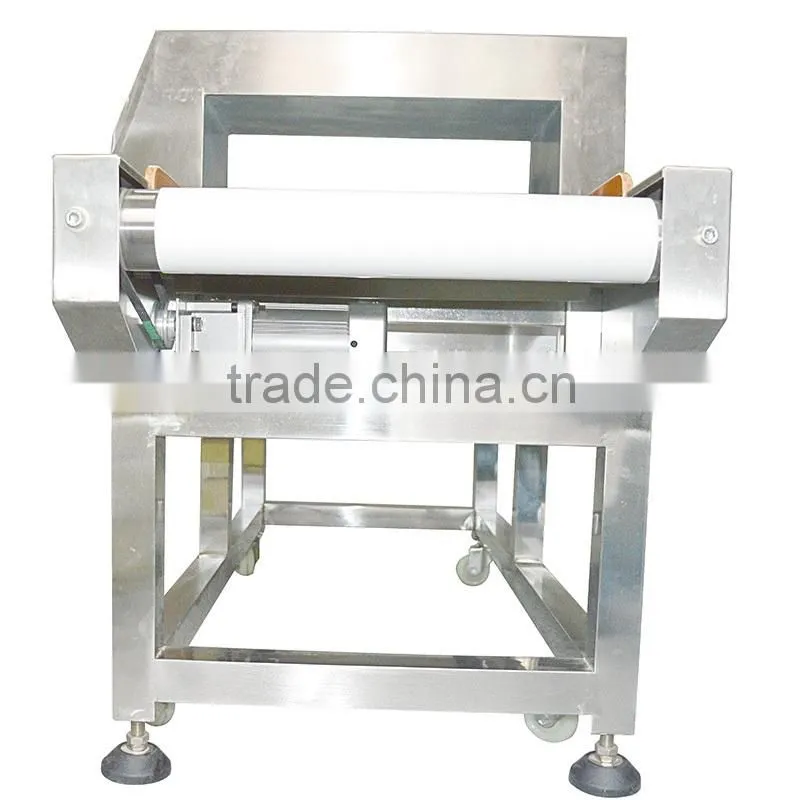

Security Conveyor Food Metal Detector , Suitable for Checking Popcorn
Quick Detail:
- Based on DSP technology
- Detecting width:45-120cm
- Detecting height:10-50cm
- Detecting sensitivity:Fe dia. 0.8mm-3.0mm ,US304 dia. 1.5mm-5.0mm
- Sensitivity adjustment: 0-9 level adjustment
- Detecting adjustment:Manual and belt stop
- Belt Speed: 25m /min
- Power Supply: AC100-265V,50-60Hz Single phase
- Rated Output: (appr)90W
- Dimension size:(150-170)cm(L)*(80-90)cm(W)*(85-120)cm(H) (Demand can be made)
Key Features:
1. Dual-loop circuit design, it can detect ferrous and non-ferrous and other metal
objects, the sensitivity can be adjusted separately, with memory function can be
stored 10 kinds of test material.
2. Detector with audible and visual alarm, and automatically exclude, stop, rewind
functions, user-friendly menu, easy to operate touch screen. Machine made of
stainless steel,anti-corrosion, no rust, easy to clean up.
3. Conveyor and pallet assembly used in the U.S. "FDA" standards of white non-toxic
materials.
4. Detection accuracy over the corresponding provisions of HACCP system Detect
indicators.
5. Can use with production line.
6. It is mainly used for detecting the metal chips inside the nuts,rice,tea and wood
processing industry etc.
Parameter:
| Model | MCD-F500QD | ||||||||
| Aperture width (mm) | 90 | 120 | 150 | 200 | 250 | 300 | 350 | 400 | |
| Aperture height (mm) | 300 | 300 | 400 | 400 | 500 | 500 | 600 | 600 | |
| Detection sensitivity (mm) | Fe | ≥0.6 | ≥0.7 | ≥0.8 | ≥1.0 | ≥1.5 | ≥2.5 | ≥3.0 | ≥3.5 |
| SUS | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥5.0 | ≥6.0 | ≥7.0 | |
| Belt width (mm) | 280 | 380 | 480 | 580 | |||||
| Table height (mm) | 700 | ||||||||
| Loading capacity (kg) | 1-100 | ||||||||
| Power supply | 100-265VAC , 50-60HZ | ||||||||
|
Notice: 1. The technical parameter above namely is the result of sensitivity by inspecting only the test sample on the belt. 2. The sensitivity would be affected according to the products being inspected and working environment. 3. Requirement for different size by customers can be fulfilled. | |||||||||
Application
- Our products are mainly used in food industry production materials, packaging materials and finished goods and the metal impurity to food safety testing into circulation market needs, suitable for all kinds of materials (flour, stuffing, sauce, coffee, candy, cakes, cookies, sausage, meat products, fruit and vegetable products, and all kinds of small food),
- Other applications including toys (software toys, plush toy, plastic toys, clothing, bedding, knitting and weaving, cement, chemical, beverage, leather, textile, paper, plastic, Chinese traditional medicine, wood processing, smashing processing industries, used to detect lost in all kinds of metal materials or products sundry (such as iron, copper, aluminum, lead and tin, stainless steel etc.).
