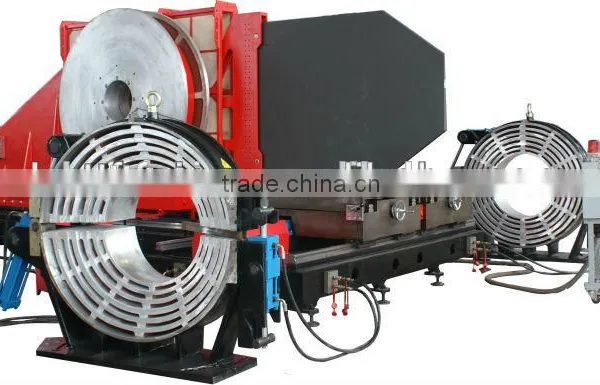

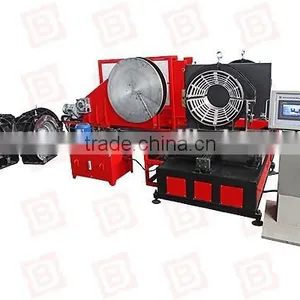

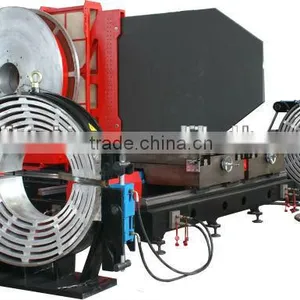

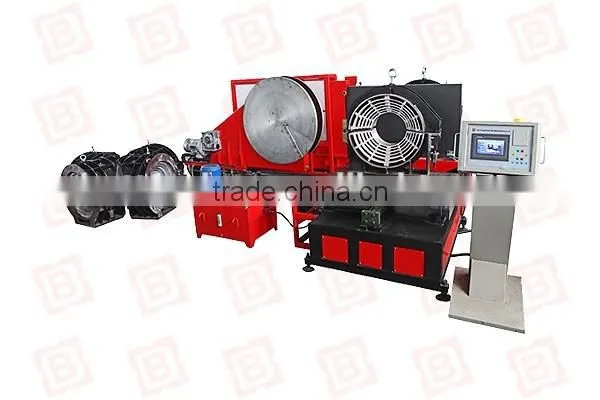

Help CenterSHG1200 Fitting Fusion Welding Machine
Related Products
-
SHG800 Fitting Fusion Welding MachineNegotiableMOQ: 1 Set -
SHG630 Fitting Fusion Welding MachineNegotiableMOQ: 1 Set
-
SHG450 Fitting Fusion Welding MachineNegotiableMOQ: 1 Set
-
SHG315 Fitting Fusion Welding MachineNegotiableMOQ: 1 Set
-
Angle Fusion Machine for Elbow, Tee and Cross PE Pipe Fittings (SHG450)US$ 26,150 - 26,600MOQ: 1 Set
Plastic pipe fitting fusion welding machine SHG-1200/630
Ranges of tee: 630mm-1200mm
(630mm-710mm-800mm-900mm-1000mm-1100mm-1200mm)
Ranges of cross: 630mm-1200mm
(630mm-710mm-800mm-900mm-1000mm-1100mm-1200mm)
Ranges of elbow: 630mm-1200mm
(630mm-710mm-800mm-900mm-1000mm-1100mm-1200mm)
u Ranges of application: PE,PP and PVDF
u Working voltage: ~380V ±10%,50Hz
Total power: 71.5 kW, including: planing tool motor:4 kW, heating plate:60 kW, hydraulic unit motor: 7.5 kW
u Working voltage: ~415V ±10%,50Hz
Total power: 85.4kW, including: planing tool motor:4 kW, heating plate:73.9 kW, hydraulic unit motor: 7.5 kW
u PTFE coated heating plate, high accuracy temperature controller, difference in heating plate surface temperature ≤±7°
u Environment temperature: -10° ~ 45°
u Electronic count-down timer for heating and cooling time. PLC control system.
u Whole machine consists of five parts: basic frame ( including: heating plate, planing tool, and hydraulic system), elbow clamps, tee clamps, cross clamps and electrical box
ACCESSORIES LIST
SHG-1200/630 fitting fusion welding machine
No |
Name |
unit |
Qty |
Remarks |
||
1 |
Back bed |
set |
1 |
Planing tool & heating plate |
||
2 |
Front bed |
set |
1 |
Two dragging plate |
||
3 |
Planing tool |
set |
1 |
4kW |
||
4 |
Tee clamps and seats |
set |
1 |
630,710, 800, 900, 1000,1100&1200mm |
||
5 |
Elbow clamps and seats |
set |
1 |
630,710, 800, 900, 1000,1100&1200mm |
||
6 |
Locking bolt of clamps seats |
set |
1 |
Outer hexagonal screw:M20*70/24 pcs inner hexagonal screw :M20*70/ 12pcs |
||
7 |
Location cylinder pin |
pcs |
6 |
Φ50*60/ 4pcs(Tee clamps), Φ50*60/ 2pcs(elbow clamps) |
||
8 |
Location handle |
pcs |
1 |
Φ18 |
||
9 |
Device for one side planing |
pcs |
1 |
|
||
10 |
Quality Guarantee |
pcs |
1 |
|
||
11 |
Operation manual |
pcs |
1 |
|
||
Attachments with machine | ||||||
No |
Name |
Unit |
Qty |
Remarks |
||
1 |
Spare blades |
set |
1 |
2pcs |
||
2 |
Screws for inserts |
set |
1 |
12*70 |
||
3 |
Box wrench |
pcs |
1 |
30 mm |
||
4 |
Adjustable wrench |
pcs |
1 |
18 mm |
||
5 |
Ring spanner |
pcs |
1 |
360 mm |
||
6 |
Double end opened spanner |
pcs |
6 |
36*36, 27*27, 24*24, 17*19, 32*30,17*14,8*10 one piece each |
||
7 |
Inner hexagonal spanner |
set |
1 |
5~14mm one piece, 17mm one piece |
||
8 |
Cross head driver |
pcs |
1 |
|
||
9 |
Chisel for wood working |
pcs |
1 |
|
||
10 |
Hammer |
pcs |
1 |
|
||
