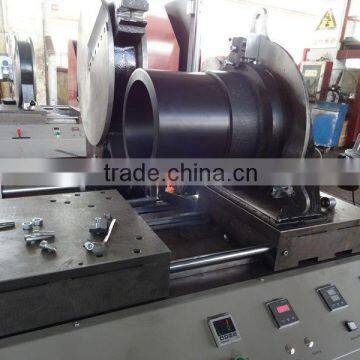

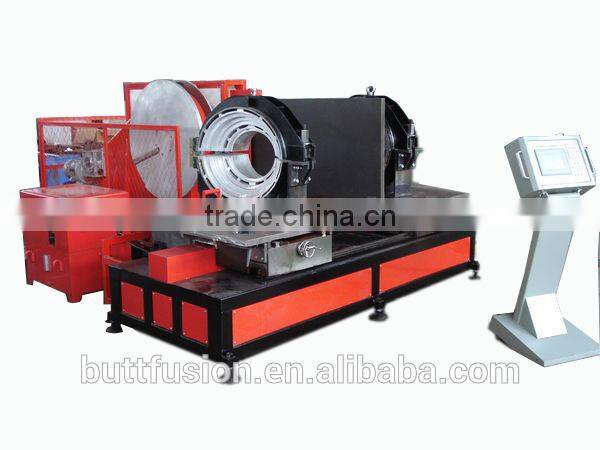

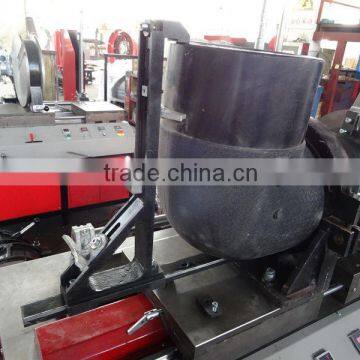

SHG450 plastic pipe fitting fusion machine
Detailed Product Description
1 Suitable for fabricating Elbow, Tee, Cross fittings from PE, PP,and PVDF in workshop
2 Pipe size: 250mm~450mm
Application and features
Suitable for fabricating elbow, tee, cross and Y shape (45° And 60 ° ) fittings of PE PP PVDF in workshop. Also used to lengthen the injection moulded fitting and make an integrated fitting.
Integrated structure. Nothing remains but to choose the different special clamps while fabricating different fittings
Removable PTFE coated heating plate
Electric planing tool with safety limit switch
Low starting pressure and high reliable seal structure
Separate two-channel timer records times in soaking and cooling phases.
Digitally High-accurate and shockproof pressure meter indicates clearer readings.
Linear guide ways are equipped with heating plate and planing tool
Products comply with 98/37/EC and 73/23/EEC standards
Optional parts
Special clamps for welding flange stub
Special clamps for short spigot fitting
Special clamps for welding Y shape (45deg; And 60deg; ) fitting
Model |
SHG450 |
|
Pipe Sizes (mm) |
200,225,250,280,315,355,400,450, |
|
Application |
0~90°elbow, tee, cross, 45° and 60° wyes(optional parts should be used) |
|
Heating Plate Max. Temp. |
270°C |
|
Temp. deviation in surface(170~250°C) |
±7°C |
|
Pressure adjustable ranges |
0~16MPa |
|
Working Voltage |
380V,50Hz |
|
Heating Plate Power |
12.2KW |
|
Hydraulic unit power |
2.2 KW |
|
Planing tool power |
3.0 KW |
|
Total Power |
17.4KW |
|
Weight |
2850KG(Don`t include optional parts ) |
|
Packing |
Cases |
4 Plywood Cases |
Volume |
14.66 CBM |
|
