Electrofusion welding machine for PE pipe fitting

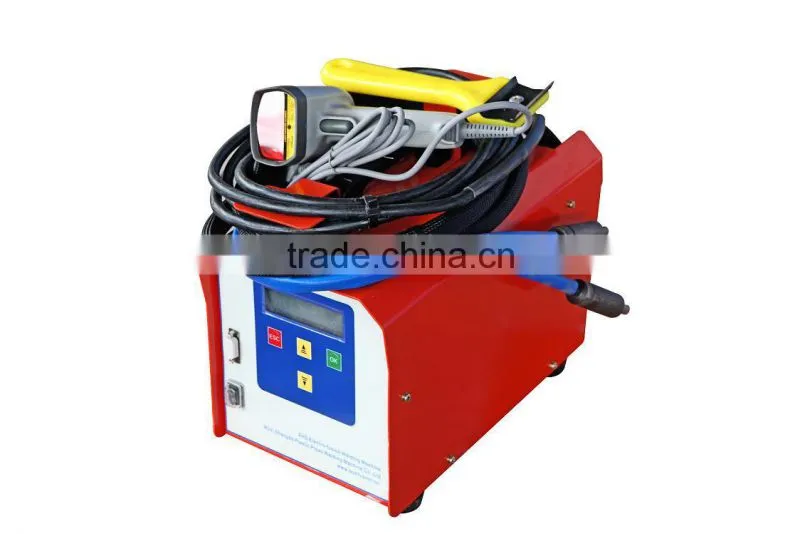

HDPE Electrofusion machine with scanner
Application and features:
* High-level MCU is used as control core, with abundant parameter setting, measuring and perfect protective function
* High brightness liquid crystal display, Chinese and English language operation, man-machine interactive interface. Wide power supply and voltage input, suitable for on-the-spot electric network level.
* High precision control to electric energy and time, insuring welding quality
* Swiftly output response time when power supply breaks, high stability
* With 10 phases programmable welding function, suitable for welding requirement of various fittings
* Flexible welding parameter input mode: manual input through keyboard or bar code scanning input
* Large capacity welding data storage
* Optimizing design and SMT welding craftwork, reducing failure rate of whole machine.
Technical Index:
Dimension |
LxWxH (mm) |
330x200x270 |
Input voltage |
Input voltage |
48V±10%, 220V±20% or 380V±20% |
Input frequency |
40~65Hz |
|
Output power |
Output voltage |
48V |
Output power |
3.5KW/12KW |
|
Main control characteristics |
Ambient temperature |
-15°C~45°C |
Storage temperature |
-30°C~70°C |
|
Control mode |
Constant volt/Constant current/Constant power |
|
Recording number of data |
500 |
|
Electrical amperage constant precision |
£±0.5% |
|
Overload capability |
1.5le, 1min |
|
Time control precision |
£±0.01% |
|
Temperature measuring precision |
±0.5°C |
|
Duty cycle |
60% |
|
Data output port |
RS232 |
|
Protection |
Refer to failure list |
|
Running condition of administrative software |
Windows 2000/XP |

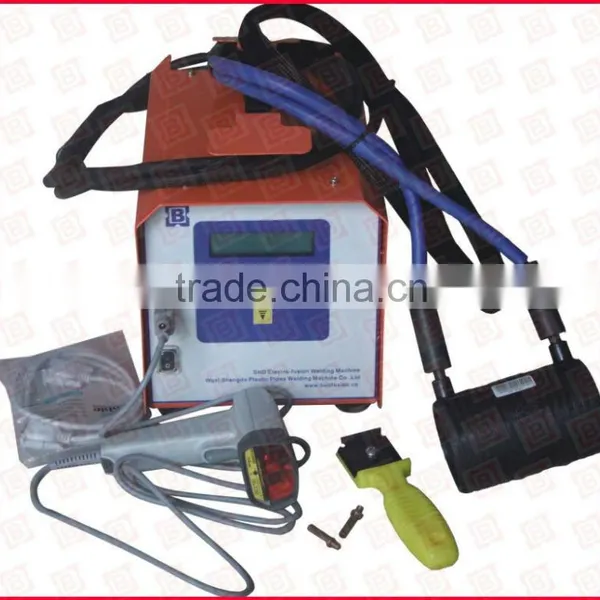

Accessories List:
Item |
Description |
Unit |
Qty |
Remark |
1 |
Operation manual |
Pcs |
1 |
|
2 |
CD |
Pcs |
1 |
|
3 |
Cable connectors |
Set |
1 |
F 4.0 and F 4.7 |
4 |
Storage wooden box |
Set |
1 |
|
Packing List
Item |
Packing dimension |
N.W (kg) |
G.W (kg) |
Remark |
1 |
650x350x510 |
30 |
45 |
Basic frame and attachments |
Total |
0.12CBM |
30 |
45 |
|

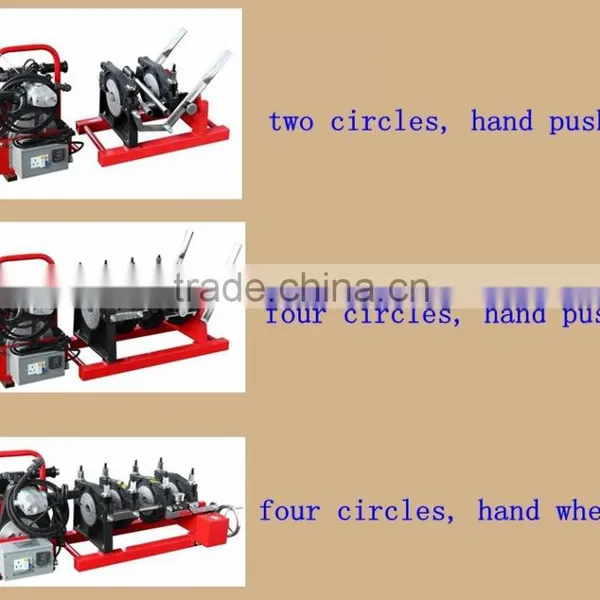

Our product series
Our factory
The exhibition style
Our excellent service
There are a group of excellent r&d staff constantly developing new products. Our quality control people test each of detection device carefully and responsibly. Our packing workers customize plywooden cases according to the size of each piece of equipment. We have a group of outstanding business developers.If you are unable to solve some technical problems,we can take professional technical engineers to on-site guidence on your side.
