GZK-C Auto Carton Slotting Machine

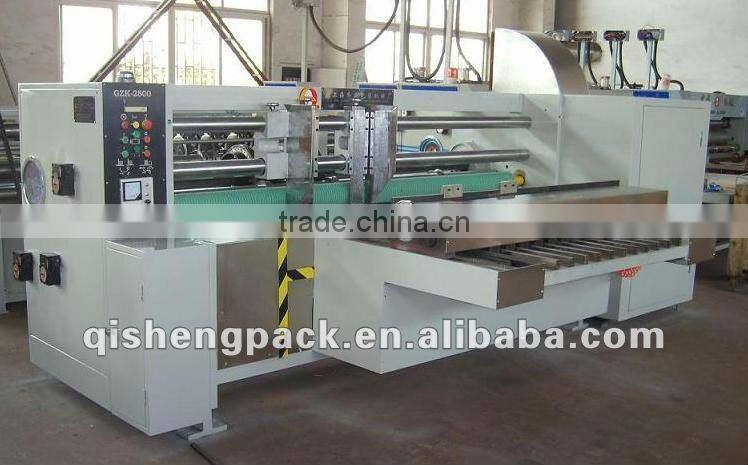

GZK-C Auto Carton Slotting Machine photo-1
US$ 22,000 - 34,900 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, Textiles, Machinery & Hardware, Textiles
Packaging Type:
Cartons
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Other, Textiles, Machinery & Hardware, Textiles
Packaging Type Cartons
Packaging Material Paper, Wood
Automatic Grade Automatic
Driven Type Electric
Voltage 220V/380V
Power 12KW
Place of Origin Shanghai, China
Brand Name Qisheng
Model Number GZK-C
Weight 4500kg
Dimension(L*W*H) 3900*2450*2400
Certification ISO 9001 : 2001
After-sales Service Provided Engineers available to service machinery overseas

Specifications

GZK-C Auto carton slotting machine
>Adsorption type
>Creasing accurately
>Four in one
>Adjustable suction volume

                      GZK-C Auto carton slotting machine



Featuresof this Carton Forming Machine:
1) The advanced negative pressure absorption system is equipped for feeding sheet. Suction volume is adjustable, which makes uneven sheets feed smoothly
2) Slitting, creasing, slotting and flap cutting can be finished in one single passage
3) Creasing accurately
4) Hole making device is optional



Model

GZK1200*2200

GZK1200*2600

GZK1400*2600

GZK1400*2800

GZK1400*2600

GZK1600*2800

GZK1600*3000

Width

2200

2600

2600

2800

2600

3000

3000

Max   mechanical speed(sheets / min)

140(sheets/min)

140(sheets/min)

120(sheets/min)

120(sheets/min)

120(sheets/min)

110(sheets/min)

110(sheets/min)

Maximum   feed size(MM)

1200*2000

1200*2400

1400*2400

1400*2600

1400*2400

1600*2600

1600*2800

Skip   feed size(MM)

1400*2000

1400*2400

1600*2600

1600*2600

1600*2600

1700*2600

1700*2800

Minimum   feed height(MM)

300*650

300*650

350*400

350*400

350*400

420*400

420*400

Maximum   slot depth(MM)

7*300

7*300

7*350

7*350

7*350

7*400

7*400

Minimum   slot opening distance(MM)anti-knife (L*W*L*W)

200*65*200*65

200*65*200*65

220*65*220*65

220*65*220*65

220*65*220*65

250*70*250*70

250*70*250*70

Minimum   slot height(MM)

7*100

7*100

7*100

7*100

7*100

7*100

7*100

For   board thickness

0-10MM

0-10MM

0-12MM

0-12MM

0-12MM

0-10MM

0-10MM

Main   motor power

7.5KW

7.5KW

7.5KW

7.5KW

7.5KW

7.5KW

11KW

Total   power

12KW

12KW

14KW

14KW

14KW

16KW

16KW






Note: above models’ width can be made according to customer size. Themost width can be3500mm.

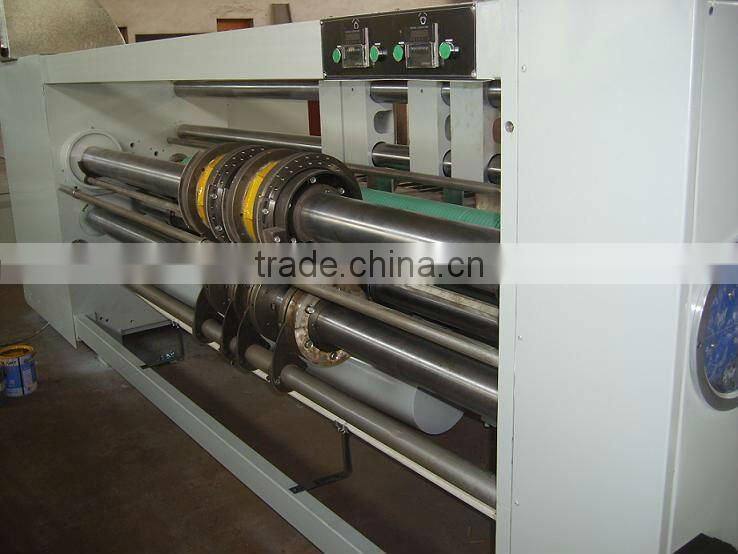

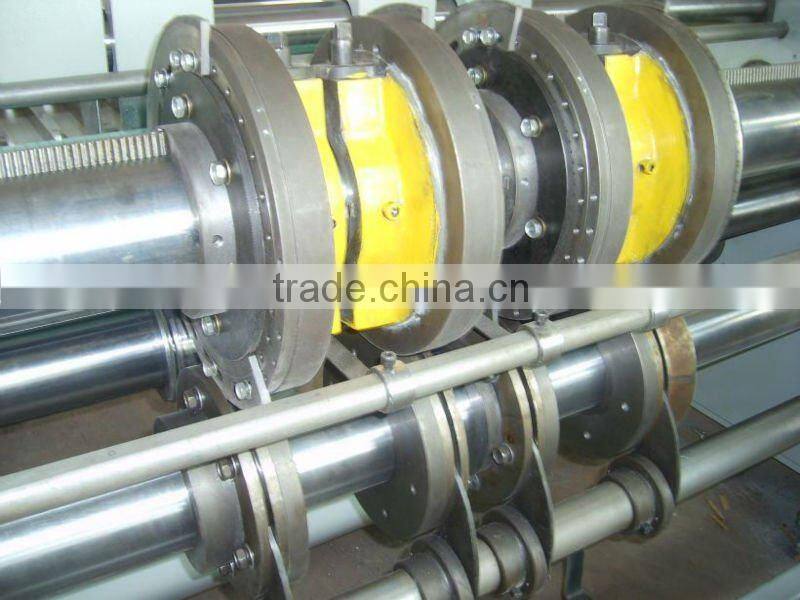

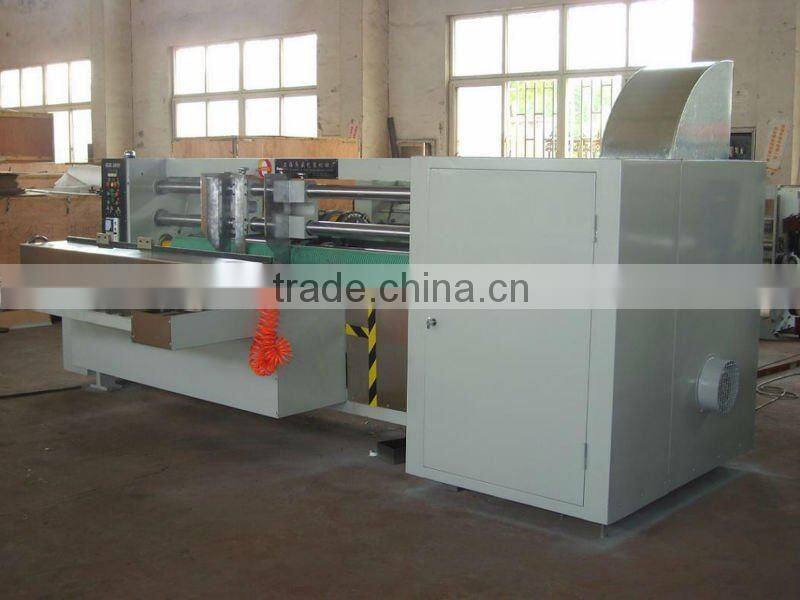

 GZK-C Auto carton slotting machineGZK-C Auto carton slotting machineGZK-C Auto carton slotting machine
