Specifications
Automatic Four colour Flexo Printing & Slotting Machine1.export to more than 20 countries
2.warranty: 1 year
3. ISO CE

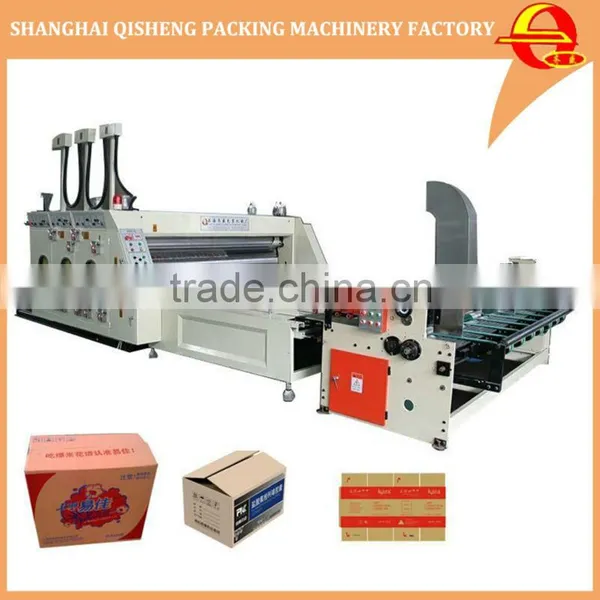

Automatic Four colour Flexo Printing Slotting Boxing Making Machine
Features:
1. Cardboard size adjustment adopts screw roller adjusting system, one man operating, simple and fast.
2. Available for adjustable paper platform, more adaptable for kinds of cardboard, stable and precise paper feeding.
3. Adopts advanced seamless rubber strap, which has big friction, long life, low voice, easy maintenance and high economic efficiency.
4. Double stretch power control, convenient and reliable.
5. Transmission roll adopts decorative design roll, which increase the friction between strap and roll, ensure stable and fast cardboard feeding.
6. This machine includes electric and magnetic clutch separating brake system.
7. This machine adopts PLC auto program control, so it has high automatic extent.
8. Frequency converter drives motor to realize stable velocity change operating.
9. Light and electric signal brakes by PLC control power and magnetic clutch to keep pace with the main engine.
Cardboard feeding section
1.Automation chain paper feed
2.Postion flexing ensures precise paper feeding.
3.Automatic counting.
Printing section
1.Planetary transmission and electrical positioning.360-degree adjustment in both dynamic and static condition.
2.The embossing rollers get apart from printing template oned machine stops.
3. The upper ink roller is equipped with load-free system that prevents ink from getting dried when machine is running.
4.Colors of 1 to 4 can be combined easily.
5. Pneumatic siphon ink supply circulation system
Slotting section
1.360-degree adjustment of grooving position.
2.Integrated movement of the four grooving blades.
3.Top-quality steel blades are used to guarantee smoothness in grooving.
4.Gear are made of 45# forged and high frequency steels that makes no-gap transmission.
5.Transmission gears are joined together with no bonds,which ensures long-tem printing precision.
6. Dip-in lubrication guarantees long life.
7.Electrical shit technology and pneumatic interlock is used on printing section and grooving section.
8.Imported electrical appliances and bearings are used.
Main technological parameters
Model(Unit:mm) |
1200*2200 |
1400*2600 |
1400*2800 |
1600*2800 |
1800*3000 |
Maximum feeding size |
1200*2000 |
1400*2450 |
1400*2650 |
1600*2650 |
1800*2850 |
Minimum feeding size |
350*350 |
350*350 |
350*350 |
450*450 |
500*500 |
Maximum printing breadth |
1150*1800 |
1350*2200 |
1350*2400 |
1550*2400 |
1750*2600 |
Maximum slotting size |
7*300 |
7*350 |
7*350 |
7*400 |
7*450 |
Maximum slotting clearance |
100 |
110 |
110 |
120 |
130 |
Slotting blade thickness |
7 |
7 |
7 |
7 |
7 |
Standard printing plate thickness |
7 |
7 |
7 |
7 |
7 |
Maximum speed |
70 |
65 |
65 |
60 |
50 |
Maximum height of pushing paper |
-200mm |
-200mm |
-200mm |
-200mm |
-200mm |
Minimum height of pushing paper |
300mm |
350mm |
350mm |
450mm |
500mm |
Min feeding size |
300*400 |
350*400 |
350*400 |
450*500 |
500*600 |
