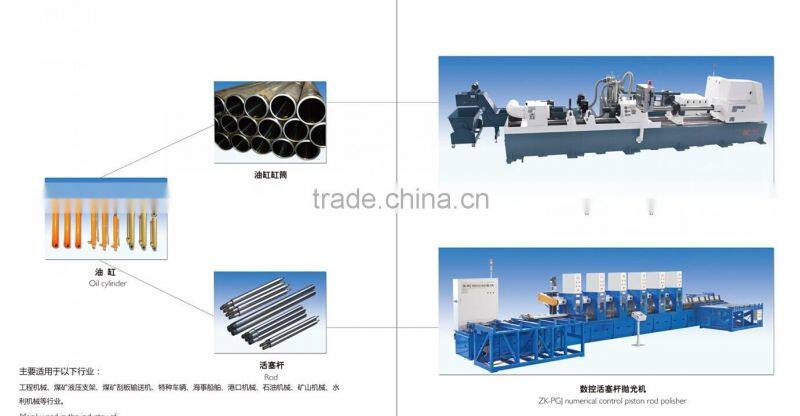

Cheap cnc cylinder processing machine
Field of Application
Contruction machinery, colliery hydraulic holder, colliery scaper conveyor, special usage truck, maritime ship, harbour machinery, petroleum machinery, mining machinery, water conservancy machinery etc.
Main Parameters | ||||
Model |
ZTG2530 |
ZTG2560 |
ZTG2590 |
|
Workpiece dimension |
Internal diameter(mm) |
Φ50-250
|
Φ80-250
|
Φ90-250
|
External diameter(mm) |
Φ60-300
|
Φ90-300
|
Φ100-300
|
|
Processing length(mm) |
500-3000 |
1200-3000 |
1650-9000 |
|
Speed |
Spindle speed(r/min) |
50-1500 |
||
Locating seat movement(mm/min) |
6000 |
|||
Spindle box movement(mm/min) |
8000 |
|||
Motor power |
Spindle servo(Kw) |
37/56 |
||
Feed servo(Kw) |
6 |
|||
Cooling system |
Oil tank capacity |
4150+1850 |
4150+1850 |
6000+1850 |
Pumping capacity |
>500 |
>500 |
>700 |
|
Filter fineness |
50 |
|||
Total motor power |
90 |
100 |
||
Dimension |
12100*3600*2200 |
18820*3600*2200 |
25400*3600*2200 |
|
CNC system |
Spanish:FAGOR, Germany:SIEMENS |
|||
Yantai Haige Machine Tools Co., Ltd (original Yantai Ruihai Machinery Co., Ltd) establishes in 19999 and is a professional company engaged in producing finishing equipment and processing equipment of bright material, such as centerless lathe (commonly known as peeling machine or flaying machine), straightening machine, abrasive belt grinder (buffing machine), screw whirling mill and their auxiliary machines. It is an innovative and high technology enterprise, which integrates research and development, production and sale of finishing equipment for professional slender axles.
The company is equipped with specialized technical research and development department, and its ability of research and development, configuration of software and hardware and scale of personnel rank first in the industry. From design concept, technological level, production scale, quality in use to after-sale service, the company attains domestic leading level. It owns professional factories for machining and assembling, and full set of advanced equipment of precision machining, so it can produce high-precision core components by itself. Further more, the company possesses abundant ability of research and development, and perfect after-sale service system.
Diameters of products manufactured by the machine vary from Φ5mm to Φ350mm. The company can contract for full-set planning, design and manufacture of metal bar, tubing, and finishing line of wire rod, and meet the needs of customers at different levels. We are able to help users achieve digitization and automation control and management. We can also meet the needs of larger enterprises at home and abroad, and enterprises which require the equipments have higher degree of automation, to fundamentally enhance users’ production efficiency and product quality.
