Specifications
Full automatic carton corrugated box equipment manufacturer1.One year warranty
2.Export to more than 20 countries
Full automatic carton corrugated box equipment manufacturer
Introduction for integral machine:
1.Machine adopts PLC program control, the drive to adjust the phase body, touch screen and button dual system operation; controllable roller intelligent automatic landing, the Indian version scrub the memory reset automatically, personalized Qi paper, fixed to complete the Auto Standby function.
2.Main drive gear made of high quality alloy steel (20CrMnTi), by program-controlled carburizing and quenching, grinding treatment, the accuracy can be achieved six high hardness, high-precision gears (tooth surface hardness HRC58-62).
3.Touch-screen display setting value, the control plate of each group and the position of the adjustment slot knives; can set the production rate, and a count and prompts.
4.Pull the paper delivery round of self-locking quick transfer function, avoid the destruction of the screw fastening devices operating on the roller and a great inconvenience.
5.Application of free connection device, eliminating the gap generated by the traditional connection to maintain long-term precision printing chromatic.
6.Gearing body splash with spray devices; lubrication system automatically cycles and installation of seepage oil bodies.
7.The units used between the cylinder lock and locking machine with a strong self-locking mechanism, to ensure the stability of the unit.

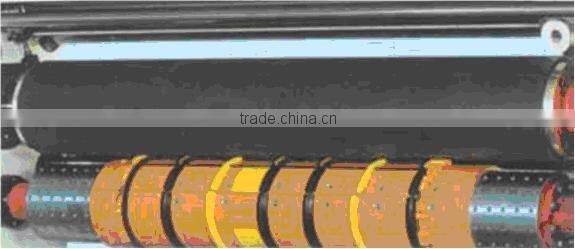

Servo edge feeder institutions
1.Use with fast response, high positioning accuracy, system stability, long service life of the servo motor, replace mechanical cam with electronic cam control.
2. Feeding the servo motor shaft axle and connected by timing belt, eliminating the work of any of the feed roller gaps, improve feed accuracy, and avoid wandering around the phenomenon of cardboard.
Unique quick-change semi-round structure, to ensure the consistency of feed location, feed wheel circumference to avoid inconsistencies in surface wear and replacement is very easy and fast.
Printing Part
1.Printing phase, the axial position with PLC programmable logic controller to control; machine touch screen, power button and dual action; print roller with automatic reset after wiping version of the memory function.
2. Linkage with the feeder roller lift, open or stopped when the feed roller and the printing plate according to the order automatically from, together.
3. Pull transfer paper designed to self-locking quick round of transfer function, avoid the destruction of the top compression roller fixtures.
4. Operations set the ink rollers and ink pump start and stop function; Indian Roller phase, digital display to adjust the axial position.
5. Department of foot plate electric switch device can be quickly linked version, adjusted to facilitate the work of changing version and scrub.
Slotting Part
1.Configuration selflocking preload adjusting structure quickly to ensure that the disk, between the long axis of the precision, the pressure line slowed the destruction of cardboard.
2.Parcel line of high quality polyurethane wheels pressure to protect the board from damage plasticity.
3. About synchronization with the axial electric shift linkage, so bottom line pressing roller, the upper and lower slot knife, guide roller synchronization adjustment.
4. Number of significant features with planetary gear-type phase adjusting mechanism, the phase of the slot, slotted box high for electric adjustment.
5. Selection of high quality alloy steel slotted knife, tooth blade width 7mm.
Die-cutting Part
1.When cutting the Department is in the standby state, the template will automatically roll roller disengaged with the pads in the same time reduce the load loss machine, prolong the Urethane and the die cutter life.
2.Work in the cutting department, excellent pads set to automatically roll displacement state; excellent pads roll roller speed differential with the template design; device from the automatic cutting mechanism of the cushion roll repair device can be carried out on Urethane multiple repair; excellent pads roll through the optimal design of cutting the workpiece to ensure product quality.
3.With the number of planetary gear display Phase adjustment of the phase adjustment of electric roller template.
4.Digital display of the template body roll axial fine-tuning of roller axial electric adjustment template.
5.Cutting roller, roller pads are made of high quality steel, after first normalizing internal, cylindrical for cutting, the hard chrome plating, after grinding, balancing, respectively coarse and fine adjustment on the two devices, so that the workpiece optimal state of balance.
Stacking Part
1.Splicing can be set to automatic and manual arm any operation, a separate paper, then transfer belt, easy to select the number of connected paper arm.
2. Transfer function with brake motor movements; column configuration on both sides of heavy bodies fall protection; to maintain a safe working machine working position.
3.Ministry stacking tray can be configured to take automatic or manual operation, allowing the stacking height of 1600mm.
4.Conveyor belt use wrinkles slip type, the transfer board when the non-slip smoothly.
Pneumatic connection tray in cardboard packing to a predetermined altitude, take care of paper paper pop-up, boosting the board.
Specification:
standard |
900*2000 |
900*2400 |
1200*2400 |
1200*2800 |
1400*2800 |
1600*2800 |
Machine max speed |
180 |
180 |
160 |
160 |
150 |
140 |
Machine economic printing speed(pcs/min) |
140 |
140 |
130 |
130 |
120 |
110 |
Max paper feeding size(mm) |
1000*2000 |
1000*2400 |
1200*2400 |
1200*2800 |
1400*2800 |
1600*2800 |
Min paper feeding size(mm) |
280*685 |
280*685 |
300*685 |
300*685 |
350*685 |
400*685 |
Paper feeding thickness range(mm) |
2.5-12 |
2.5-12 |
2.5-12 |
2.5-12 |
2.5-12 |
2.5-12 |
Max printing area(mm) |
950*2000 |
950*2400 |
1150*2400 |
1150*2800 |
1350*2800 |
1550*2800 |
Standard printing forme thickness (mm) |
7.2 |
7.2 |
7.2 |
7.2 |
7.2 |
7.2 |
Production power (kw) |
22 |
22 |
30 |
30 |
35 |
40 |
Total power(kw) |
40 |
40 |
45 |
45 |
45 |
50 |
