Specifications
Automatic corrugated paperboard slitting scorer1.cardboard carton Slitter Creasing Machine
2.selling well

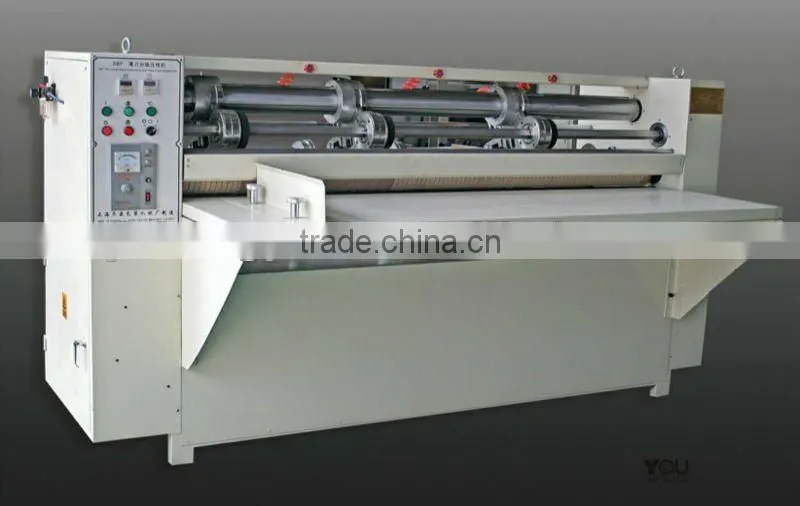

SBF Automatic corrugated paperboard slitting scorer
Functions:
Mark of main being used in carboard paper and line ball.
Features:
The machine is driven by stepless motor and its power is transmitted synchronically with gears and sprocket wheels. It is featured with low noise, smooth drive and easy adjustment of breadth. The paper separating blade is made of 1.2mm high-strength alloy and feeding rollers are made of rubber that leave no marks on paper. The machine is error-free in paper separating and good at saving electricity with lower rate. Equipped with auto and manual blade milling unit, the machine can ensure smooth edges of the paper and non shrunken corrugations and is recongized as the ideal equipment for carbon box and packing industries.
Main Technological parameters
Model(Unit:mm) |
SBF2200 |
SBF2500 |
SBF2800 |
Breadth |
2200 |
2500 |
2800 |
Maximum feeding size |
2100 |
2400 |
2700 |
Minimum feeding size |
120 |
120 |
120 |
Maximum blade diameter |
260 |
260 |
260 |
Minimum blade diameter |
225 |
225 |
225 |
Motor power rate |
3 |
4 |
4 |
Trace pressing wheels |
4 |
6 |
6 |
Paper separeting blades |
3 |
4 |
4 |
