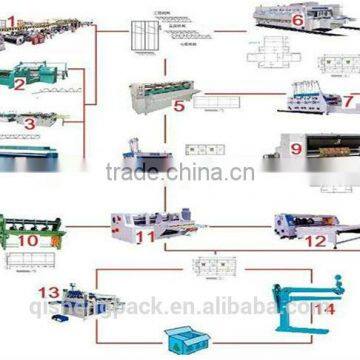

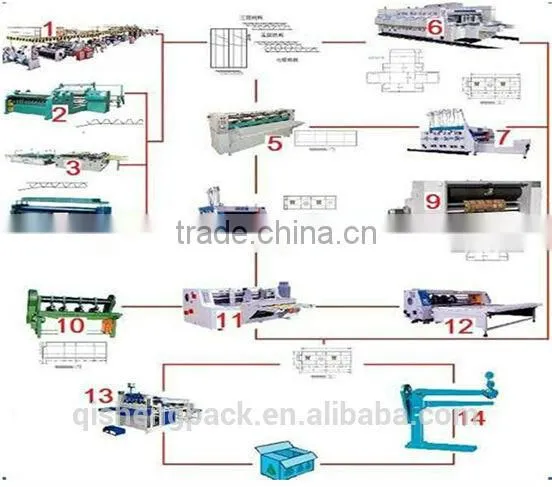

Turn-key project of complete carton box production plants equipment
Turn-key project of complete carton box production plants equipment
Features:
This machine is that the cardboard repairs the high-effect equipment that edge,line ball,slotting,eager angle accomplish for one time merely.Adopt an automation to give paper a vacuum assists attract paper system,hierarchic adjustment attraction,makes the curved cardboard voluntarily smooth send in.
Turn-key project of complete carton box production plants equipment
Functions:
1. Vacuum sucking.
2. Electrical adjustment of grooving phass with data displayed.
3. 360 degree adjustment of grooving phases with data displayed.
4. Intergrated adjustment of carbon box grooving clearance and pressing trace clearance.
5.The mid blade is move able, which makes processing of over-sized boxes easy.
6.The axis handles possessionas as a result of grinding chromate treatment.
7.Central filling of lubricant on 45# forged gears makes low noise and stable running.
8.Non-bond joining ensures long-term accurately.
9.The option of using hole-punching and hand-hole making is provided.
10.Top-quality paper separating and grooving blades are used.
11.Lighting system makes operation at night comfortable.
12.Schneider electric appliances and imported bearings are used.
13.PLC control with Human-machine-interface.
Turn-key project of complete carton box production plants equipment
Main technological parameters
Model(Unit:mm) |
1200*2800 |
1400*2800 |
1600*3000 |
Maximum speed |
140pcs/min |
120pcs/min |
110pcs/min |
Maximum feeding size |
1200*2500 |
1400*2500 |
1600*2700 |
Minimum feeding size |
300*650 |
400*650 |
450*650 |
Maximum prints area |
1150*2400 |
1350*2400 |
1550*2600 |
Standard printing template thickness |
7 |
7 |
7 |
Maximum grooving height |
300 |
350 |
400 |
Minimum grooving height |
100 |
100 |
100 |
Interval feeding |
1400*2500 |
1600*2500 |
1800*2700 |
Power of main motor(kw) |
22 |
30 |
35 |
Overall power(kw) |
30 |
40 |
45 |
Contact information:
Name |
Amanda Wang |
Tel |
+86-21- 61049284 |
Fax: |
+86-21- 61049279 |
Cell |
+86-13331873578 / 18616852399 |
Skype ( WeChat ) |
hjwang612 |
|
( Viber ) |
+86-18616852399 |

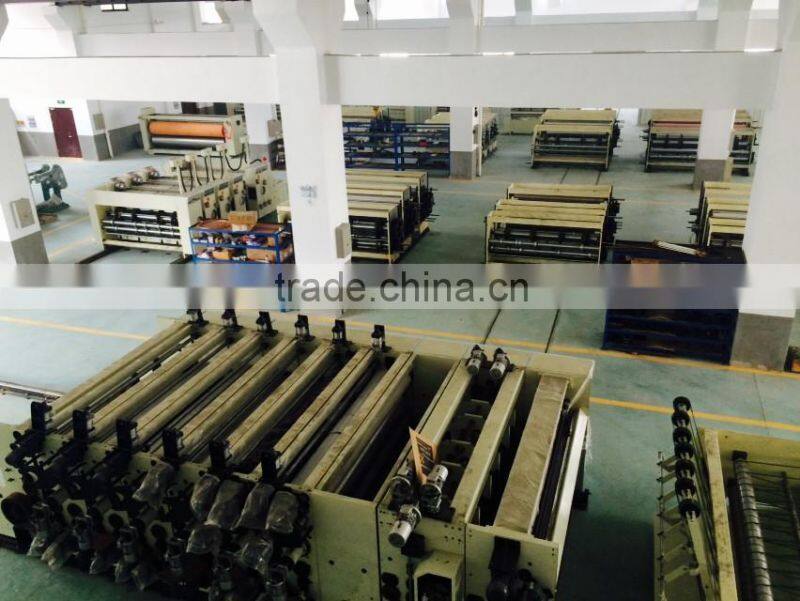

Welcome to visit our factory here in Shanghai to see our machines and talk with our engineers face to face about complete carton box production plants.
