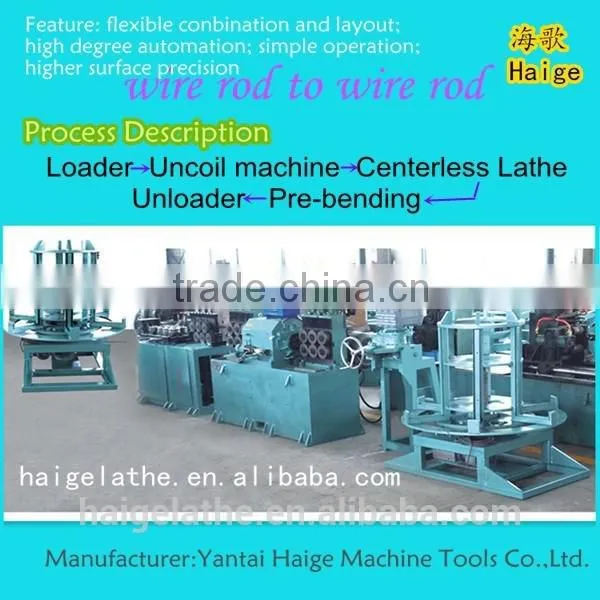

Help CenterProcess Machine Line Professional Manufacturer Combination of Bar Peeling and Straighteing Machine Unit
Related Products
-
Superior Performance Peeling Machine for BarNegotiableMOQ: 1 Set -
China Cnc Machine for Turning Round Steel Bar,turning Lathe,cnc MachineNegotiableMOQ: 1 Set
-
Metal Cutting and Stripping Machine Plc Control PeelerNegotiableMOQ: 1 Set
-
Cnc Machine Equipment Centerless Lathe Peeling BarNegotiableMOQ: 1 Set
-
Haige Machine Tool Lathe Centerless Bar Turning MachineNegotiableMOQ: 1 Set

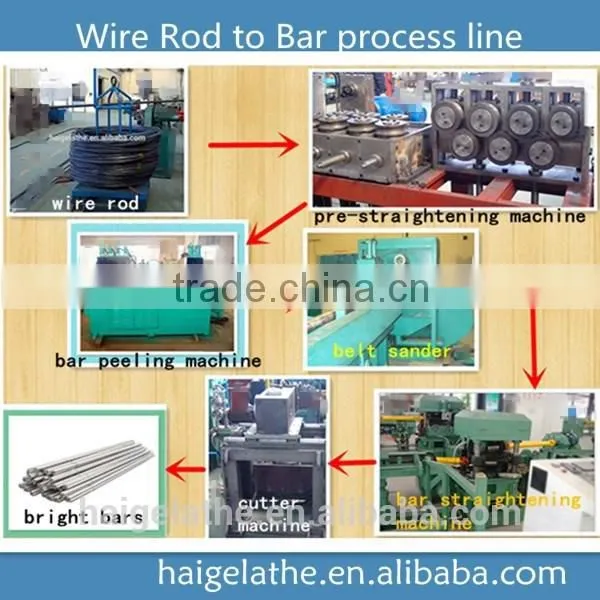

Wire rod to bar production line
Main parameters for your reference
Application show
A. 12 months Warranty period.
B. 24 hours welcome to your enquiry.
D.Engineers can offer overseas service,including
overseas installation,commssioning,training,etc.
E.Special discount can be provided to our distributor.
Yantai Haige Machine Tools Co., Ltd (original Yantai Ruihai Machinery Co., Ltd) establishes in 1999 and is a professional company engaged in producing finishing equipment and processing equipment of bright material, such as centerless lathe (commonly known as peeling machine or flaying machine), straightening machine, abrasive belt grinder (buffing machine), screw whirling mill and their auxiliary machines. It is an innovative and high technology enterprise, which integrates research and development, production and sale of finishing equipment for professional slender axles
Diameters of products manufactured by the machine vary from Φ5mm to Φ600mm. The company can contract for full-set planning, design and manufacture of metal bar, tubing, and finishing line of wire rod, and meet the needs of customers at different levels. We are able to help users achieve digitization and automation control and management. We can also meet the needs of larger enterprises at home and abroad, and enterprises which require the equipments have higher degree of automation, to fundamentally enhance users’ production efficiency and product quality.
The company regards quality of products as the life. It has passed ISO9001 international quality system certification, and strictly enforces the ISO9001 international quality management system. Dependent on strong software and hardware facilities and strict quality control, the company has passed the acceptance of State Administration for Entry-Exit Inspection and Quarantine Bureau, and furthermore, centerless lathe and straightening machine have won the Export License of Product Quality.
FURTHER INFORMATION WELCOME CONTACT WITH ME
___________________________________________________________________
Whatapp: 18663867057
Phone:+86 18663867057
Company Website: https://img13.fr-trading.com/
Specification |
KP25 |
|
|
Requirements before Peeling |
Diameter range(mm) |
Φ8-Φ25 |
|
Yield strength σb (Mpa) |
≤900 |
|
Surface hardness |
≤HB320 |
|
Requirement for curvature(mm/m) |
peeling≤1.5 but no dead blend |
|
Diameter tolerance |
d-2-GB/T702-2004 |
|
Roundness |
≤50% of diameter tolerance |
|
Surface Roughness (Ra) |
≤25μm |
|
After peeling |
Dia peeling depth (mm) |
0.5-1.5 |
|
Diameter range (mm) |
Φ7.5-Φ23.5 |
|
Diameter tolerance |
≤IT10 |
|
Surface roughness(Ra) |
≤6.3μm |
|
Roundness |
≤0.03 |
Speed(stepless speed) |
1.0-8.0m/min |
|
Motor of uncoiler machine |
15kw |
|
Feeding motor(uncoiler machine) |
2.2kw |
|
Main motor (centerless lathe) |
45kw |
|
Feeding motor(centerless lathe) |
4kw×2 |
|
