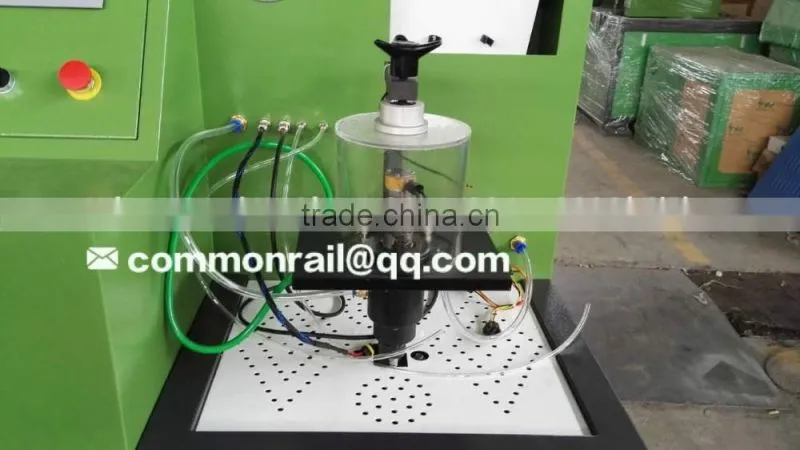

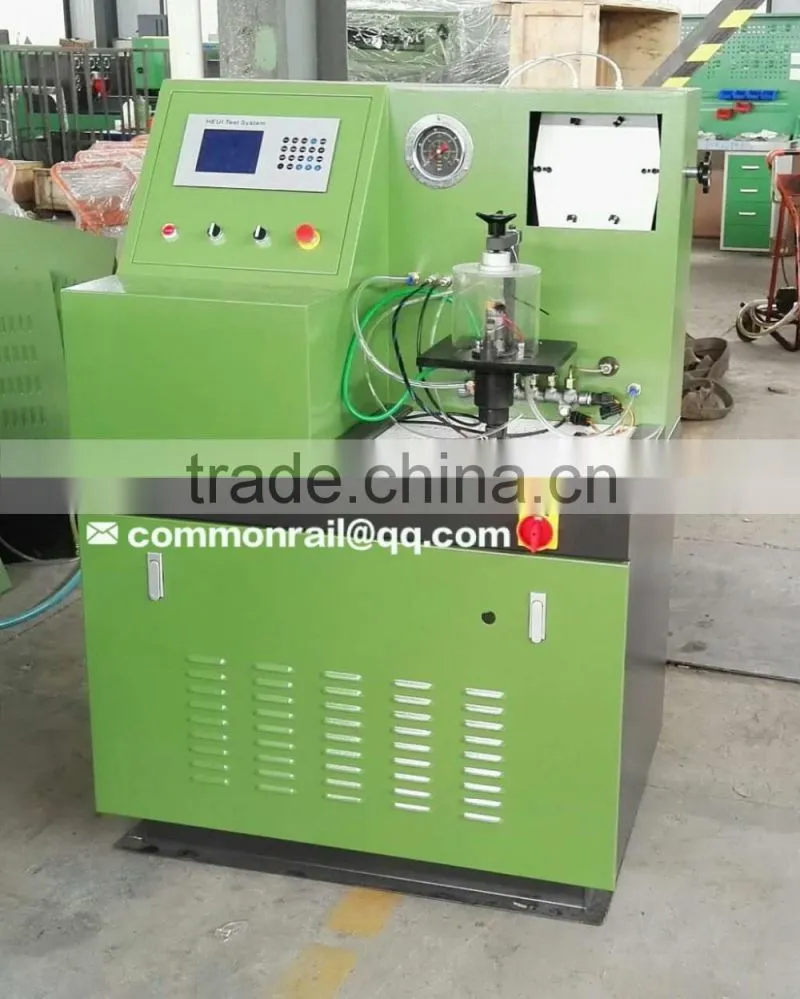

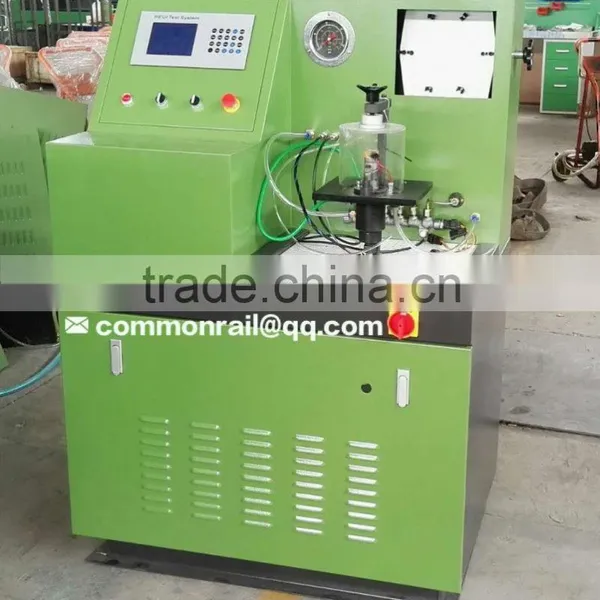

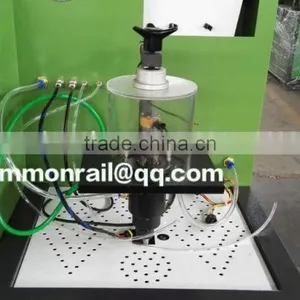

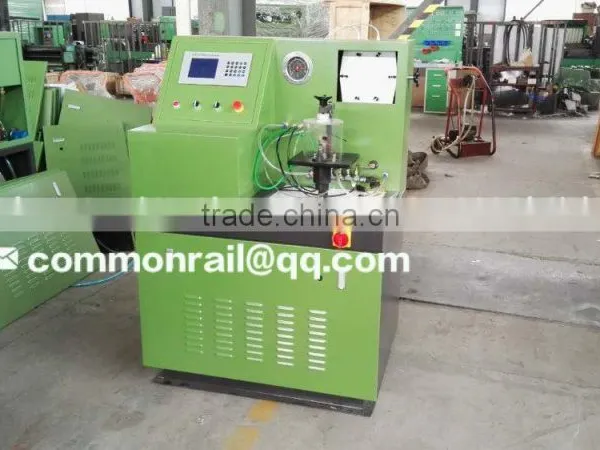

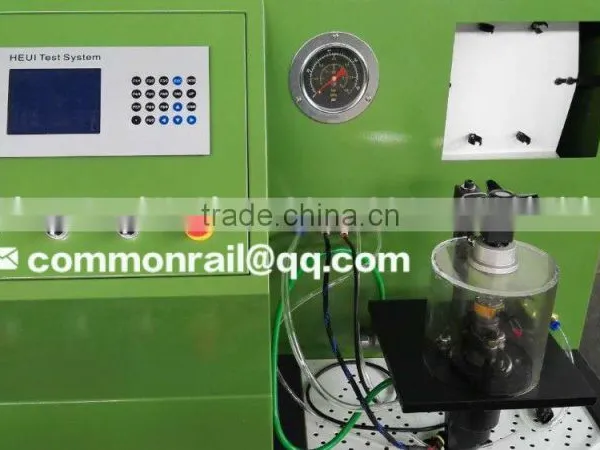

Help CenterCAT Injector Testing HEUI Injector Test Bench With CE Cerfication
Related Products
-
HEUI Injector Test BenchUS$ 300 - 4,000MOQ: 1 Set -
3408 HEUI Test BenchUS$ 2,000 - 2,500MOQ: 1 Set
-
New HEUI TEST BENCH FOR for CAT C7 C9US$ 2,000 - 3,000MOQ: 1 Set
-
New Style High-end Heui Injector Test BenchUS$ 2,000 - 2,500MOQ: 1 Set
-
HEUI Test Bench,test All Kinds of HEUI InjectorsUS$ 2500.00 - 2500.00MOQ: 1 Set
HEUI hydraulic pump test bench is controlled by industrial computer in real time, Windows operating system and touch screen .
Improve fuel economy & enhance performance
is designed to test up to four HEUI CAT C7/C9,CAT 3408 and so on HEUI Injectors., which are equipped on the following engines:
Navistar T444E, as Ford 7.3L Power Stroke Engines
Navistar DT466E
Navistar I530E
Caterpillar 3126B
Superiority
HEUI injector test bench Oil measurement, fuel temperature, lub. oil temperature, injection time, injection pulse frenquency are all with digital display. Lub. oil pressure is displayed by s pressure gauge. Clear display, stable work, high control accuracy. Drive signal can be adjusted, you will have a safe repairing maintenance.
Characteristics
1. Controlled by industrial computer at real time, Windows operating system;
2.Oil quantity is measured by sensor and displayed on LCD;
3.Injection drive signal pluse width and frequency is adjustable;
4.The drive signal’s percentage is adjustable;
5.Short circuit protection function;
6.The injection time or injection times of injector can be set by yourself;
7.Date can be searched and saved.
1.Test CAT C7,C9 and other HEUI Injectors.
2.Test the high-speed oil quantity of HEUI;
3.Test the medium-speed oil quantity of HEUI;
4.Test the cranking oil quantity of HEUI
HEUI injector test bench Technical data
Motor
10HP motor
Injector testing frequency
50~2000 rpm;
Injection time
1~100s
Lub. oil pressure
0~25Mpa;
Fuel pressure:
0~0.3 Mpa ;
nput power
AC 380V/50HZ/3Phase or 220V/60HZ/3Phas
Actuation Oil system
0-300bar,
.Fuel temperature
40°C;
.Lub. oil temperature
.40°C;
Test Oil Tank Capacity:
40L
Fuel Delivery Measurement
Counter Range
1~9999
Simple, User-Friendly Display and Mini-Key Pad
We are the leading manufacturer in Diesel Injection Pump Test Bench and Turbo charger in CHINA, already sold more than 100 Countries, include EUI/EUP tester with Cam box, EDC VP37 tester, VP44 teser,RED4 EDC, HEUI tester, DENSO ECD-V3,V4,V5 pump tester,PT Cummins Pumps and Injectors tester, Common Rail injectors and Common Rail Pump tester( CRDI) and Turbo Charger, Spare parts(plunger, nozzle, head rotor, injector...) also different model tools for pump and injector repair.
Manager: Jun gang hou
Mobile: +86-15864752393
QQ: 87982354
Skype: taianchina@
WhatsApp/WeChat/Viber: +86-15864752393
E-mail: commonrail@
