VP37 EDC PUMP TESTER for test VP37 bosch model pumps

OPERATING INSTRUCTION

1. Technical Data

1. Eletronic Power: 220V 50HZ

2. Output Power:

3. Data display: Light Four digital Nixietube

4. Control Range: 0-5000rmv

5. Advance angel valve control singal: DC12V 1.5A

6. Block oil valve control singal: DC12V 1.5A

7. Average good runing time: 15000 Hours

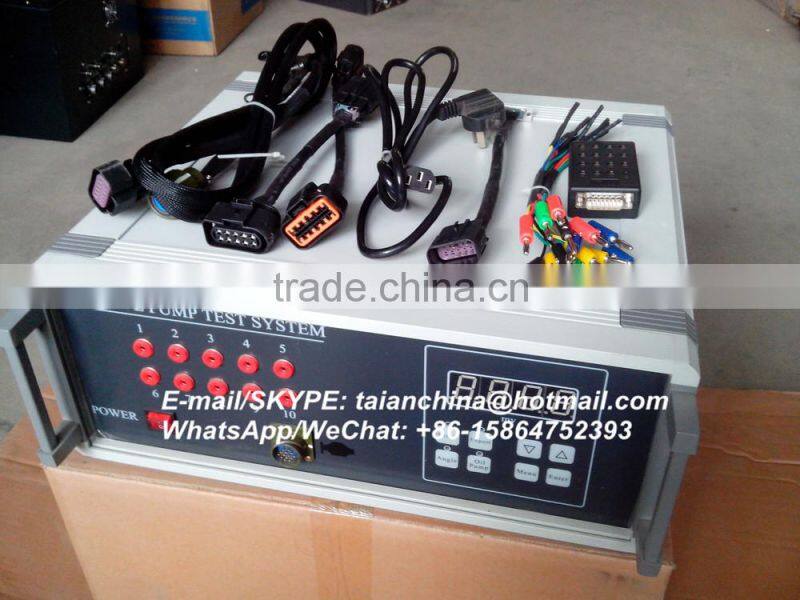

2. Button Instructions:

 There are total eight buttons, four of them are functions buttons: ( Switch, Export, Angel, and Oil Pump, other four buttons are Meau (Menu, Enter, ↑ and ↓)

1. 1.    “ switch ” is the key to switch display button. Normally, it show the actual tooth bar Value, singal lamp power off. Press it, singal lamp light, it show the Pre-set tooth bar value.
2. 2.     “ export” button is the key of controll the output. It can control voltage while VP37 pump rotating the eletromagnetic iron. Light effective.
3. 3.    “ angel” is switch of the advance angel eletromagnetic vlave.
4. 4.    “oil pump” is the switch of the block oil eletromagnetic vlave.
5. 5.    “menu” can enter or exit the menu setting.
6. 6.    “ enter” button is key to confirm, to confirm the parameters are effective input.
7. 7.    “↑” and “↓” is the increase and reduce buttons. It used for changed the Numerical value .

 Gurateen:1year, lifetime maintenance

We are the leading manufacturer in Diesel Injection Pump Test Bench and Turbo charger in CHINA, already sold more than 100 Countries, include EUI/EUP tester with Cam box, EDC VP37 tester, VP44 teser,RED4 EDC, HEUI tester, DENSO ECD-V3,V4,V5 pump tester,PT Cummins Pumps and Injectors tester, Common Rail injectors and Common Rail Pump tester( CRDI) and Turbo Charger, Spare parts(plunger, nozzle, head rotor, injector...) also different model tools for pump and injector repair.
