there are two types, one is digital controller.
one is computer controller, much suggestion choose digital controller . sophia ye- skype:cntestbench
l P= Injectors opening hold time. Set range: 1-9999 Unit (μs)
l F=Injectors opening frequency. Set range: 1-99 Unit (Hz)
l T=Injectors the amount of oil times 1-999(times), when T=0, the injectors will keep work all the time.
l Injector opening voltage. 12/80V can be optional.
Bosch, Denso. Injectors, suggest 80V, Delphi injectors suggest 12V.
l C button, to move the cursor.
l OK button, confirmed button, to confirm or enter parameters.
l 1-9 buttons, to set the parameters.
l When Menu show “DATA ENTRY”, it can set the parameters, if pressure the button “OK” , the menu will show “ STAR/ STOP” , press any button of the keyboard , “*” will begin to shine. Injectors begin to inject continuously.
l HEUI testing way:
1) To Install the HEUI on the fits for the coupling. Connect the pipes, please choose the 150V signal wires connect.
2) Adjust the diesel oil pressure to 2-3bar, Lubrication oil adjust to 0-300 bar based on the real request. Then open the HEUI solenoid valve, HEUI will begin to inject.
Attention: when testing the High pressure injectors, also fits for this machine. It just need change the Lubrication oil into Diesel.
Also we have new design of the HEUI, please see following attached photos.
Specifications
HEUI test bench
Application:

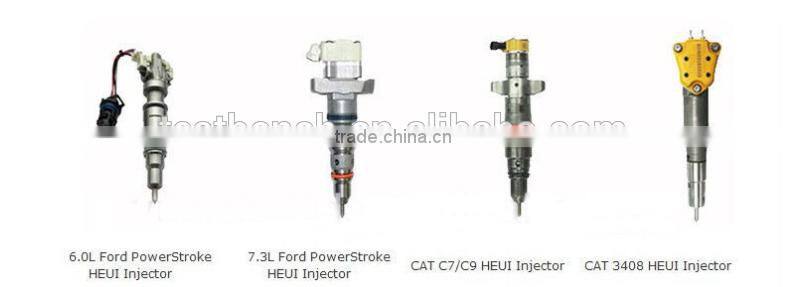

1.Navistar T444E, as Ford 7.3L Power Stroke Engines.
2.Navistar DT466E.
3.Navistar I530E.
4.Caterpillar 3126B.
1.Measurement fuel delivery of HEUI injectors.
2.Sealing test for injector upper seat of the solenoid control valve.
Motor |
10HP motor |
Actuation Oil system |
0-300bar, |
Test Oil Supply |
0-4bar |
Test Oil Tank Capacity: |
40L |
Temperature control |
Range: 10~50
Accuracy: +/- 1
Digital Display
|
Injection Quantity Measurement |
150ML glass tube |
Adjustable Range of Injection Pulse Width |
0~6ms |
Fuel Delivery Measurement Counter Range |
1~9999 |
Simple, User-Friendly Display and Mini-Key Pad | |
