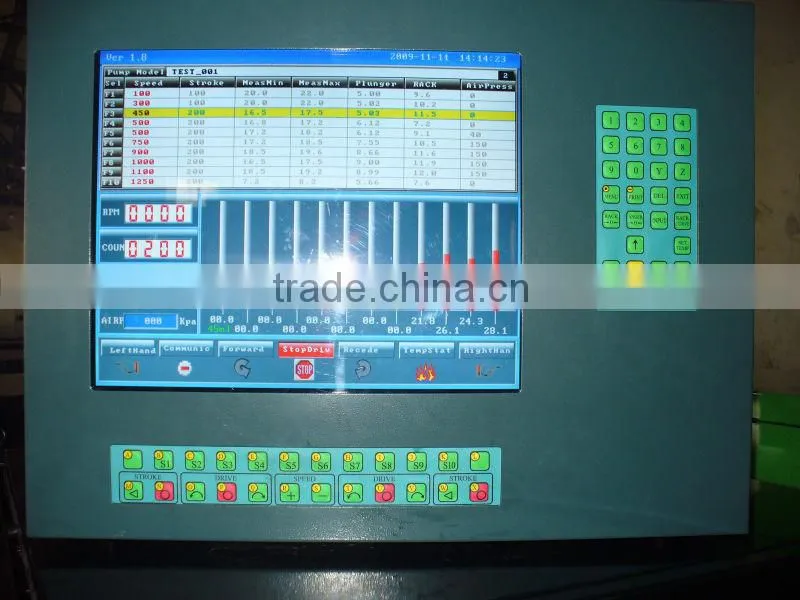

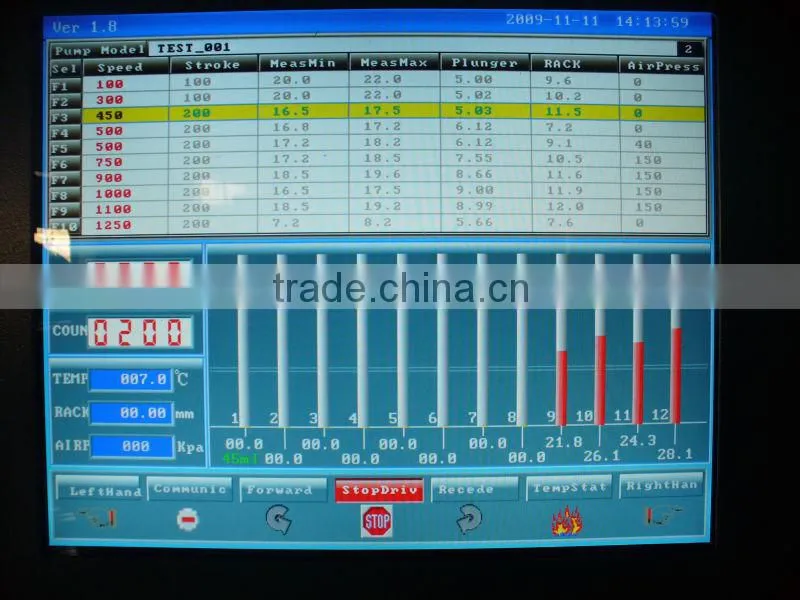

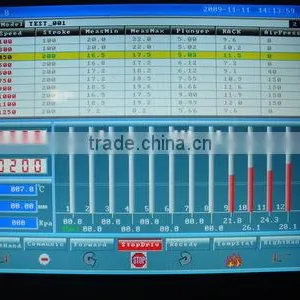

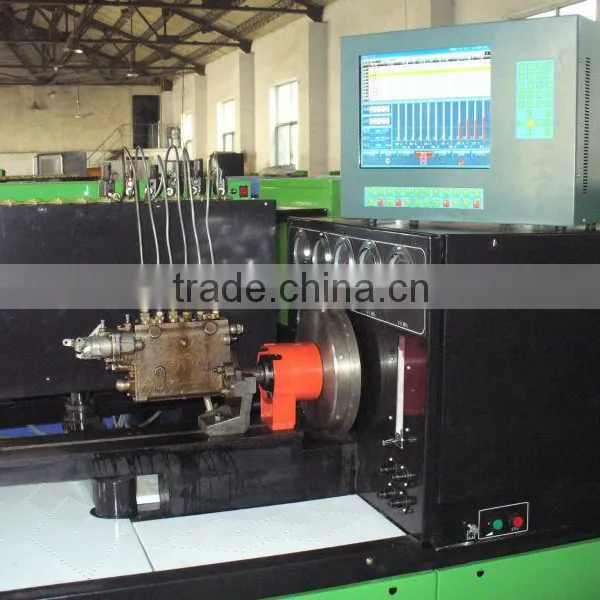

NTS815-- continuous fuel delivery analysis computerised measuring system for conventional and new diesel injection systems.The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing.It guarantees a high level of reproductivity of the measured valuse.
Main function
1.Measurement of each cylinder delivery at any speed.
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. .Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.(on request)
10. Checking the sealing of injection pump body
11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)
12. Checking the travel of stroke(on request)
13.oil lubricate (on request)
14. Foced cooler (on request)
Technical characteristic
Adjustable cylinders numbers |
Out power(Kw) |
RPM |
Rpm pre-set |
Temperature control system |
Positive pressure system |
Positive pressure system |
12 |
7.5 11 |
0-4000 |
√ |
√ |
√ |
√ |
Air supply |
DC power supply |
internal pressure of VE pump |
Oil return of VE pump |
travel of tooth bar |
Advanced angle |
Capability with pump type |
√ |
√ |
√ |
√ |
(On request) |
√(On request) |
All in- line and rotary pump |
We are the leading manufacturer in Diesel Injection Pump Test Bench and Turbo charger in CHINA, already sold more than 100 Countries, include EUI/EUP tester with Cam box, EDC VP37 tester, VP44 teser,RED4 EDC, HEUI tester, DENSO ECD-V3,V4,V5 pump tester,PT Cummins Pumps and Injectors tester, Common Rail injectors and Common Rail Pump tester( CRDI) and Turbo Charger, Spare parts(plunger, nozzle, head rotor, injector...) also different model tools for pump and injector repair.
