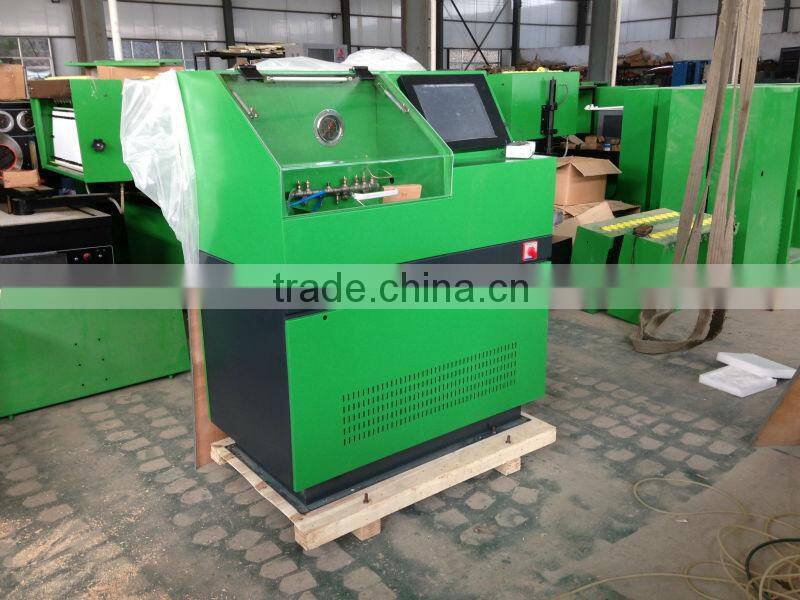

Hydraulic Electric Unit Injectors Test Bench/HEUI Test Bench

Hydraulic Electric Unit Injectors Test Bench/HEUI Test Bench thumbnail-1
Hydraulic Electric Unit Injectors Test Bench/HEUI Test Bench photo-1
US$ 1,000 - 1,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Certification:
ce/iso
Applicable Models:
auto car
Model Number:
HEUI
Contact Supplier Request Quote Chat Now
Taian Nantai Experimental Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Certification ce/iso
Applicable Models auto car
Model Number HEUI
Warranty 1 Years

Application

hydraulic electric unit injectors test bench/HEUI test benchhydraulic electric unit injectors test bench/HEUI test benchhydraulic electric unit injectors test bench/HEUI test benchhydraulic electric unit injectors test bench/HEUI test bench

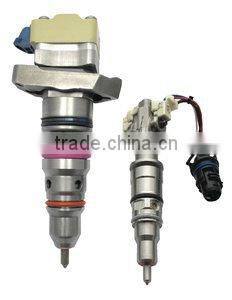

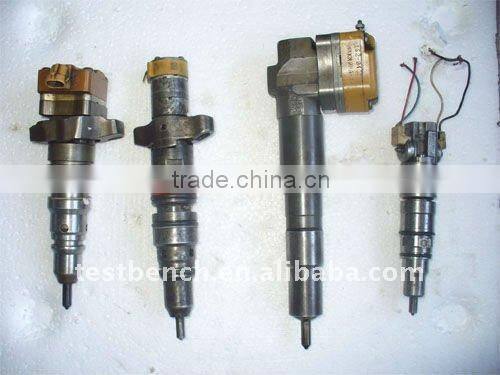

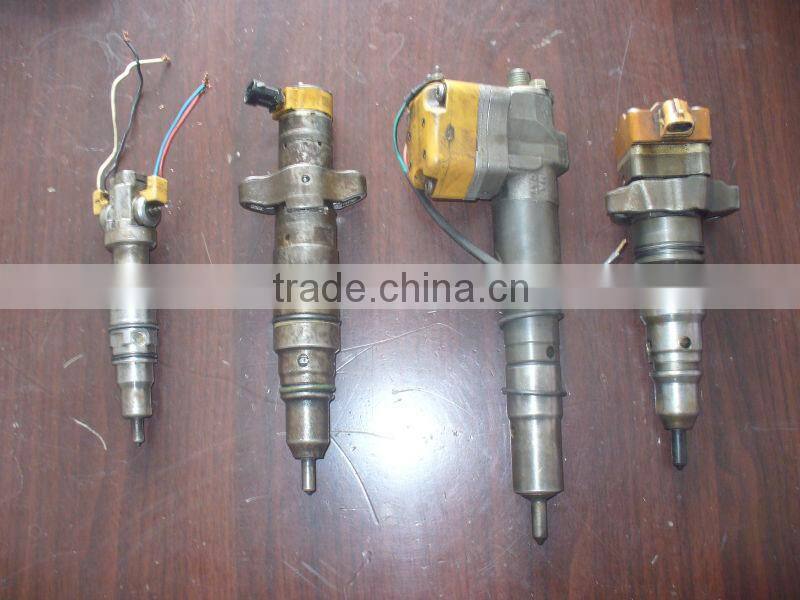

 test bench is designed to test up to four HEUI injectors, which are equipped on the following engines:



·         Navistar T444E, as Ford 7.3L PowerStroke Engines



·         Navistar DT466E



·         Navistar I530E



·         Caterpillar 3126B



  • Adapting Kits for Testing One Ford 6.0L PowerStroke Engine HEUI Injector



·         Adapting Kits for Testing One CAT C7/C9 HEUI Injector



·         Adapting Kits for Testing One CAT 3408 HEUI Injector



Function

·         Measurement fuel delivery of four HEUI injectors
·         Sealing test for injector upper seat of the solenoid control valve
Specification
·         AC Power: 3–Phase, 380V/50Hz or 230V/60Hz or 460V/60Hz
·         Drive System for Actuation Pump
  • 7.5kW AC Induction Motor
·         VFD(Variable Frequency Drive) Motor Controller
·         Actuation Pump
·         Pressure Range of Actuation Oil: 0~3000psi (0~210bar)
·         Low Pressure Test Oil Supply:0~60psi (0~4bar)
·         Test Oil Tank Capacity:10.5US gallons (40 liters)
·         Test Oil Temperature Control
·         Range: 30~50°C
·         Accuracy: +/- 1°C
·         Digital Display
·         Test Oil
·         The HUS-1001 is designed to run on single test oil for both oil injection and high pressure actuation to HEUI injectors.
·        The test oil should meet ISO4113 standard.
·         Injection Quantity Measurement:Two Groups of 4 Graduates,  45/150cc
·         Full Functioned HEUI Control Module
·         Test Oil Filtration: 5µm, Full Flow
Main Features of HEUI Control Module



Adjustable Range of Equivalent Engine Speed of Fuel Injection
0~4000 rpm
Adjustable Range of Injection Pulse Width
0~6ms
Fuel Delivery Measurement Counter Range
1~9999
Simple, User-Friendly Display and Mini-Key Pad




Optional Add-On and Accessories
·         Refrigerator type fuel cooler for fuel temperature control,
·         Adapting Kits for Nozzle Spray Pattern Analysis
·         Injector Assembly Tool Kits
·         O-Ring Sets





Company Information





We are the leading manufacturer in Diesel Injection Pump Test Bench and Turbo charger in CHINA, already sold more than 100 Countries, include EUI/EUP tester with Cam box, EDC VP37 tester, VP44 teser,RED4 EDC, HEUI tester, DENSO ECD-V3,V4,V5 pump tester,PT Cummins Pumps and Injectors tester, Common Rail injectors and Common Rail Pump tester( CRDI) and Turbo Charger, Spare parts(plunger, nozzle, head rotor, injector...) also different model tools for pump and injector repair.



Manager: Jun gang hou

(Skype: nantaichina-jungang hou)

Mobile: +86-15864752393

QQ: 87982354

(E- Mail/Skype:  taianchina@ )

WhatsApp: +86-15864752393

WeChat: +86-15864752393
