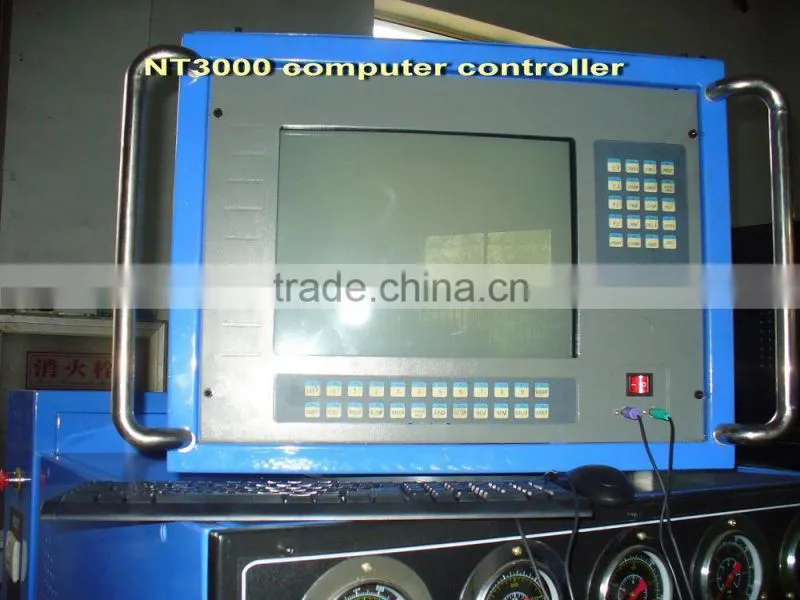

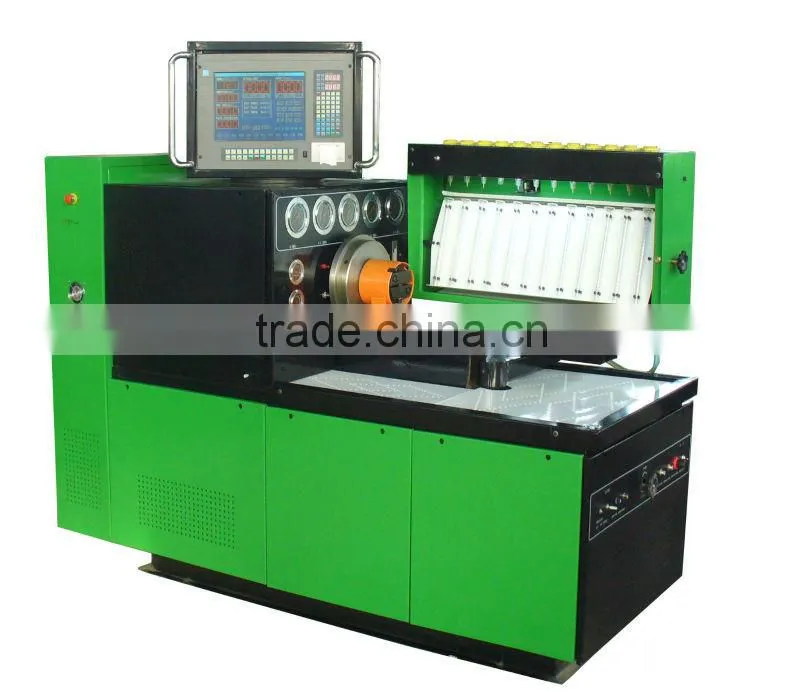

NT3000 is a kind of fuel injection pump test bench adopt industrial pc with color CRT, It's the newly researched production for the direction of high power and safety to the environment. It has human-machine interface, digital controlling of rpm, temperature, pressure, diesel fuel pump technical parameter and so on, and in pace with print. It easy and quick operates ,it's really human-machine dialog. This series test bench adopt high quality frequency conversing device and cast iron base supper size bed, and its distinguishing features are hi-stable character, hi-reliability, ultra-low-noise, perfect auto-protecting function and so on, It is advanced products.
Main function
1. Measurement of each cylinder delivery at any speed
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. .Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.(on request)
10. Checking the sealing of injection pump body
11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)
12. Checking the travel of stroke
13.oil lubricate(on request)
14. Foced cooller (on request
Technical characteristic
Adjustable cylinders numbers |
Out power(Kw) |
RPM |
Rpm pre-set |
Temperature control system |
Positive pressure system |
negative pressure system |
12 |
5.5 |
0-4000 |
|
|
|
|
|
Air supply |
DC power supply |
internal pressure of VE pump |
Oil return of VE pump |
travel of tooth bar |
Advanced angle |
Capability with pump type |
|
|
|
|
(On request) |
(On request) |
All in- line and rotary pump |
Packaging Detail: 2300x1100x1740 Gross Weight: 850.00 KG Package Type: standard export package
Dielivery: 3-5days
1year, lifetime maintenance
For details product or our anther products (common rail, EUI/EUP CAM BOX, DENSO, CUMMINS....) , feel free to contact me, please
EMAIL: dieselnantai@ (skype)
skype: nantaiwq
mob/whatsApp/Wechat: +86-15244106332
We are the leading manufacturer in Diesel Injection Pump Test Bench and Turbocharger in China, already sold more than 100 Countries, include EUI/EUP tester with Cam box, EDC VP37 tester, VP44 teser,RED4 EDC, HEUI tester, DENSO ECD-V3,V4,V5 pump tester,PT Cummins Pumps and Injectors tester, Common Rail injectors and Common Rail Pump tester( CRDI) ,Gasoline pumps and injectors tester and cleaner, Turbo Charger, and Spare parts(plunger, nozzle, head rotor, injector...) also different model tools for pumps and injectors repair. Hope to cooperate with you.
