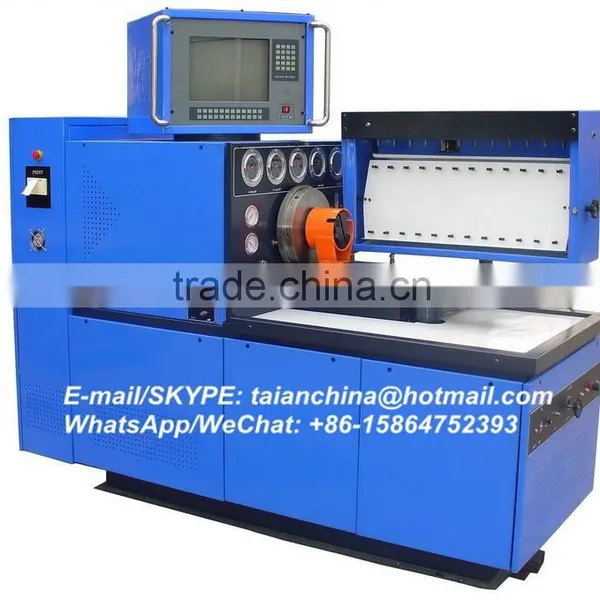

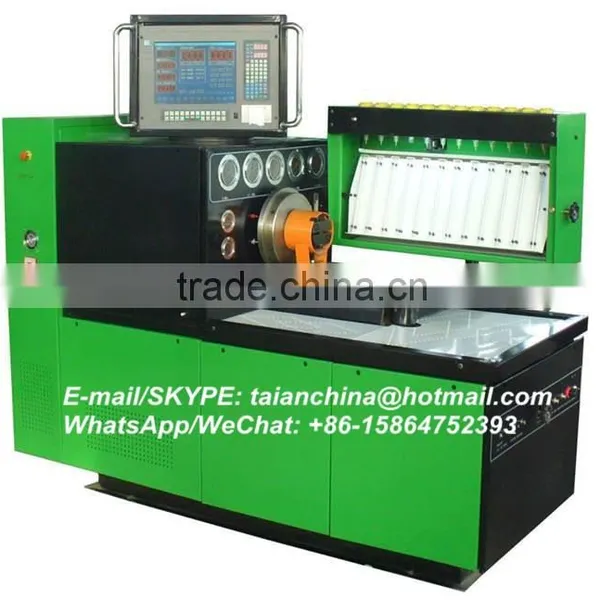

DIESEL FUEL INJECTION PUMP TEST BENCH(NANTAI-NT3000)/ TAIAN NANTAI
- 10000 Set / Sets per Month
- QINGDAO
- T/T Credit Card
- Professional universal auto diagnostic scanner FCAR F3-G Car & Trucks Universal Diagnostic Scanner
- Hot Sale Original vehicle diagnostic equipment Fcar F3-G professional car and truck universal car diagnostic tool
- Universal Truck Diagnostic Tool fcar F3-G diesel and gasolin car diagnostic scanner for Japan,korea,Europe,America Cars
- Original Multi-functional English/Russian Version Fcar Universal truck diagnostic tool 24V diesel truck diagnostic scanner
- used car diagnostic scanner F3-G Global Car and Truck Diagnostic Scanner
- Original Fcar F3-G Automotive Diagnostic Scanners for 12V+24V Cars and Heavy duty trucks
Product Details
Voltage: | 220V/380V | Power: | 7.5KW,11KW,15KW,18.5KW,22KW | Certification: | CE/ISO |
Applicable Models: | AUTO CAR | Brand Name: | NANTAI | Model Number: | NT3000 |
Warranty: | 1 Years |
Product Description
NT3000 series diesel fuel injection test bench is design for customer's require. This series test bench adopt digital controller, high quality frequency conversing device, and it has characteristic with hi-reliability, ultra-low-noise, energy save, high output torque, perfect auto-protecting function and operate easy. It is the kind of product with high quality and good price in our business.
Used for Bosch in line pumps of K,M,MW,A,B,BV,P(ZU,ZW,ZM) and BOSCH rotative distributor injection pumps EP/VA,EP/VM,VE….F…,also used for Chinese pumps such as Ⅰ,Ⅱ,Ⅲ,K,P7,BQ.etc.
Main function
1.Measurement of each cylinder delivery at any speed.
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. .Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.(on request)
10. Checking the sealing of injection pump body
11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)
12 Checking the travel of stroke (on request)
13.oil lubricate (on request)
14. Forced cooling (on request)\
Adjustable cylinders numbers | Out power(Kw) | RPM | Rpm pre-set | Temperature control system | Positive pressure system |
Positive pressure system |
12 | 7.5 11 | 0-4000 | √ | √ | √ | √ |
Air supply | DC power supply | internal pressure of VE pump | Oil return of VE pump | travel of tooth bar | Advanced angle | Capability with pump type |
√ | √ | √ | √ | √ | √ | All in- line and rotary pump |
We are the leading manufacturer in Diesel Injection Pump Test Bench and Turbo charger in CHINA, already sold more than 100 Countries, include EUI/EUP tester with Cam box, EDC VP37 tester, VP44 teser,RED4 EDC, HEUI tester, DENSO ECD-V3,V4,V5 pump tester,PT Cummins Pumps and Injectors tester, Common Rail injectors and Common Rail Pump tester( CRDI) and Turbo Charger, Spare parts(plunger, nozzle, head rotor, injector...) also different model tools for pump and injector repair.
