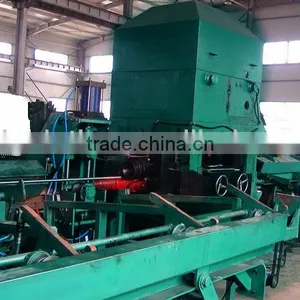

Low Price Machine

Name: Low Price Machine
Brand: haige
SKU: 104587685
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

haige

Model Number:

JY80

Yantai Haige Machine Tools Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO PORT

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name haige

Model Number JY80

Voltage 380v/440V

Power(W) 100KW

Dimension(L*W*H) 15.8mx5.5mx3.0m

Weight 26t

Certification ISO9001

Warranty One year

After-sales Service Provided Overseas service center available

Condition New

Specifications

1. straightening and calendar complete on time
2. frame structure, process stability
3. feeding speed fast
4. surface quality

Specification		JY80
Raw Material	Diameter Range(mm) (excluding drawingmaterial)	Tensile Strength σ_b≤450(M pa)		Φ20≤d≤Φ80(L ≥2000)
		Tensile Strength σ_b≤1000(M pa)		Φ20≤d≤Φ75(L ≥2000)
	Surface Hardness	≤HB380(≤HRC42)
	Straightness(mm/m)	Bright Steel ≤3
	Diameter Tolerance	Bright Steel≤IT10
	Circular Degree	d≤50	≤50% of diameter tolerance
		50<d≤80	≤65% of diameter tolerance
		d>80	≤70% of diameter tolerance
	Surface Roughness(Ra)	Bright Steel≤3.2mm~6.3mm
Finished Products	Straightness(mm/m)	Bright Steel≤0.40
	Diameter Tolerance	Bright Steel≤IT8
	Surface Roughness(Ra)	Bright Steel≤0.8μm
Roller Quantity (Pcs)		2
Roller Diameter (mm)		Φ335
Straightening Feeding Speed (m/min)		2~14
Main Machine Motor Power (KW)		45 X 2
Lifting Motor Power (KW)		3
Outline Dimensions (LengthWidthHeight) (for your reference)		Main Machine 8.7mX3.3mX3.2m Full Set(including auxiliary machine)15.8mX5.5mX3.0m
Weight (for your reference)		Main Machine 20.0 T Full Set(including auxiliary machine) 26.0 T
Total Capacity(for your reference) (KW)		100
Compressed Air Source(user prepare by themselves)		0.5~0.8MPa,3m³/min,two-stage oil-waterseparator
